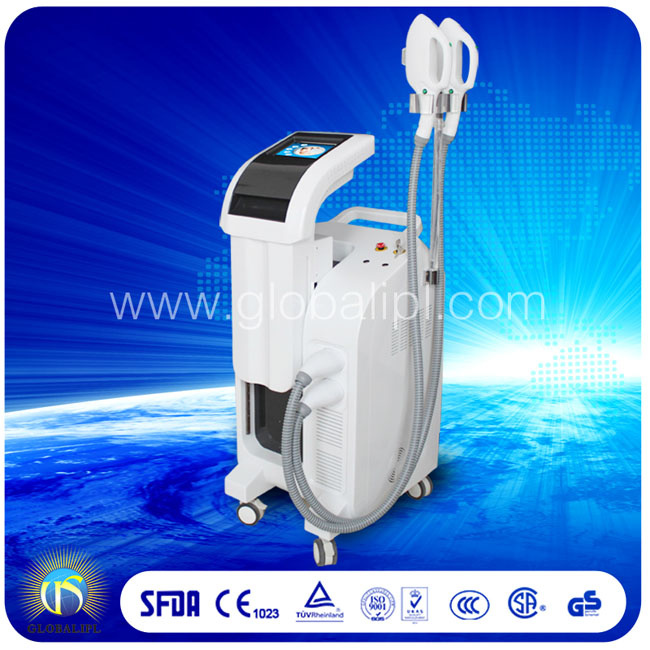

Multifunction Skin Care Hair Tattoo Removal Beauty Machine

Product Specifications

Prod Model:	US002H
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
System:	IPL Hair Removal
Apllication:	Skin Rejuvenation, Tattoo Removal, Hair Removal
Quality And Management Certificate:	(TUV) ISO13485
Certification:	Sfda, (Ukas)ISO9001
Certificate:	Prc Import & Export, Free Sales of Certification.
Certificate 01:	SGS
Certificate 02:	(TUV) ISO 9000
Display:	8.4 Inch Color Touch Screen
Energy Density:	1-50j/Cm2
Language Available:	English, Spanish, German, French, Italian, Turkish
Type:	IPL Skin Rejuvenation
Theory:	IPL
Application:	Salon
Portable:	Non Portable

Product Description

IPL Beauty Machine Hair Removal with unique rising up and down design (US002)



Applications:
1. IPL beauty equipment
2. Hair removal, depilation
3. Skin rejuvenation, photo rejuvenation
4. Skin tightening & lifting
5. Pigment removal, vascular treatment

Features:
1. Joint part adopts the most advanced plug and play technology, integrating the water and electricity protection automatically, makes installation more easy, safe and reliable.
2. Special technique, automatic energy adjustable system.
3. UL standard independently adjustable three kinds of pulses design, obeying the clinic ten years experiences.
4.7.4inch color touch screen. Humanized menu, easy operation.
5. Water level, water flow and water automatic detection greatly increases machines' life expectancy and safety.
6. Hand-touch, foot-touch and switches satisfy your different operating habits.
7. Multilingual arbitrary languages, anywhere in the world can be easily grasped.
8. Smart system clock makes the operator control the time easily.
Parameters:

Display 8.4 inch color touch screen
Multi-band hand-piece 640nm (480 nm/530nm/590nm/690nm)
Energy Density 1-50J/cm2
Language available English, Spanish, German, French, Italian
Frequency 1s, 2s, 3s, 4s
No. Of Pulse 1-6
Output Power 2500W
Size of Spot 8× 40mm2
Language available English, Spanish, German, French, Italian
Cooling semiconductor + water +wind cooling +cooling gel
Size 53x44x89cm
Net Weight 43KG
Voltage 220V (110V)/15A 50Hz (60Hz)

IPL system
IPL energy density:	1-50J/ cm 2
IPL Frequency:	1-4s
Pulse No.	1-6
Wavelength:	640nm standard
Spot size:	15*50 mm 2
E light system:
IPL energy density:	1-50J/ cm 2
RF energy density:	1-50J/ cm 2
IPL Frequency:	1-4s
Wavelength:	480nm,530nm,590nm,640nm,690nm standard.
Spot size:	13*30 mm 2 , 13*40 mm 2 optional
Bipolar RF system:
RF energy density:	1-50J/ cm 2
RF Frequency:	6MHz
RF delay:	100-1500ms
Interval:	1-4s
Spot size:	20/28/35m dia.
Nd-yag laser system:
Laser energy:	1600mj
Probe:	1064nm /532nm , (skin rejuvenation probe for optional)
Instruction light:	Imported infrared ray indicator
Pulse width:	6ns
Frequency:	1-6Hz
Spot Diameter:	4-8mm
Machine Specification:
Display:	8.4inch color touch LCD screen
Operation language:	English, Spanish, Deutsch, Italian, French, Turkish and OEM
Cooling system:	Japanese semiconductor+air+water+cooling gel
Output power:	2500W
Voltage:	220v(110v)/15A 50Hz (60Hz)
Machine size:	44*53*89cm
Package size:	57*68*107cm
Gross weight:	68kg

Advantage
1, Prefect design: It can free to up and down the control system to 25cm, It can be portable and vertical.
? Big power supply 2500W, it can cover heavy work time more than 8-12hour.
? Perfect cooling system: Japanese semiconductor + water + air + cooling gel, and the skin temperature
-3-10 ºC
? USA crystal gem, It make sure the shot pulse 99.9% purity quotient.
? Low cost with highest quality. US002H is highest quality of China, It can compare with any country of European, but the price is much less than those countries
2,perfectly locked tube and connectors avoid any damage of the inner wires when pulling hardly.
humanized bending design, maximum protect inner cable avoid from vertical fold, and water flow even
smooth for better cooling.
USA CPC water connector (USA) & Germany Hating Electronic connector.
US002H is a 4 in 1 machine, combined with IPL+e-Light+Bipolar RF+Nd-Yag laser. Which can do Hair
removal, skin rejuvenation, wrinkle removal, skin tightening, pigment therapy, vascular therapy, breast liftup assistant, tattoo removal.

IPL system
IPL energy density:	1-50J/ cm2
IPL Frequency:	1-4s
Pulse No.	1-6
Wavelength:	640nm standard
Spot size:	15*50 mm2
E light system:
IPL energy density:	1-50J/ cm2
RF energy density:	1-50J/ cm2
IPL Frequency:	1-4s
Wavelength:	480nm,530nm,590nm,640nm,690nm standard.
Spot size:	13*30 mm2, 13*40 mm2 optional
Bipolar RF system:
RF energy density:	1-50J/ cm2
RF Frequency:	6MHz
RF delay:	100-1500ms
Interval:	1-4s
Spot size:	20/28/35m dia.
Nd-yag laser system:
Laser energy:	1600mj
Probe:	1064nm /532nm , (skin rejuvenation probe for optional)
Instruction light:	Imported infrared ray indicator
Pulse width:	6ns
Frequency:	1-6Hz
Spot Diameter:	4-8mm
Machine Specification:
Display:	8.4inch color touch LCD screen
Operation language:	English, Spanish, Deutsch, Italian, French, Turkish and OEM
Cooling system:	Japanese semiconductor+air+water+cooling gel
Output power:	2500W
Voltage:	220v(110v)/15A 50Hz (60Hz)
Machine size:	44*53*89cm
Package size:	57*68*107cm
Gross weight:	68kgs

Feature
1. Multifunction in one equipment, integrates with IPL + RF + E Light + ND YAG LASER 4 systems,
which with 4 handpieces together.
2. PORTABLE DESIGN, make your operation much convenient, easy carry away anywhere; It's
Also the first smart design in market. The components imported from USA, Japan.
3. Convenience:
A. User friendly software means that operator error is drastically reduced
B. Internal modular design, easy installation and maintenance
C. Multi-software languages, easy your operations
D. 8.4" color touch LCD screen, all parameters setup can be finished easily here
E. Big spot size: fast and painfree hair removal.
4. 4 handpieces:
A. IPL handpiece: 15x50mm big spot size design for instant hair removal professionally
B. E Light (IPL&RF) handpiece: Professional design, can prolong its using life twice or 3 times than
traditional handpiece
C. RF handpiece: Big and small treatment probes facility different area treatment, comfortable and
painless
D. ND YAG LASER handpiece: 100% American imported "plug and play" connections, translate into
reliable and long lasting machines capable of continuous work in busy clinic/salons, also easy your maintenance
