| Price: | US $ 8500-11000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ELE 1325 |
|---|---|
| Voltage: | 380V/220V, 3phase, 50/60Hz |
| Working Area (L*W*H): | 1300*2500*350mm |
| Spindle: | 3*3kw Changsheng Water Cooling Spindle |
| Inverter: | 3.7kw Fuling Inverter |
| Motor: | Mixed Servo Motor |
| Lubrication System: | Automatic |
| Transmission: | Taiwan Tbi Ball Screw |
| Controll System: | Pm95A-3L |
| Table Surface: | T-Slot & Vacuum Work Table |
| Control Box: | Separate Computer Control Box |
| Spindle Layout: | Vertical |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | SGS BV TUV |
| Spindle Number: | Three Spindles |

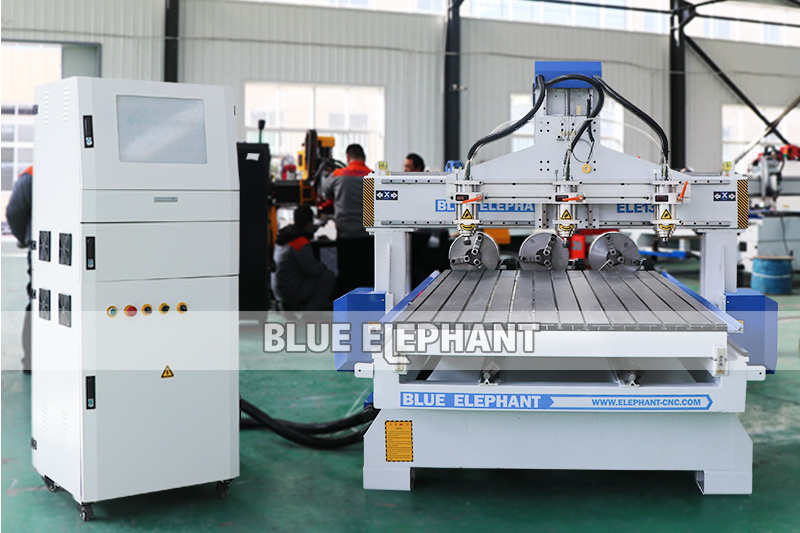

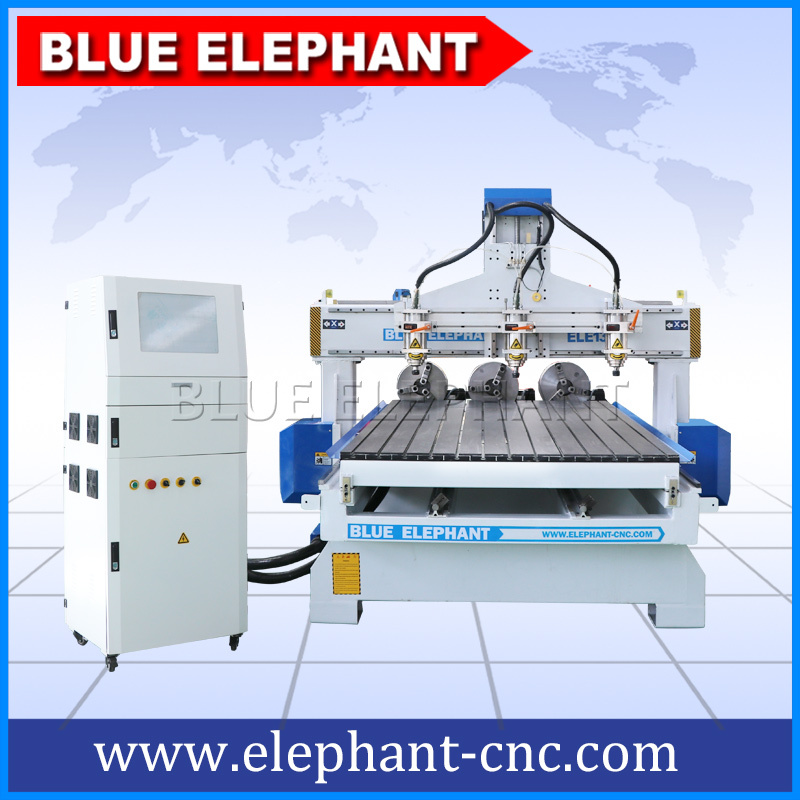

Multi Spindles 1325 Cnc Router with 3 Rotary Device CNC Machine Used to Make Furniture
Advantages:
-----The T-slot working table can be disassembled.
------ Total with three water cooling spindles, can be working in the same time.
-----New type thicker and bigger heavy duty welded frame and gantry.
Features:
T-slot and vacuum working table
Seperated control box

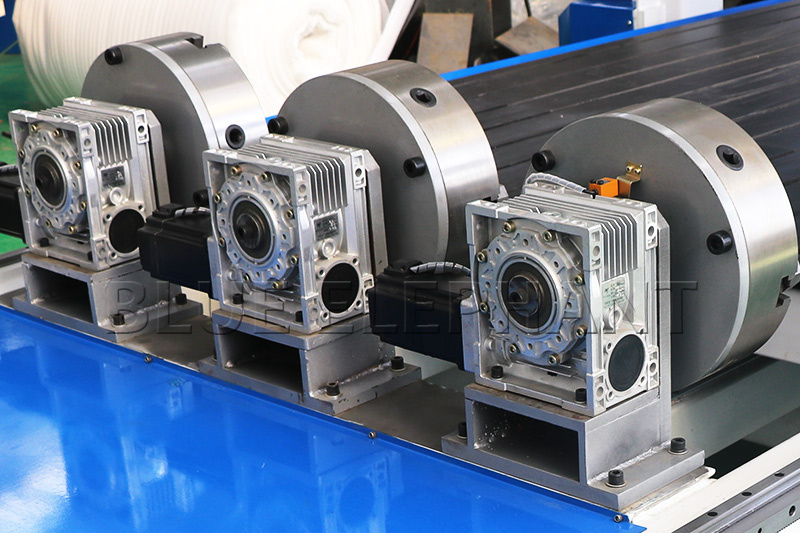

Main parts:
Technical Parameters:
Number | Description | Parameter |
1 | X,Y,Z Working Area | 1300*2500*350mm |
2 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
3 | X,Y,Z Repositioning Accuracy | ±0.03mm |
4 | Table Surface | T-slot & vacuum work table |
5 | Spindle | 3*3kw Changsheng water cooling spindle |
6 | Z Structure | Taiwan Tbi Ball Screw |
7 | Motor | Mixed Servo Motor |
8 | Max. Rapid Travel Rate | 45000mm/min |
9 | Max. Working Speed | 30000mm/min |
10 | Spindle Speed | 0-18000RPM |
11 | Lubrication system | auto |
12 | Inverter | 3.7kw Fuling Inverter |
13 | Command Language | G Code |
14 | Control System | PM95A-3L |
15 | Computer Interface | USB |
16 | X,Y Resolution | <0.01mm |
17 | Software Compatibility | Type3 Software, (Option: Artcam Software) |
18 | Running Environment Temperature | 0 - 45 Centigrade |
19 | Relative Humidity | 30% - 75% |

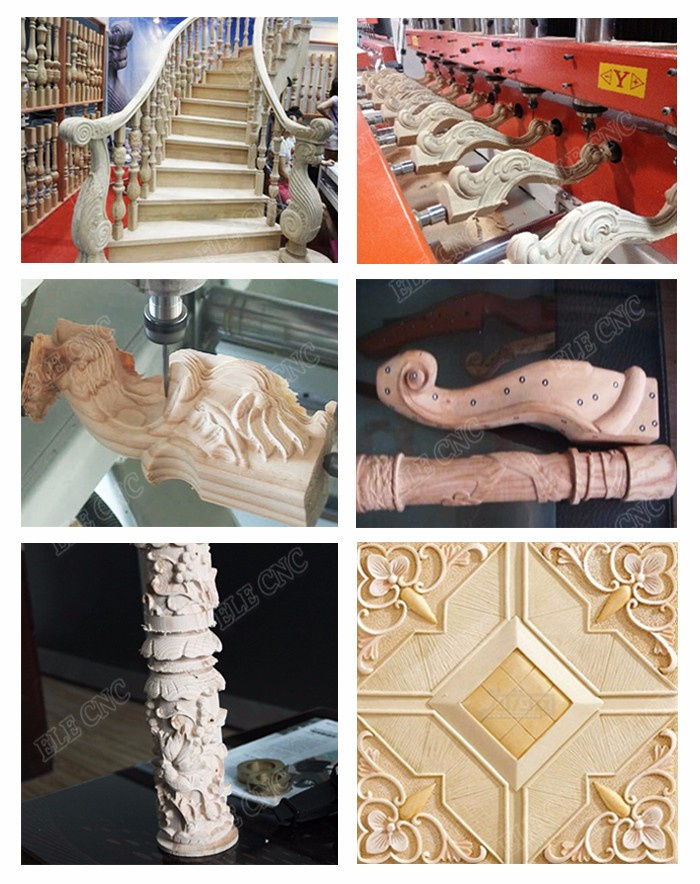

Applications&Samples:
1.Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.
Packaging and shipping:
1.Outside Package:Standard export wooden case .
