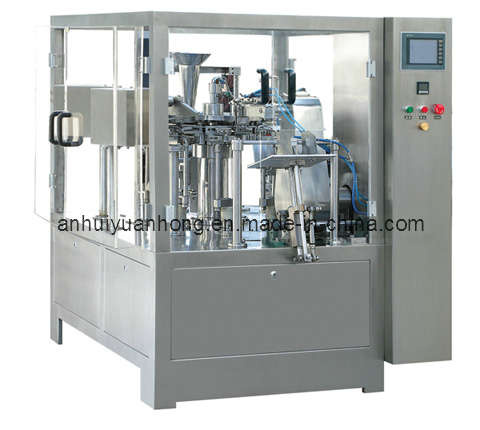

Product Specifications
| Prod Model: |
MR6-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Station: |
6 Parts |
| Automatic Grade: |
Automatic |
| Application: |
Cleaning, Detergent |
| Driven Type: |
Pneumatic |
| Packaging Material: |
Plastic |
| Material Type: |
Powder, Granule |
| Packaging Type: |
Bag |
Product Description
1. Solid Species: Candy, peanut, green bean, pistachio, crystal candy, brown sugar, cookie, cake, daily commodities, cooked food, pickles, puffed food etc.
2. Granule Species: Grain, refined monosodlum glutamate, granular drug, capsule, seed, chemistiy condiment, granulated sugar, chicken essence, melon seeds, nuts, pesticide, fertilizer, feed etc.
3. Powder species: Milk powder, grape sugar, washing powder, chemistry condiment, refined sugar, pesticide, fertilizer etc.
4. Liquid Species & Thick liquid Species: Detergent, millet wine, soy sauce, vinegar, fruit juice, drink, tomato sauce, peanut butter, Jam, chili sauce, bean sauce etc.
5. Materials that can pack in bag.
Features & characteristics:
1. The packaging of machine is In extensive packing material range, only need to set up different supplies and choose different measurement to be filled with the device.
2. The packing bag suits in extensive range, suit for multi-layer compound prefabricatlon bag made by film and paper.
3. Change the specification of the wrapping bag rapidly, the automatic given bag device is width can easy adjust by adjustment of the handles.
4. The spare parts on the machine which touch the product or packing bag adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food.
5. This machine can check there is no packing article or wrapping bag not to open, make sure the filling device and hot sealing device no work(option), this avoid wasting packing materials and raw materials.
6. The packing materials loss low, what this machine is used is to prefabricate wrapping bag, the wrapping bag pattern is perfect, it is of high quality to seal, this improved the product specification.
7. Frequency conversion adjusts the speed, this machine uses frequency conversion to adjust and fit rapidly, can be adjusted within the range according to the needs of reality in production.
8. Easy to operate, adopt advanced PLC to add POD (the touch-sensitive screen) electric control system, the man-machine interface is friendly.
9. RD8-200 have two filling devices & two hot sealing devices. Fill more kinds of materials.
Main Standard Accessories Main Optional Accessories
1. Date coder
2. PLC controller
3. Pouch open guide with open detector
4. Consolidate device
5. Cylinder
6. Temperature controller
7. Valve
8. Vacuum pump
9. Frequency converter
10. Output conveyor
| packing speed | 10-30bags/min |
| packing accuracy | ± 1% |
| packing range | 100-1000g |
| power supply | 220V /380V 1kw |
| machine gross weight | 800kg |
| Scope of applicatic | granule/powder/liquid |
| | |
