| Price: | US $ 1.5-2.516 |
|---|---|
| Min Order: | 100016 |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | 3A |
|---|---|

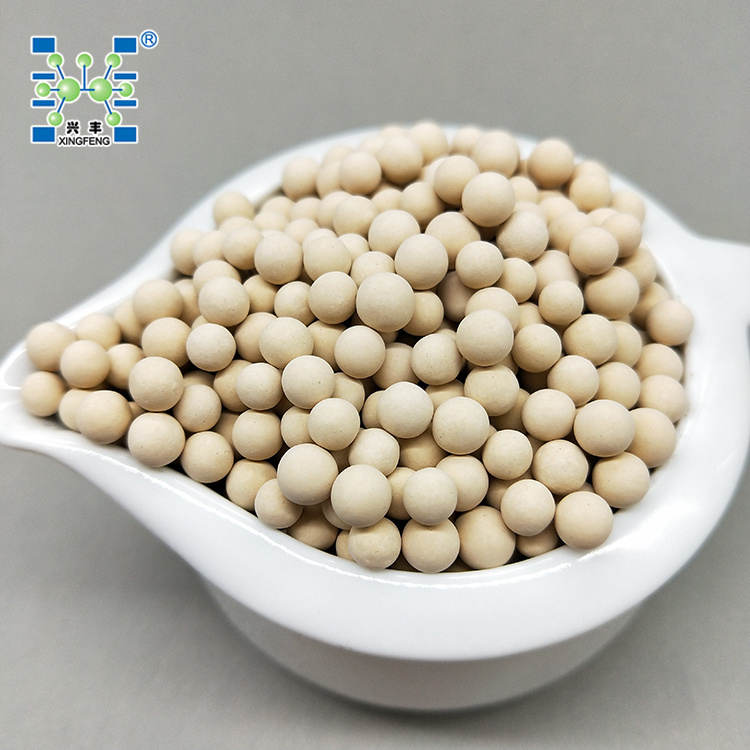

| Shape: | Sphere |
| Sorbent: | Molecular Sieves |
| Desiccant: | Chemical Desiccant |
Molecular Sieve type 3A is an alkali metal alumino-silicate; it is the potassium form of the type A crystal structure. Type 3A has an effective pore opening of about 3 angstroms (0.3nm). This is large enough to allow in moisture, but excludes molecules such as unsaturated hydrocarbons which can potentially form polymers; and this maximizes lifetime when dehydrating such molecules.
Typical Chemical Formula
0.4K2O 0.6Na2O Al2O3 2.OSiO2 4.5H2O
SiO2 : Al2O3 ≈2
Technical Parameter
Item | Unit | Technical data | |||
Shape |
| Pellet | Sphere | ||
Diameter | mm | 1.5-1.7 | 3.0-3.3 | 1.7-2.5 | 3.0-5.0 |
Size ratio up to grade | % | ≥98 | ≥98 | ≥98 | ≥98 |
Bulk density | g/ml | ≥0.65 | ≥0.65 | ≥0.70 | ≥0.70 |
Wear ratio | % | ≤0.20 | ≤0.25 | ≤0.10 | ≤0.10 |
Crushing strength | N | ≥45/cm | ≥60/cm | ≥30/p | ≥70/p |
Static water adsorption | % | ≥20 | ≥20 | ≥20 | ≥20 |
Ethylene adsorption | % | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 |
Water content, as shipped | % | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
Typical Application
Drying of unsaturated hydrocarbons (e.g. ethylene, propylene, butadien)
Cracked Gas Drying
Drying of natural gas, if COS minimization is essential, or a minimum co-adsorption of hydrocarbons is required.
Drying of highly polar compounds, such as methanol and ethanol
Drying of liquid alcohol
Static, (non-regenerative) dehydration of insulating glass units, whether air filled or gas-filled.
Drying of refrigerants
Regeneration
Molecular sieve Type 3A can be regenerated by either heating in the case of thermal swing processes; or by lowering the pressure in the case of pressure swing processes.
To remove moisture from a 3A molecular sieve, a temperature of 200-230°C is required. A properly regenerated molecular sieve can give moisture dew points below -100°C.
The outlet concentrations on a pressure swing process will depend on the gas present, and on the conditions of the process.
Size
3A - Zeolites are available in beads of 1-2 mm, (10x18 mesh) 2-3 mm, (8x12 mesh) , 2.5-5 mm, (4x8 mesh) and as powder, and in pellet 1.6", 3.2".
Attention
To avoid damp and pre-adsorption of organic before running, or must to be reactivated.

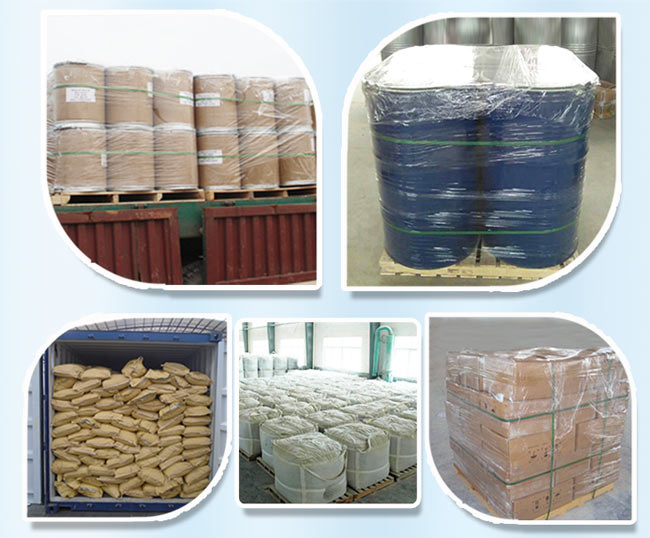

| Package Type | Container Load Capacity | Delivery time | Quality Insurance | |
| 20 GP | 40 GP | |||
| Steel drum, 150kg/drum | 12000 kg | 24000 kg | Within 7-10 days | Chinese National Standard; Offer quality assurance as request. |
| Paper drum, 25kg/drum | 9000 kg | 18000 kg | ||
| Paper box, 25kg/box | 13500 kg | 27000 kg | ||
