Product Specifications
| Prod Model: |
CK0632A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Cast Iron |
| Place Of Origin: |
China |
| Processing Type: |
Metal |
| X,Z Motor Type: |
Servo Motor |
| Power Supply: |
Three Phase 380V/50Hz |
| Warranty: |
1 Year |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Single-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
Product Description

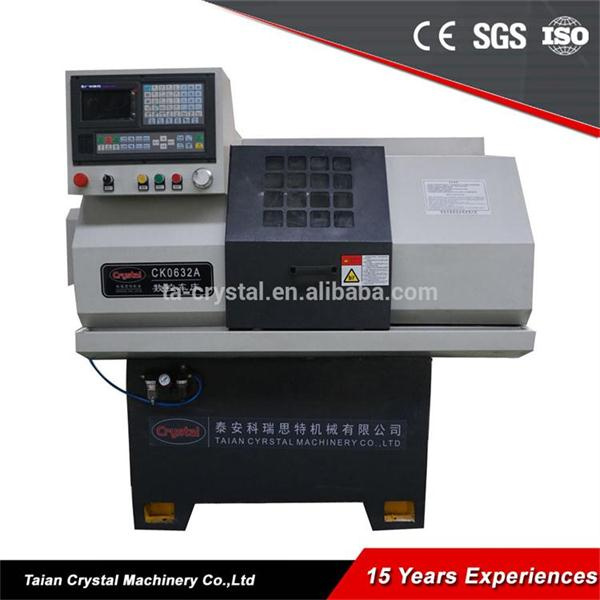

CK0632A CNC Lathe Product Description A. Standard Configuration 1.GSK-928TDL
2. Pneumatic spring clamp head
3. Horizontal structure
4. Gang type tool carrier
B. Features and Specification of Lathe MachineCK0632A CNC lathe used mechanical and electrical integration design, have beautiful shape, reasonable structure, convenient operation, wide applications,
convenient operation, a machine can realize until advantage, multiple products
a circular/end face/hole/cutting/any cone/sphere and various metric system of
automatic thread cutting, with perfect S/T/M function, can give and receive
multiple signal, automatic control processing program.
The base of the machine is wide enough, and the structure of the lead rail is reasonable, andthe headstock was designed with radiator, which can improve the stability of the machine and the spindle effectively.
Both the back and forth bearings of the spindle are the accurate angular contact bearings, which can load and have the best stability.
The lead rail is made from cast iron and treated by the super audio quenching, to ensure the stability, accuracy and service life.
The X-axis is designed of 4 points a line and the Z axis is designed of 3 points a line to ensure the stability and not affected by the side force.
The Z-axis rail is designed closely, to protect the rail when it is operated
Items |
Specifications |
Spindle bore |
φ35/49mm |
Max. swing over bed |
Φ300mm |
Max. swing over carriage |
φ130mm |
Z-axis max length of work piece |
250mm |
X- axis max motion traveling schedule |
550mm |
X-axis fast moving speed |
6000mm/min |
Z- axis fast moving speed |
8000 mm/min |
X-axis feed rates |
1~2000mm/min |
Z- axis feed rates |
1~1800mm/min |
Range of spindle speed |
50~2500rpm |
Thread machining scope (metric system) |
0.25~12mm |
Thread machining scope (British system) |
28~3 1/2 |
Stations of tool carrier |
gang-type tool carrier |
Power of the main drive motor |
3/4KW |
Overall dimensions(L×W×H) |
1350×920×1450 |
Net weight |
650 kg |
