Product Specifications
| Prod Model: |
WER-3050SC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Area: |
300*500mm |
| Laser Power: |
40W/ 60W |
| Cutting Depth: |
Acrylic 10mm |
| Engraving Speed: |
0-400mm/S |
| Cutting Speed: |
0-400mm/S |
| Resetting Positioning Accuracy: |
Max 0.1mm |
| Power Supply: |
AC220V(110V)±10% 50Hz |
| Data Form Supported: |
CDR, Ai, BMP, Plt, Dxf, Dst, Dwg, Dsb |
| Working Temperature: |
0-45°c |
| Gross Weight: |
80kgs |
Product Description

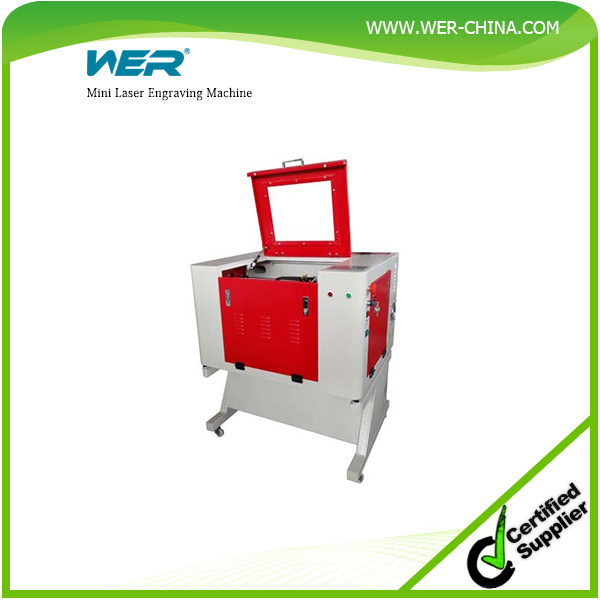

Mini Laser Engraving Machine
With up and down worktable, Simple frame and elegant appearance,
it is easy to operate and can process many kinds of arts and crafts with different sizes.
Applicable Material
Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Main parameters
| Type | WER-3050SC |
| Engraving Area | 300 * 500mm |
| Laser Power | 40W/ 60W |
| Driving Method | Step Motor |
| Cutting depth | Acrylic 10mm |
| Engraving speed | 0-400mm/s |
| Cutting speed | 0-400mm/s |
| Minimum Shaping Character | English 1.5*1.5mm, Chinese 2.5*2.5mm |
| Resetting positioning accuracy | Max 0.1mm |
| Power supply | AC220V(110V)±10% 50HZ |
| Working Temperature | 0-45°C |
| Circulating water temperature | 5-25°C |
| Water cooling | Yes |
| Data form Supported | CDR, AI, BMP, PLT, DXF, DST, DWG, DSB |
| Communication Interface | USB2.0 |
| Recommended Spare Parts | Laser Tube |
| Machine size | 1160*700*460mm |
| Packing dimensions | 1280*830*600mm |
| Gross Weight | 80kgs |
Features:
Adopts RECI laser tube: glass tube 80W/100W
CE/FDA certificate
Full sealed laser optic system, high efficient beam transfer, easy maintenance
Equipped with the imported mirror and lens, ensure the best cutting effect
Strong and stable mechanical structure which makes moving speed, stability, precision greatly enhanced, the max speed can reach 15m/min
It adopts the International standard linear guide rail, which makes machine running more smoothly and accurately.
Multi-protection function ensures the movement security and personnel safety.
Adopts Stepper motor System: little inertia & good dynamic performance.
Industrial water cooling system ensures good performance and stability.
Windows interface that supports DXF, PLT, AI, BMP file formats
