Product Specifications
| Prod Model: |
HSGP-3KD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
Small Power |
| Drive Type: |
Hybrid Servo Drive |
| Engraving Machine Type: |
Laser Engraving Machine |
| Control: |
Automatic |
| Current: |
AC |
| Laser Type: |
Semiconductor |
| Usage: |
Glass |
| Certification: |
SGS, Ce, ISO 9001 |
Product Description

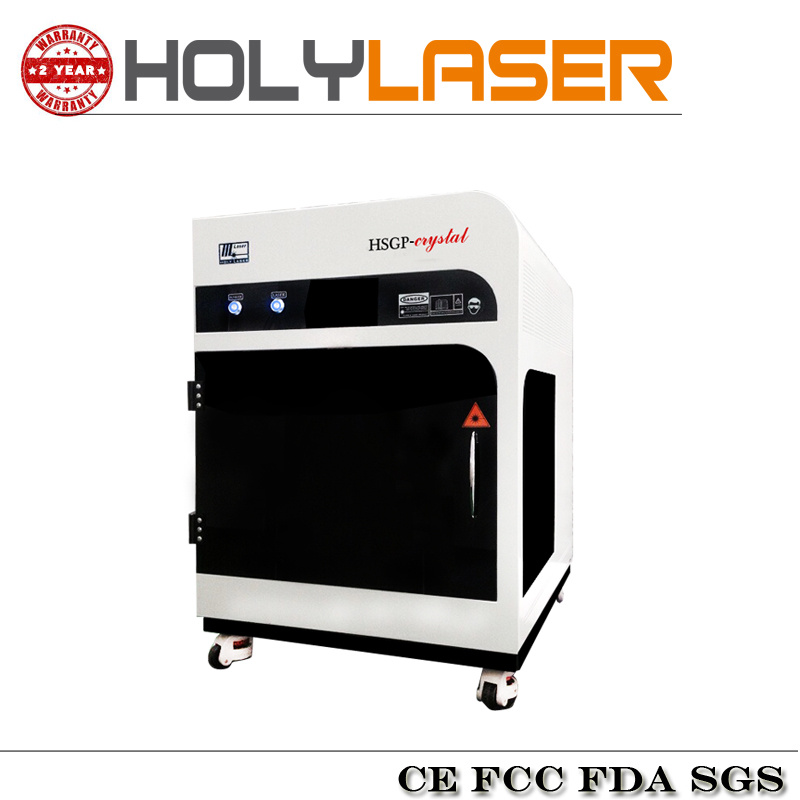

Mini laser engraving machine, 3D crystal laser engraving machine
Applicable Area:
Our HSGP-3KD mini laser engraving machine, 3D crystal laser engraving machine is a high resolution laser engraving machine, is really a fine processing machine with advantages of high fidelity and high stability, which is definitely suitable for fine model engraving processing centers, gift shops, craft shops, photo printing shops, wedding photography, souvenirs, personalized gifts shops, etc.
Suitable material:
Our machine is suitable for engraving inside of the crystal cube, common glass. Transparent acrylic, and also can marking on surface of metal and hard plastic.

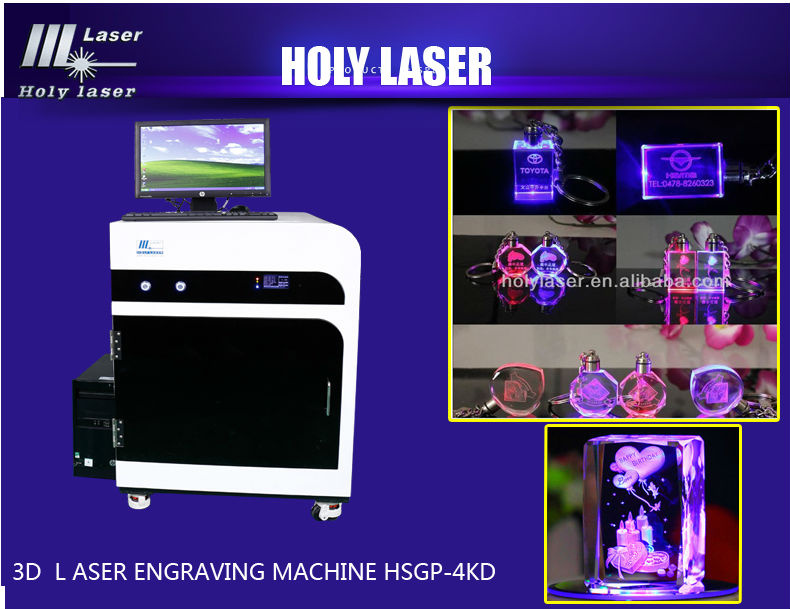

Description for mini laser engraving machine, 3D crystal laser engraving machine(HSGP-4KD)
Crystal laser engraving, laser marking machine(HSGP-3KD) adopts industrial design, which can engrave one big block of crystal or several small blocks at the same time. Its products can give person crystal-clear and fine noble visual image, that' s elaboration for your home decoration
Advantages:
1. CE, FCC, FDA approved,
2. This machine can engraving both 2D and 3D, (depends on your design).
3. Our machine good for quantity production.
4. With newest laser, high speed 220000dots/min.
5, Our machine also good for big size engraving as big as 150*200*80mm
Factory Profile:
Supported by the Yiwu City Government
Cooperate with the Zhejiang University, update for technology
We are the manufacturer, our price are more competitive.
With 13 years history on researching and producing all kinds of laser machine
Our company welcomes AGENTS all over the world
After-sale service:
Two years guarantee period for product quality. (man made damaged is negotiable).
Lifelong maintenance and spare parts supply.
Free design of fixtures as customers required.
Free training for machines installation and operation of the staffs.
Free samples marking of customer provided.
Warmly welcome you visit our factory! ! !
Warmly welcome you contact us directly for more information! ! !
| model | HSGP-3KD |
| laser wavelength | 532nm |
| laser frequency | 4000HZ |
| max pulse energy | 1.2mj |
| laser power | 3w |
| Q-mode | acousto-optic-Q |
| pulse width | 7ns |
| beam quality | M2<1.5 |
| max engrave speed points | 180000DOTS/MIN |
| max marking scope | 150*200*80MM |
| laser head | one |
| resolution | 800DPI-1200DPI |
| focal length | 100MM |
| focus diameter | 0.02mm |
| cooling | air cooling |
| application materials | crystal glass etc |
| device input power | AC220V±10% 50-60HZ |
| machine weight | 130KG(with computer) |
| machine size | 50*65*78 cm |
| size after packing | 98*95*58cm after packing |
Zhejiang Holy Laser Technoloy Co., Ltd, is a factory Located in YiWu City, ZheJiang Province. We specialize in: 3D laser machine, Large size glass engraving machine, Laser marking machine, Laser cutting machine, etc.
We are here because we are qualified for serving you by the bellow advantages:
1, We can supply machine in 7-10days once you confrim the order.
2, We supply complete service: Machine, design, crystal and LED base factory info. Design for free, technology support for all liftime, training for free.
3, We have our own factory garden that more than 1600squre meter. Wihch suport by government in yiwu economic development zone.
4, All our productions with CE, FCC, FDA, SGS, TUV certification s. Cause suitable for all city in the world.
5, We also have our son desiner team which have more than 15 years experience. Can supply you 2D or 3D desing with your special photo or supply beautiful design in tock.
You are always welcome to visit our factory in any time, , you are here not just our customer, most important is we are friends.
