Product Specifications
| Prod Model: |
SI-SM-FREESUB |
| Type: |
Sublimation |
| Plate: |
Heat Press |
| Structure: |
Heat Transfer |
| Color & Page: |
3D Heat Press Machine |
| Printing Speed: |
High Efficiency/Multi-Function |
Product Description

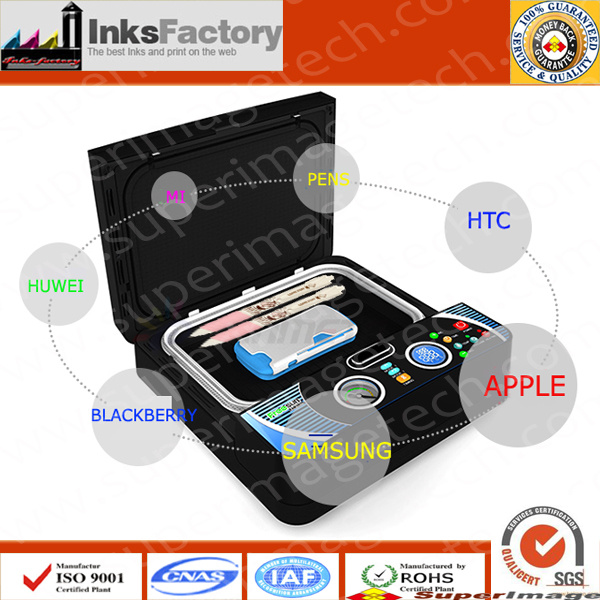

Products Name: mini automatic multi-function sublimation machines
Also called:mini automatic sublimation makers, mini automatic heat press, mini automatic sublimation machines
portable automatic heat transfer machines/portable sublimation heat transfer machines
portable automatic sublimation machines/portable sublimation makers
Package: 1Set/Case
Brand Name: SuperImage-Freesub
Origial of Certification: Made In China
Certifications & Standards: CE
Main Functions:

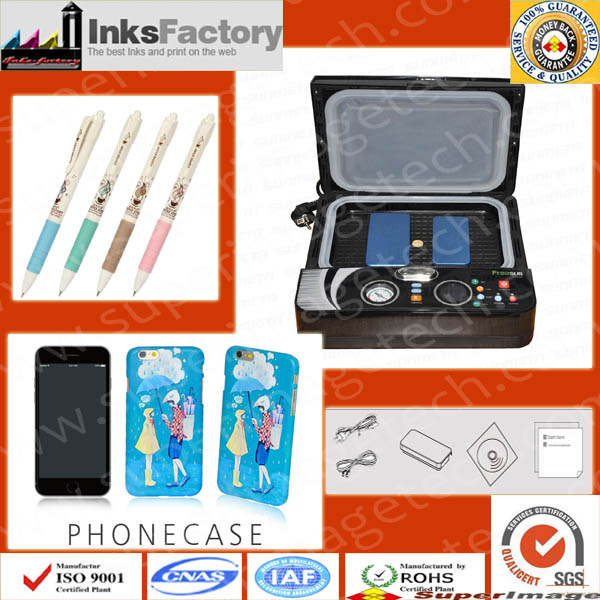

1). Heat press for phones cases

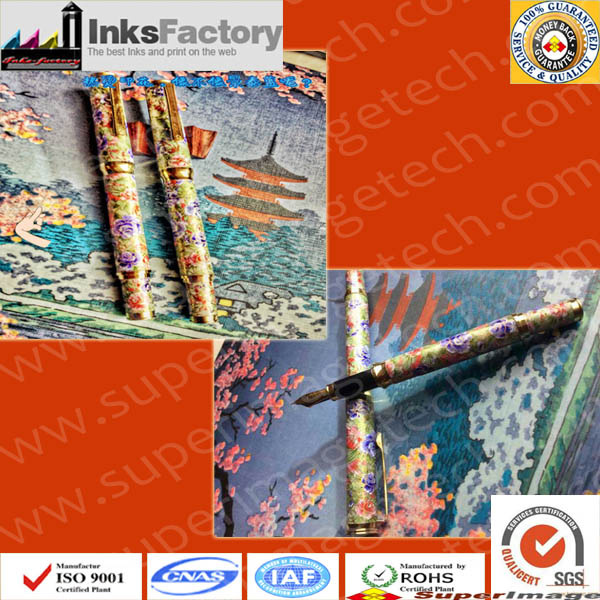

2). Heat press for pens
3). Heat press for small signages
4). Heat press for stamps.
5). Heat press for small metals products.
6). Heat press for small Rocks products.
7). Heat press for small crystal/glass products.
8). Heat press for other surface and 3D products.
It is a latest mini automatic sublimation makers, comprehensively intead of the traditional heat press to deal in some small sizes products.
Main Highlights:
1). Safety: 3D vacuum heat press machine uses dual temperature control design. When one thermostat malfunctions, another thermostat works automatically. If there is any operation within 15 minutes, the machine will automatically shutdown. It is more secure and reliable. The aircraft has applied for CE \ UL and other safety certifications.
2). Fine: Unique Cobblestone Surface Design, greatly improves the heated area. Moreover, the die-cast aluminum heat and far infrared radiation coating design make the furnace temperature of each point are uniform, which ensures that the transfering more delicate image clarity, and color reproduction more high.
3). Simple: 3D vacuum heat transfer machine machine adopts high impedance contingent, special insulation materials, lightweight safety, thermal resistance of streamlined, compact and practical internal structure, simple and stylish appearance.
4). High efficient: 3D vacuum heat transfer machine, with about 300*250*80 large-capacity reactor core design, can contain 2-4 iphone cases one time, and 10pieces of pens, which greatly improve work efficiency.
5). Highly intelligent: 3D vacuum heat press machine works without any key operation, just with gently close the lower cover, the machine automatically inhale, vacuum pumping, countdown, and warming. When the work is completed, the machine automatically deflated, Users only need put into the product and take out it after the heat transfer being finished. In the whole process, users need only set the temerparture and time.
6). Environmental protection: In the 3D vacuum heat press machine, A high efficient air filtering device is installed, which can effectively filter toxic gases produced in transfer process, and then piped them the outside through the long silicon hose, which ensure operator health and safety.
7). Multi-Functional: This 3D heat press machine can heat transfer mug, glass, crystal, acrylic, plastic, wood, metal, stone, fabric and so on Materials. Matching with various types of fixtures/adapters developed by our company, this machine can work for all types of heat transfer media with different sizes and shapes.
It works with big Transfer size, fine/clear colors, and high efficiency, which is far more than traditional heat transfer machine.
Quality Warranty
SuperImage affords 12 months quality guarantee for inner quality problems from the date when The customers receive the heat press machines and the relative accessories...
| Products Name: | mini automatic sublimation makers |
| Abbreviation: | 3d heat press |
| Rated Voltage: | 220V-110v |
| Rated Power: | 400W+400W |
| Heat Press Size: | 300mm*420mm*110mm(11.8*16.6*4.3inches) |
| Heat Press Method: | Vacuum 3D,Plane & Curved Surface accepted |
| Up Heating Power: | 400W |
| Down Heating Power | 800W |
| Vacuum Pump Power: | 120W |
| Max. Vacuum Value: | -0.07Mpa |
| Vacuum Flow: | 5L/MIN |

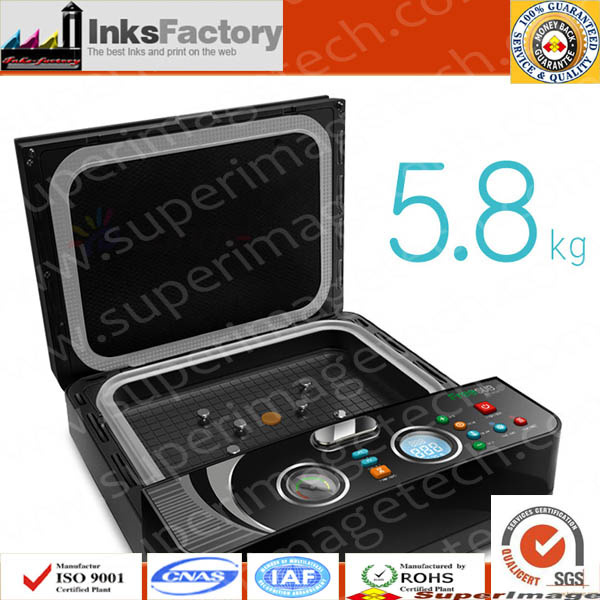

| Net Weight: | 5.8KG |
| Transfer Data: | 180Celsius degrees, 300seconds |
| Control Mode: | LCD Display |
| Colors for option: | Matte Black, and Matte White |
| Gross Weight: | 10KG |
| Volume: | 0.01CBM |
| Machine Size: | 335mm*330mm*100mm |
| Pack List: | 1). 3D heat press machine 1 set
2).Products Users Guide
3). Power cables.
4). Phone cases samples |
