Product Specifications
Prod Model: |
ST-1520 |
Voltage: |
100V /120V/ 230V |
Power: |
1300W |
Printing Size: |
150 *200 * 20 mm |
Machine N.W.: |
6.5 Kg |
Vacuum Pump: |
12V/10W |
Vacuum Pressure: |
-0.06~0.07 PA |
Max Vacuum: |
-640 Mmhg |
Supply Color: |
White / Black |
Working Mode: |
Comes with Vacuum Pump |
MOQ: |
1 Set |
Type: |
Pin-on |
Plate: |
Lithography Printing |
Structure: |
Platen Press |
Color & Page: |
Multi-Colour Printing Press |
Printing Speed: |
7.5CPI |
Product Description

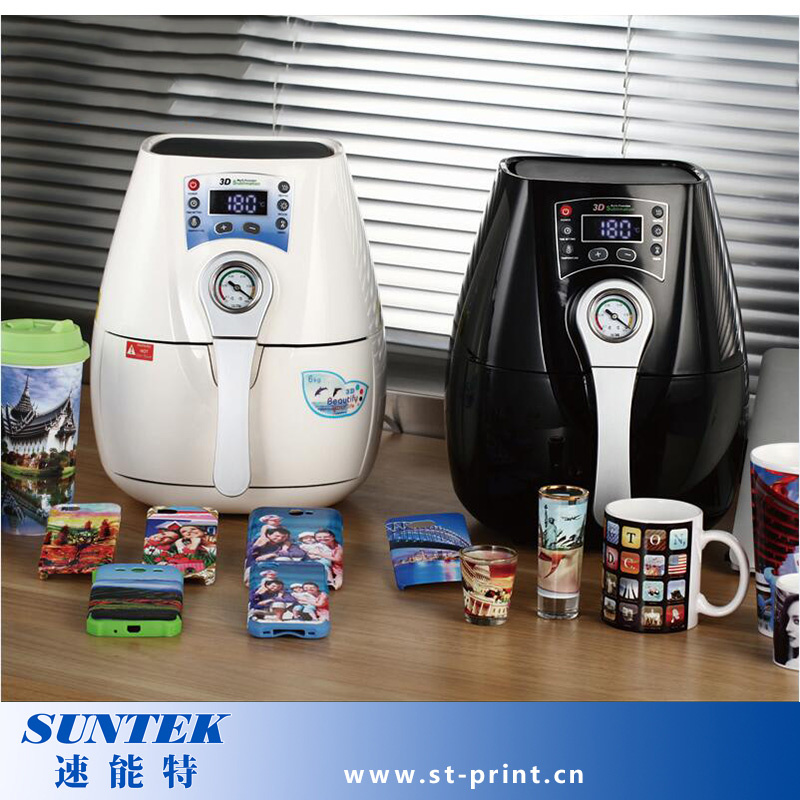

Mini 3D sublimation vacuum heat press machine ST-1520
Product model: | ST-1520 |
Nominal valtage: | 230v/(100v 120V) |
Rated frequency: | 50hz/(50-60hz) |
Rated power: | 1300w |
Heating tube power: | 1200w |
Vacuum pump: | 12v,10w |
Vacuum pressure: | -0.06 0.07pa |
Heat blower: | 80w |
Printing size: | 150mmx200mmx20mm |
Package size: | 345x370x350mm |
Net weight: | 6kg |
Feature:1. Multifunction : be available to print more than 30 kinds or mugs, phone cases, plates and so on. 2. Rich colors: heated by circulatory hot wind, picture is more distinct. 3. Reliable quality: stainless steel heating tube, with life span of 100 thousand hours. 4. Intelligent design: digital temperature control, one key to finish. 5. Ultra-large capacity: one equals to four other machines, high efficiency Weight 6kg,super lightweight design save space. 6. Fashion appearance: Streamlined appearance design, fashion.Different Packages for Different Applications | Accessories Included |
ST-1520C1
For Phone Cases | 1.Installed vacuum clamp 1set |
1.Installed vacuum clamp 1set |
2.Adjustable case cool tool 1pc |
3.Silicone pad 1sheet |
5.Suction elbow 1pc |
6.Gas nozzle 1pc |
7.Position stopper 1pc |
8.Gloves 1 pairs |
9.Manual |
10.Video CD 1pc(Including trial software) |
11.Stainless steel sleeve |
*Packing size: 42x40x39cm Weight: 8.5kgs |
ST1520-C2
For Mugs | 1.Square aluminum frame 1 pc |
2.11oz heterosexual mug clamp 1pc |
3.mug with ear clamp 1pc |
4.cylinder mug clamp 1pc |
5.Small glass cup clamp 1set |
6.150 universal cover 1pc |
7.8" plate clamp 1pc |
8.Normal 11oz clamp 4pcs |
9.Teflon tube 1pc |
10.Silicone tube 2pcs |
11.Gloves 1 pair |
12.Manaul |
13.Video(Including trial software) |
*Packing size: 42x40x39cm Weight: 8.5kgs |
ST1520-B Combo Package for both phone and mugs | 1. 8 different phone moulds |
2. Package of C1 and C2 accessories |
3.a 16GB usb flash drive(instead of CD) |
*Packing size: 55x43x41cm Weight: 11.5kgs |
ST1520-A Luxurious Package | 1. Itmes incuded in Package B |
2. Printed Samples (including cups, plates, sports bottle, stone paintings, crystal, the sample of the following) |
*Packing size: 55x43x41cm+46x33x23cm Weight: 11.5kgs+7kgs |

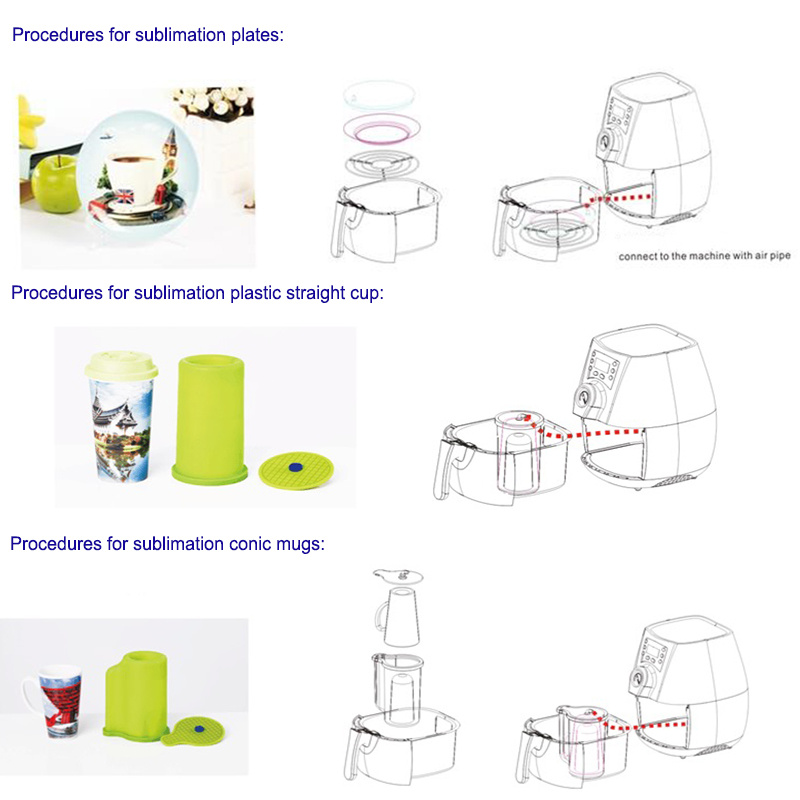

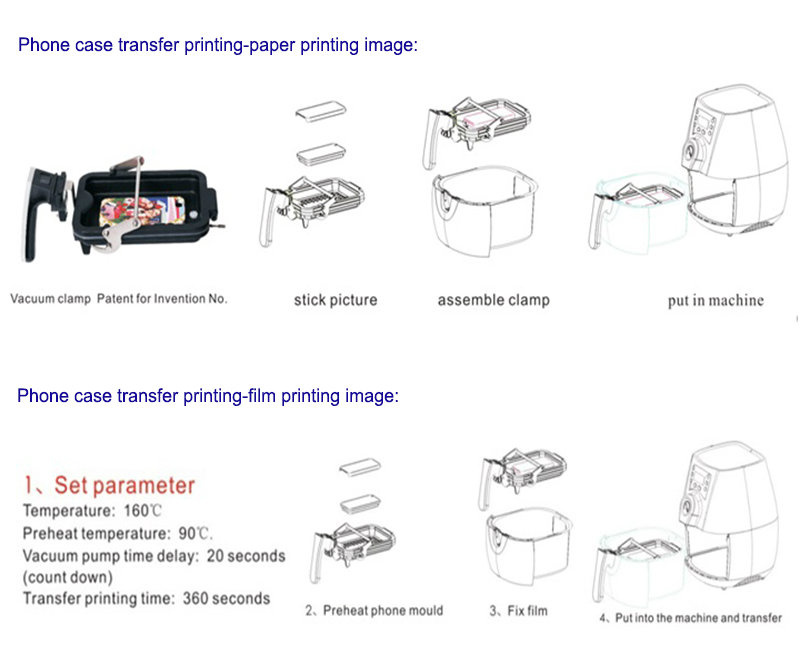

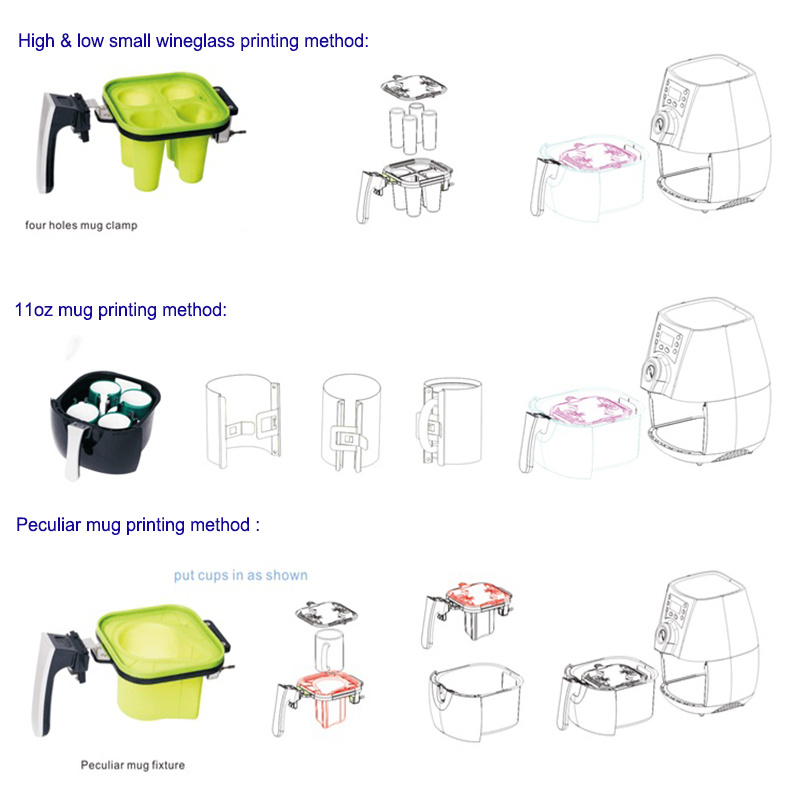

Processing of different items:

Company Information:Shenzhen Suntek Co., Ltd. was established in 2009, operated under the brand of SUNTEK, is a high-tech enterprise integrated in R&D, manufacture and trade on various transfer printing equipments & consumables.
Our main products are as follows:1.Heat press machine
2.3D sublimation vacuum machine
3.Big roller sublimation machine
4.Heat transfer printing consumables
(sublimation papers, sublimation ink and eco solvent heat transfer papers)
5.Sublimation blanks
(mugs, mobile phone cases, plates, sublimation stone, sublimation crystals and so on)
ContactCompany name:Suntek Print Company Limited
Name:Ms.Candy Ye
Mobile:+86 ---17788774694
Website: www.st-print.cn/en
Established in 2009, Suntek Print Company Limited (ST-PRINT) is a high-tech enterprise integrated in R&D, manufacture and trade on various printing equipments&consumables. We provide various printing equipment, hea transfer machines, consumable products, badge machines & badge accessories, digital
Electronics, garment processing products, silk screen printing and metal accessories as well as others.
Our ST-PRINT products are mainly as follows:
1. Heat transfer/press machines: Sublimation transfer machines, roller
Sublimation transfer machines, pneumatic heat press, shaking head heat press, high pressure heat press, t-shirt flat press, mug heat press, plate heat press, cap heat press, etc.
2. Transfer consumables: Sublimation paper, dark/light color cotton heat
Transfer paper, water transfer decal paper, sublimation ink, etc.
3. Badge/button making machines and badge/button accessories, etc.
4. Other kinds of printing equipment and consumable products.
With "Honesty, High-quality, Enthusiastic services and win-win result" as our motto, We always keep developing new products and providing you with the most competitive products. With high quality and competitive price, our products enjoy good reputation among our customers. Meanwhile, our company is located in Shenzhen, which enjoys convenient transportation and ensures prompt delivery. We welcome all types of companies, traders, digital photo studios, fashion stores, and personal fans to contact us with your requirements. We receive OEM orders from at home and abroad.
