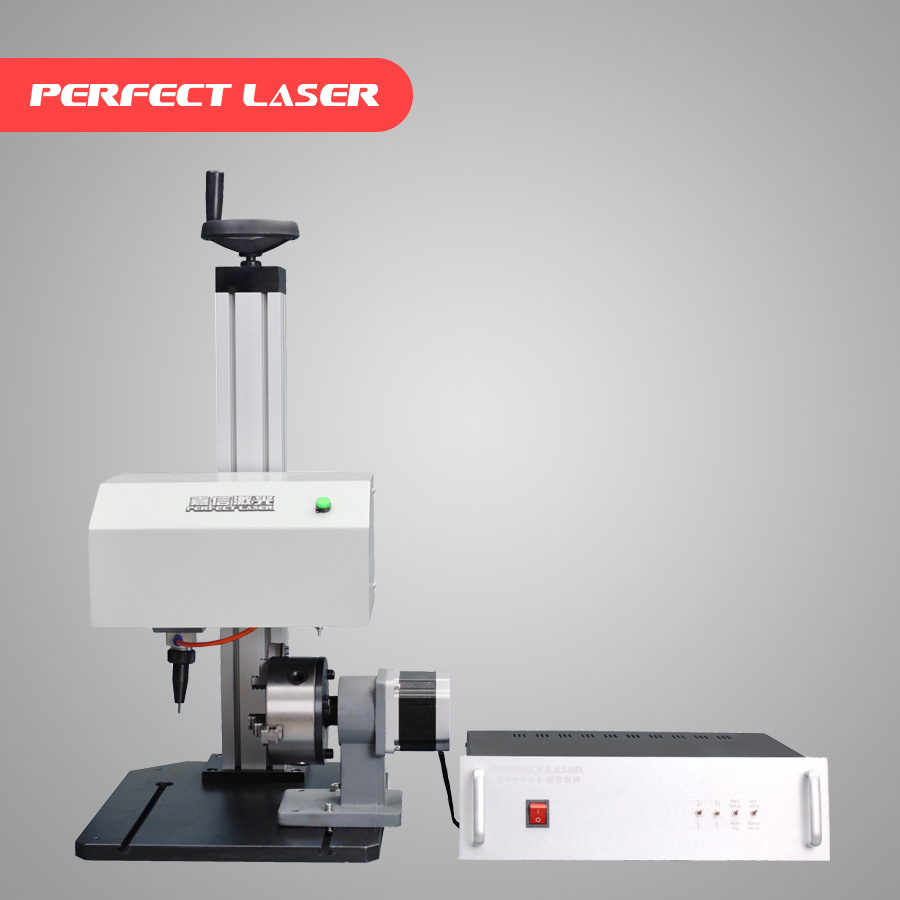

Metal/ Aluminum DOT Pin Nameplate Printing Machine with Ce SGS
| Price: |
US $ 1700-1800/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
PEQD-025 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gross Weight: |
60kg |
| Voltage: |
220V, 50Hz |
| Marking Area: |
150*100mm/200*100mm/300*200mm |
| Engraving Speed: |
200mm/S |
| Marking Pin Hardness: |
HRC95° |
| Extra Port: |
LCD&USB |
| Rated Power: |
1kw |
Product Description
Metal/ Aluminum DOT Pin Nameplate Printing Machine with Ce SGS
>>> Machine Features:
1. This machine takes complete LCD control system, integrates PC, display, and control system into one unit, no need to connect computer, with smaller size which can save space, easier to operate and high efficiency.
2. The processed letters, words, or graphics can be saved in a U disk, then input to the machine, and the machine can work offline without computer, more convenient to operate and working efficiency much enhanced.
3. Applying the most widely used up-down lifting structure to realize multi-functions.
4. The software is with powerful edit function, can layout any kind of characters and graphics, and is compatible with AutoCAD software.
5. It can mark any logo (character, letter and graph, data code, series number, VIN code, engine numbers) automatically, support logos and graphs designed in DXF format from AutoCAD, CorelDraw, and multi-kinds font such as MG Font, SHX Font in Auto CAD, CHR in Borland, and TTF in Windows.
6. It can be used online to share the database and data transmission with other equipment, such as match with electronic scales, bar code machines, leak detectors and other equipment.
7. Easy to maintenance, widely adaptability, can work in any environment, widely used in many fields.
>>>Please indicate your product name and your expected marking purpose. You will get what you want.| Flat Surface Marking Scope: | 150mm×100mm,200mm×100mm,300mm×200mm,400mm×300mm |
| Moving Marking Depth: | 130mm×80mm,150mm×100mm,200mm×100mm |
| Marking depth: | 0.01~2mm |
| Marking Speed: | ≤50mm/second (for characters height of 3mm / numbers 3-4 per second) |
| Lifting Range | 0-300mm |
| Marking Accuracy: | 0.01 mm |
| Pin Hardness: | HRC 73 |
| Power Supply: | 220V±10%,50HZ |
| Air Pressure: | 0.2-0.6 Mpa |
| Machine Power: | ≤400 W |
| Working Environment: | -5~40 ºC |
| Needle weight | 2kgs |
| Whole Machine Weight: | 60Kgs |
