LIANYUNGANG BAIBO NEW MATERIAL CO., LTD. >> Melting Crystal Clear Quartz Ring

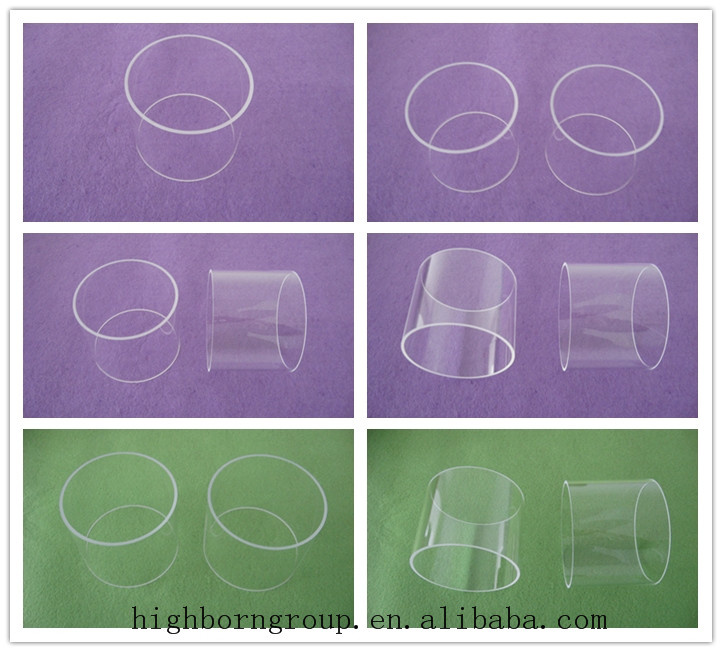

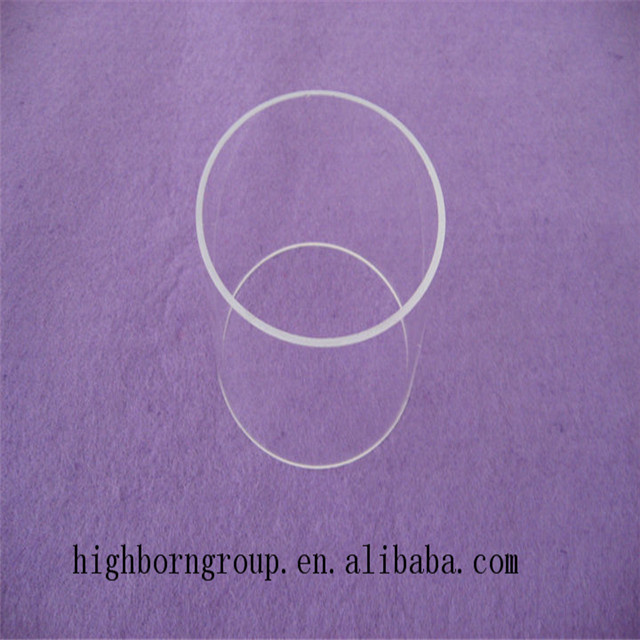

Melting Crystal Clear Quartz Ring

Melting Crystal Clear Quartz Ring
Price: Negotiable/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Money Gram

Product Specifications


Prod Model: OEM
Product Name: Quartz Ring
Application: Semiconductor
Color: Clear or Transparent
Thickness: 0.5-30mm
Sio2: >99.5%
Max Size: 1000mm*2000mm(Square)
Working Temperature: 1100 Degrees
Two Sides: Polishing or Grind
Edge: Can Be Flame Polished
Service: We Can Process as Your Requirement
Feature: Long Time Materials
Type: Heat-Resistant Material
Refractoriness (',℃): 1100 Degree
Shape: Ring
Material: Natural Quartz

Product Description

Al
Fe
K
L
C
N
B
C
M
OH
20
0.4
1
1.4
0.01
1.5
0.2
0.5
0.05
120--260
Material
Natural Quartz
Color
Transparent or clear
Surface
No Air Bubble ,no process
Density
2.2 g/cm 3
Degree of Hardness
5.5-5.6 Moh's Scale
Softening Point
1750 C
Strain
1270 C Fused The Quartz Glass Brick
PPM grade
Controlled 10/20/100 PPM
Shape
Circle/Square /Rectangle
Thickness
0.5 MM-100 MM
Parameter/ Value
JGS1
JGS2
JGS3
Maximum Size
<φ200mm
<φ300mm
<φ200mm
Transmission Range
0.17~2.10um (Tavg>90%)
0.26~2.10um (Tavg>85%)
0.185~3.52um (Tavg-85%)
OH- content
1200ppm
150ppm
5ppm
Fluorescence (ex254nm)
Virtually Free
Strong V-B
Strong V-B
Impurity Content
5ppm
20-40ppm
40-50ppm
Birefringence Constant
2-4nm/cm
4-6nm/cm
4-10nm/cm
Melting Method
Synthetic CVD
Oxy-Hydrogen melting
Electrical melting
Applications
Laser substrate: window, lens, prism, mirror
Semiconductor and high temperature window
IR & UV substrate



Applicaton


Packing & Delivery

Packaging Details                    standard export packing to avoid broken
                                                    packed by bubble pack+paperboard+carton+wooden case
Delivery Time                            7-15days




Our Service

1, OEM service.
2, Produce per customers' request such as design & package & printing logo.
3, Special package for fragile products to make sure no broken in transportation.
4, The Trade Assurance Service is ready for you and our guarantee account is USD40000.
5, 10 years golden supplier.
6, 0% compain feedback.
7, 100% good reputation.


Company Information

BAIBO is one of the leading high quality quartz glass and precise ceramics manufacturer and supplier in China.
BAIBO has always been a defining force in the sale and fabrication of quartz glass within the semi-conductor, chemical, solar Energy and precise ceramics within semi-conductor , solar energy, textile, electronic, and laser industries.
Not only have we mastered the fabrication technology, our strength has always been based around listening to and understanding our customer's requirements and expectations.
Continuous improvement in all areas of our business is key to our grouth. What is equally important to us is maintaining in business, our inherent family values of trust, faimess and respect to our employees, suppliers and customers.



FAQ

1.Q:What is the material of your products?
A: The material is natural quartz.
2.Q:Are you a factory or trading company?
A: We are a factory.
3.Q:How can I pay for you?
A: T/T, L/C, West Union and Aliexpress credit card payment.
4.Q:Can I customize the LOGO on thermal quartz ring?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
5.Q:Can I have a sample order for quartz flange?
A: Yes, we welcome sample order to test and check quality.

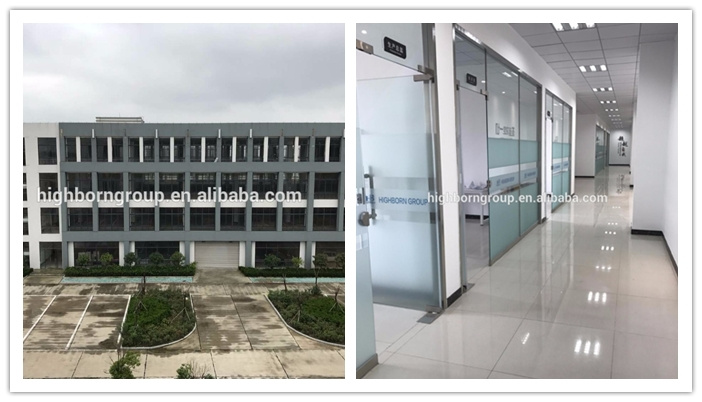

Our Company

Lianyungang BAIBO New Material Co., Ltd is one of the leading high quality quartz glass and ceramics manufacturer and supplier in China.

BaiBo has always been a defining force in the sale and fabrication of quartz glass within the semi-conductor, chemical, solar Energy and precise ceramics within semi-conductor, solar energy, textile, electronic, and laser industries.

Until now, we have exported our goods to 95 Countries, and most of our ceramic products are export to Europe, USA.
