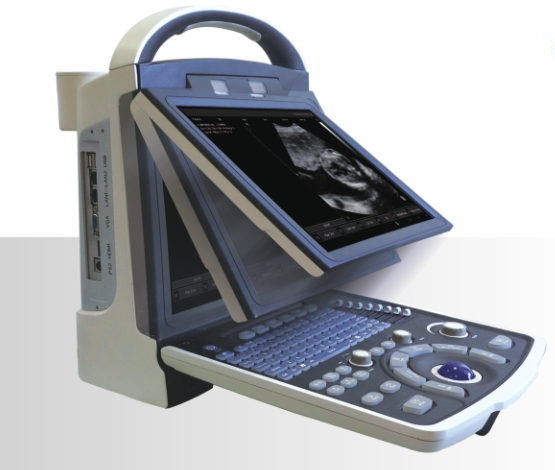

Meditech Ultrasound Scanner with PC Platform
| Price: |
US $ 1450-1600/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
S4i |
| Screen: |
10 Inch LCD |
| Classification: |
Physiological Functions of Diagnosis and Monitoring Equipment |
| Type: |
Ultrasound Scanner |
| Certification: |
ISO13485 |
| Group: |
Female |
Product Description
S4IS4i adopts advanced high-precision digital beam former, acontinuous dynamic focusing, dynamic aperture and dynamic
apodization changes, making the image real, rich in detail
It has powerful standard PC platform, professional design and easy operation of the control panel which meets the increasing
requirements of the clinical diagnosis.
Data recording and transfer softwarePRODUCT FEATURES:Full digital imaging technology
Crystal-clear Image
Computer platforms, Abundant functions
Powerful image and report management
10 inch no interlaced CRT monitor
Silica gel backlight keyboard
DICOM display and transfer
Pretty, portable and light
Large volume Storage and cine loop
128/256/512/1024 frame cine loop
Broadband Multi frequency probes
8 segment TGC, 16 step zoom
Complete application software packages
2 probe connector
Compatible with USB laser/inkjet printers
3D Image Function(optional) - THI
- Imaging technologies
- Intelligent Speckle Reduction
- 3D reconstruction
- Abundant user management functions
- One key recording
- User defined OB table
- Expert vocabulary and report templates
PRODUCT SPECIFICATIONS:Displaying mode: B mode, B/B mode, B/M mode, M mode, 4B mode
Scanning mode: Electric convex, Electric linear, Electric micro-convex
Displaying depth: 20mm-310mm
Probe port: 1 OR 2
Voltage: AC100V-240V
Output port: USB,DICOM,VGA,
Gray scale: 256
Time gain: Gain:10~255dB adjustable ;time gain compensation(TGC): 8 segments, which can be adjusted independently in B mode and M mode.
Storage function: image storage, cine loop storage, mass storage capacity≥10G.measurement result storage, report storage
Cine-loop: 64,128,256,512,1024 frames can be chosen;auto/manual cine loop
Patient information: Hospital name; patient name; case number; patient age; gender;
Focusing mode: 1-4 selectable focus , multiple combination way, focus position moving available
Real-time zoom, local zoom: Multi-stage display rate(depth ascension)function, roll line function
Annotation function: Annotation at the image area
Annotation of patient information
Body mark: 140
Cursor: The combination of Trackball and keyboard
Color display: 43 color display function
DC-AC: AC/DC
Report: Display, storage and print report directly.
Variable angle scanning: 16kinds of angle scanning include:25%,30%,35%,…100
Image processing: Pre-processing, post-processing, dynamic range, frame correlation, line correlation, edge enhancement, black/white conversion, left/right conversion, up/down conversion, contrast, brightness, gamma correction
Dynamic range: Continuously adjustable: 20~150dB
Measurement and calculation: B mode: distance, circumstance, area, volume, angle, histogram, hip joint angle
M mode: heart rate, time, slope
Abdomen: uterus, cervix, endometrial, ovary, ovarian follicle, cyst, enclosed mass
Obstetric: 14(AC,BPD,CRL,FL,THD,GS,OFD,HUMERUS,TIDIA,ULNA,HC,TAD,APTD,FTA)measure gestation age, fetal weight, AFI
Cardiology: LV.LV function, LVPW,RVAWT, aorta, mistral valve
Urology: L/R kidney volume, bladder volume, prostate volume
Small organs: Ophthalmology. Thyroid, residual urine volumeRELATED ACCESSORIES:Standard:
Multi frequency convex probe ...... 1Pcs
Power Cable ............................... 1Pcs
Cleaning Cloth ............................ 1Pcs
Meditech was founded in 1998, is a group dedicated to provide state-of-the-art Medical Equipments with top-ranking quality and outstanding reputation. As one of the leading medical equipment manufactures, we are involved in R&D, manufacturing and marketing. And as a global enterprise, our products are selling in more than 70 countries worldwide.
We produce a wide range of medical products used in hospitals and clinics, such as ECG machine, Defibrillator, Multiparameter Patient Monitor, Ultrasound scanner, Pulse Oximeter, Fetal Doppler and monitor, Visual stethoscope.
All of our products have been approved by ISO13485 and have passed CE Certificates. We stick to delivering our high quality product and best service to our global base of customers.
