Marble Fireproof Anti-Seismic Stone Honeycomb Panels for Column Cover
| Price: |
US $ 69-99/Square Meter |
| Min Order: |
500/Square Meter |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
AD-SAHP |
| Stone Thickness: |
3-8mm |
| Stone Type: |
Marble, Granite, Travertine, Onyx, Limestone |
| Surface Treatment: |
Polished, Honed, Flamed, Sandblasted, Tooled |
| Edge Processing: |
Edge Closed or Edge Open |
| Adhesive: |
Bio-Component Modified Epoxy Resin |
| Foil Thickness: |
0.04-0.15mm |
| Performance: |
Lightweight, Anti-Seismic |
| Function: |
Building, Decoration, Furniture |
| Aperture: |
1.7-35mm |
| Level: |
Grade a |
| Application: |
Wall Cladding, Interior Decoration, Countertop |
Product Description

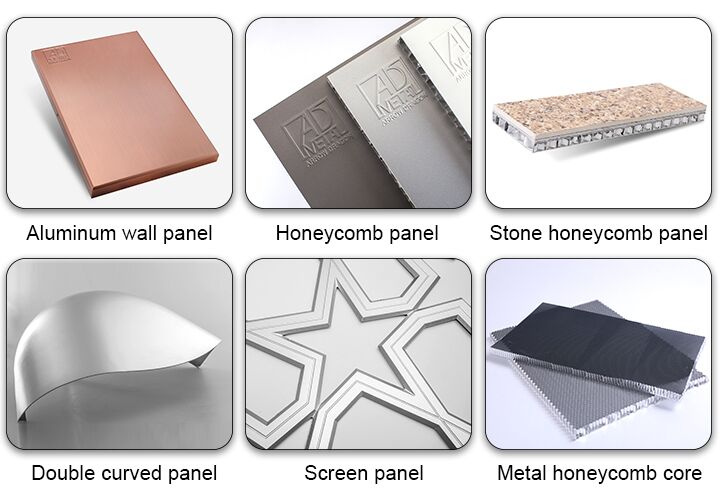

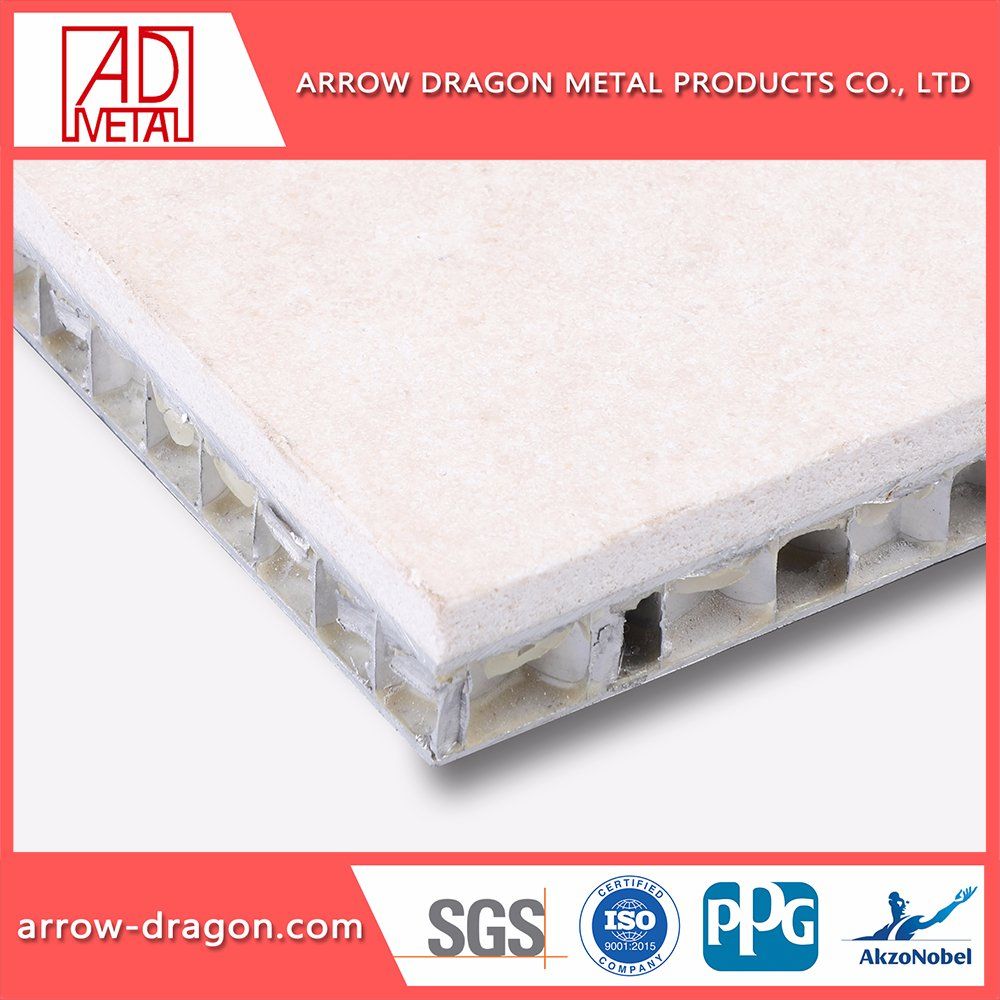

Company IntroductionArrow Dragon Metal Products Co., Ltd specialize in aluminum panels, including solid panels, honeycomb panels, stone honeycomb panels, curved panels, perforated panels and screen panels. With year's development, our products got recommendation by our clients and are used in some big projects all over the worldThe ultra-thin stone veneer honeycomb panel is high-tech products produced by the compound of 3-5mm thick slices of natural granite/marble and aluminum honeycomb panels. Stone veneer aluminum honeycomb panel keeps the natural beauty of tone, but without the shortcoming of heavyweight or fragility that typically accompanies it.Projects ReferenceDue to its combined the advantages of nature stone and aluminum honeycomb panel, our stone aluminum honeycomb panels are widely used in some big and modern architectural building.Below are some our recent projects:

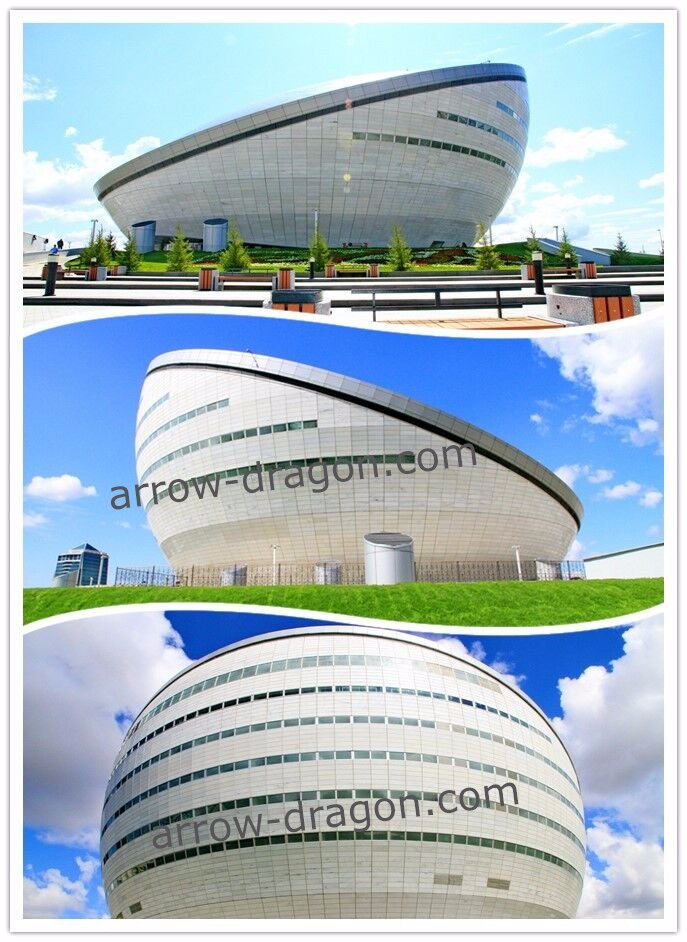

Projects: Astana LibraryProducts: 25mm stone honeycomb panel, 7mm marble stone+18mm honeycomb panelHoneycomb panel specs: 0.8mm face sheet+16.4mm honeycomb core(A4*0.06) +0.8mm bottom sheetStone: Vietnam crystal white marbleArea: 8000sqmSpecification | Stone | Granite, marble, onyx, limestone, sandstone, quartz |
| Stone thickness | 3-8mm |
| Aluminum facesheet | Aluminum alloy 5052H24/3003H24
Thickness: 0.05-1.2mm |
| Aluminum base sheet | Aluminum alloy 5052H24/3003H24
Thickness: 0.5-1.2mm |
Honeycomb core | Aluminum alloy 3003 H24
foil thickness: 0.04-0.07mm, side length: 4-7 mm
height can be up to 200mm |
Adhesive | Polymer adhesive film
Bio-component modified epoxy resin.
Bio-component modified polyurethane |
Coating | Fluorocarbon roller coating
PVDF
Powder spraying coating |
| Length | 500mm to 4000mm. |
| Width | 500mm to 1500mm. |
Features of stone aluminum honeycomb panels- Stronger than slab stone
- Easy to install and put less load on the building
- Light weight
- Fire resistance and shockproof.
- Heat insulating and sound proof.
- Easy to be processed into any artistic designs or unique shapes.
- Easy and safe for installation.
- Diversity color choices bring elegant decorative effect.
- Cost efficiency.
- Durability and severe weather
Product ApplicationIn addition to the current honeycomb stone panels have been used inside and outside the building decoration, but also applied to the ceiling, elevators, floor and partitions.
Production Procedure
Shearing-Punching-Brushing-Bending-Gluing-Core compositing-Sheet compositing-Vacuum pressing-Rivet assembling-Slab cutting-Gluing and pressing-Spliting-Thickness setting-Polishing-Finished panel cuttingPackage & Delivery
FAQQ: Do you provide free samples?
A: Yes, the samples are free of charge. But you need to offer one courier account NO. to afford the fee for samples delivery. The delivery of sample usually takes 3-5days. Q: How soon can I get your price offer?
A: After getting product details, we will quote price within 12 hours. Q: Is possible to make products for my brand?
A: Yes, it's possible. Please give us your brand or LOGO design, then we can make the product with your brand or LOGO.
Q: What's your delivery time?
A: It depends on your product design and quantity. Please contact our sales, our sales will reply you within 12 hours.
Q: What's your MOQ?
A: Due to the high machine setup cost and shipping freight, our minimum order quantity is 500SQMS. When your project order is less than 500sqm, we will handle it specially.
Q: How can I trust you to give my order to you?
A: ARROW DRAGON is established in 2006, as a member of Made-in-China's audited manufacturer, we have supplied aluminum wall panel products to our clients over the world, our projects reference can prove our clients are satisfied with our cooperation.
Arrow Dragon Cladding Panels are very strictly in raw material, Panel manufacturing, PVDF, layer specification and package protection.
For customized panel, factory pre-produce samples for mock-up, then start mass production, which can guarantee customized size and
Lead time.
Cladding panel is made by adopting high strength aluminum alloy. The thickness can be 1.5mm, 2.0mm, 2.5mm, 3.0mm, maximum size
Can be 1900*6000mm, alumium alloy is 3003H24. The panel is mainly composed of veneer panel, panel and corner brace. Corner is not
Only made by punched and bend panel, but also made from small herm of panel. Reinforced rib is connected with welding screw, this will
Make them become firm whole, and enhance intention and rigidity of cladding panel, enhance the smoothness, wind-resistance, anti-seismic
Ability of cladding panel in long-term using. If you need to make it with sound insulation, heat preservation, you can install sound insulation
And heat preservation material inside of cladding panel.
Highlights of cladding panel:
1. Light, high rigidity and intensity. The weight of 3.0mm cladding panel is 8KG/sqm, the tensile strength is 100~280N/mm.
2. Good weather-resistance and high anti-corrosion. While use kynar-500/hylur-500 as PVDF coating basic material, guarantee is 25 years.
3. Easy for processing, it can be form into different shape, such as plane, cambered plate, spherical plate and etc.
4. Colorful coating. Electrostatic spraying technology painting, high-pressure panel stamp, and various color for you choices.
5. Not easy to stain, convenient to clean and maintain, non-adhesive of PVDF is difficult to attach pollutants.
6. Easy for installation. All process
Application projects:
1. Curtain wall of building
2. Lobby facade
3. Awning and column decoration
4. Elevated corridors
5. Overhead bridge
6. Elevator bordure
7. Advertisement boards
