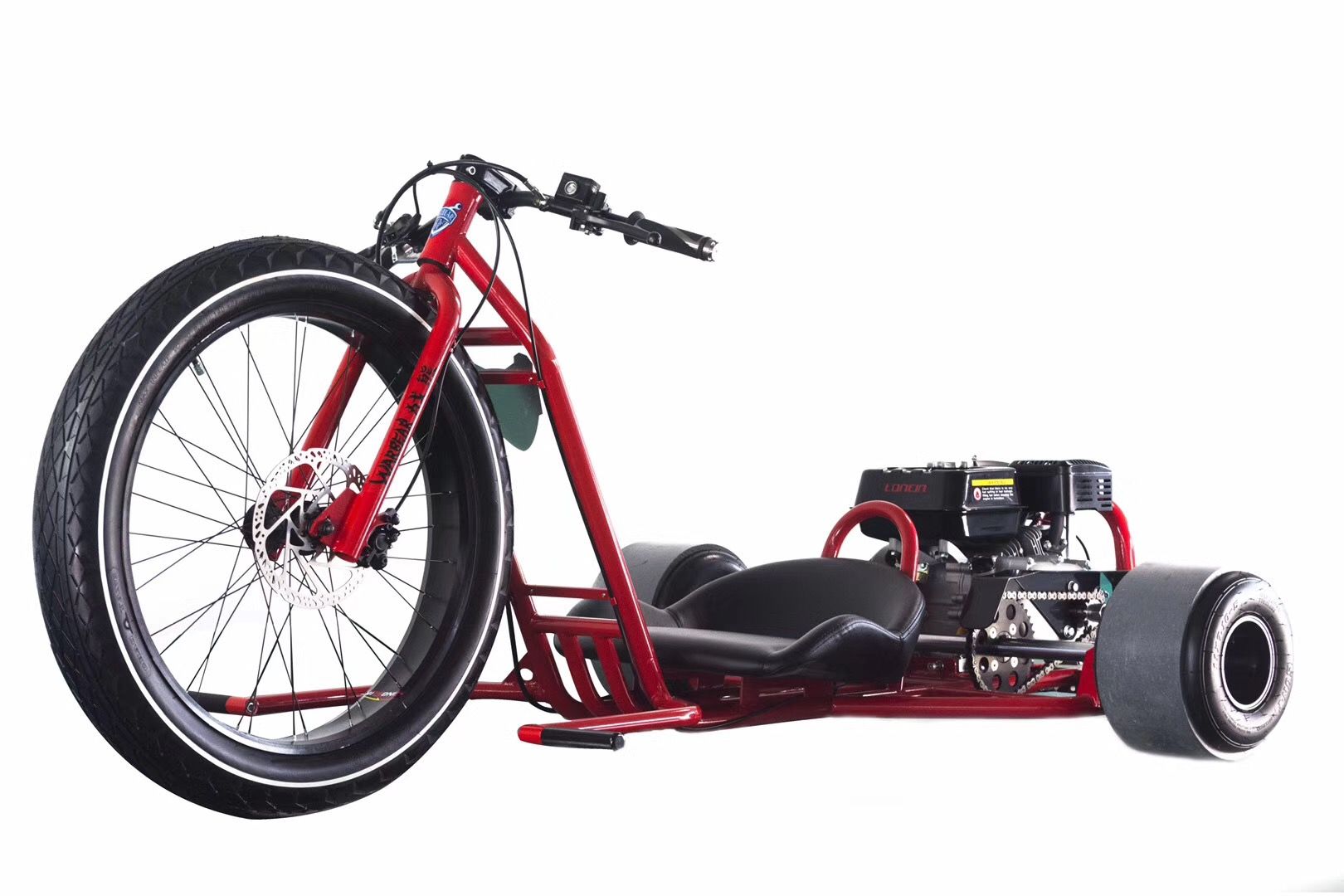

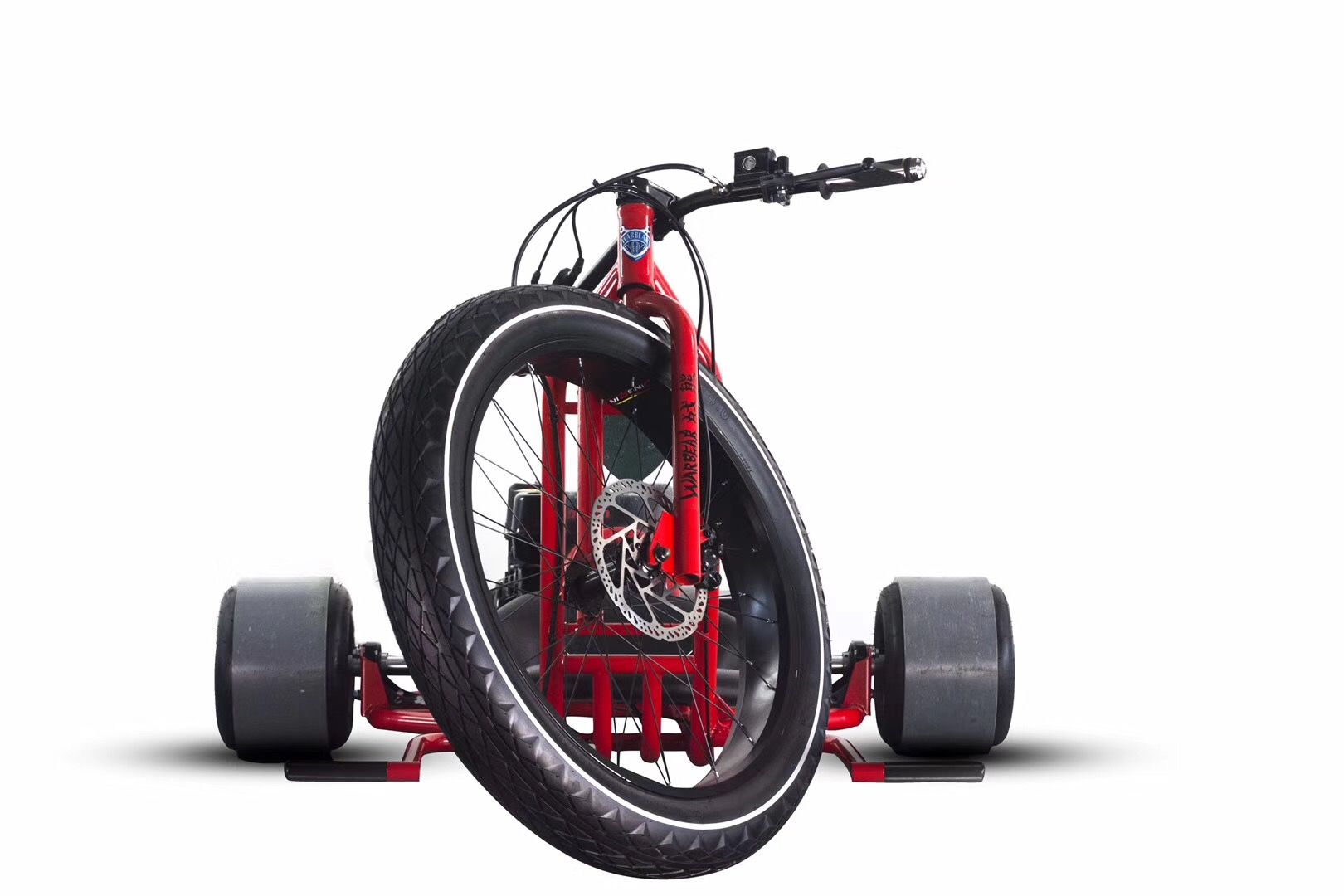

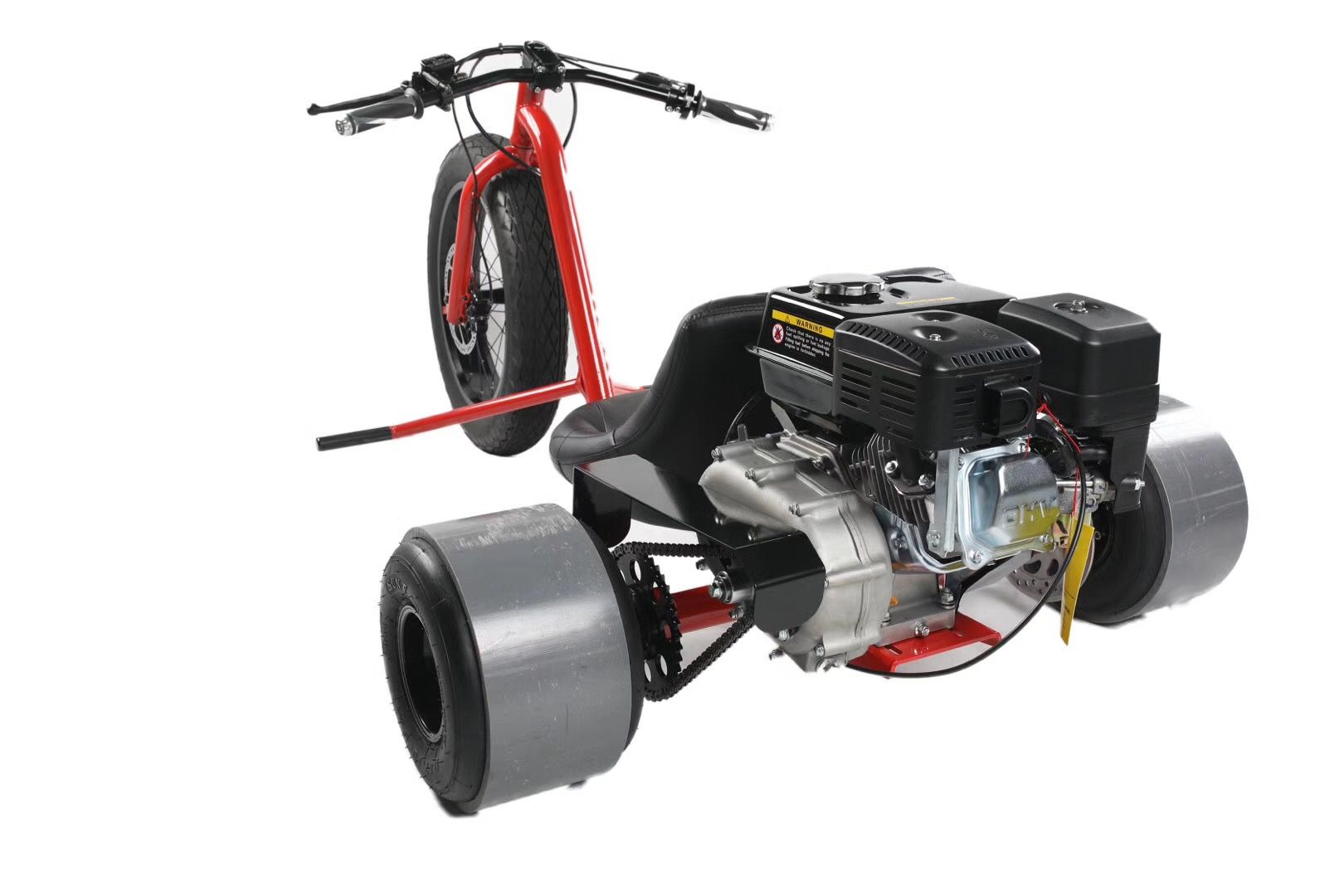

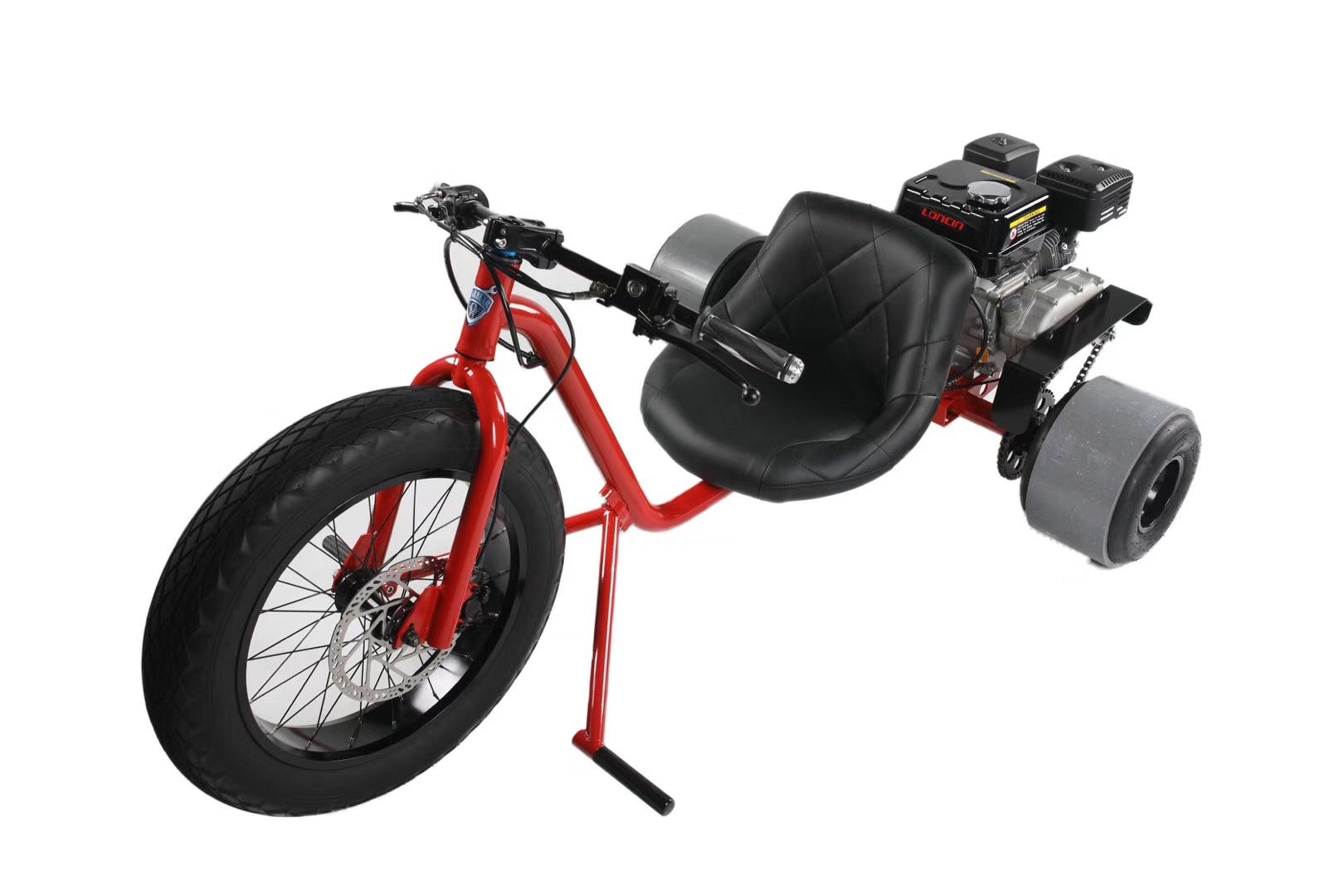

Made in China Halley Warbear 196cc Motorized Racing Drift Trike

Made in China Halley Warbear 196cc Motorized Racing Drift Trike
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal

Product Specifications


Prod Model: xj-120
Brake: Hydraulic Disc Brake
Driving Type: Motorized
Use For: Sports/Fun
Max Speed: 45km/H

Product Description


The front wheel of drift car is the ordinary rubber tire,while the rear wheel is of kart
tire with a drift ring on it.The drift ring is made from PVC or PE materials, which
decreases the friction of the rear wheel.When the speed is above 10kn/h,the car
can drift with the help of centrifugal force if youturnthe handlebar easily.


FEATURES


* 196CC High Power


* LONCIN G200F Motor


* Automatic Wet Multi-chip Clutch


* Hydraulic Disc Brake


* High Speed and Large Torque


* Double Tube Chrome-molybdenum Steel



Detailed Specifications:


Item Name: WARBEAR Halley Drift Trike

Item No.: GTWB01

Motor: LONCIN G200F

Power: 196CC

Driving Type: Motorized

Max Power/ rpm: 4.1kw/3600

Max N.m/ rpm: 24.8/1250

Ignition: Crystal point non-contact ignition

Fuel: RQ-90 or Better

Lubricant: 4t

Clutch: Automatic wet multi-chip

Derailleur: Continuously variable speed

Starting: Pull Start

Oil Tank: 3.6L
Max Speed: 45km/h

Max Loading: 150KGS

Net Weight: 80KGS

Brake: Hydraulic disc brake

Front Wheel: 26x4.0''

Rear Wheel: 11x7.1-5''

Transmission: Chain

Minimum Ground Clearance: 80mm

Frame: Double tube, Chrome-molybdenum steel

Weld: TIG welding

Trike Dimension: 2100*1230*870mm

Packing Size: 1630*1035*790mm

Motorized Drift Trike

Engine6.0HP/4Stroke/196ccBody materialMolybdenum steel
Max Power   4.1KWFront wheel size26 *4.0 inch tires
Bore*Stroke   68mm*54mmRear wheel size11*7.1-5
Fuel Volume   3.6LDrift ringPVC
Compression Ratio   8.2:1SeatPU
Max speed h  40km/Brake systemDisc brake
Weight   85KGLogistics weight120KG
Max payload   150kgBox size1600*1010*760






Please contact me to get quotation . Many thanks  !
