Lyjj-II Insulating Oil Breakdown Voltage Tester with Mobile

Lyjj-II Insulating Oil Breakdown Voltage Tester with Mobile
Price: US $ 1000-10000/Set
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal

Product Specifications


Prod Model: LYJJ-II
Structure: Mobile
Mechanical Principle: Ordinary
Voltage: 380V/50Hz or at User's Option
Folw Rate: 0-80kv

Product Description

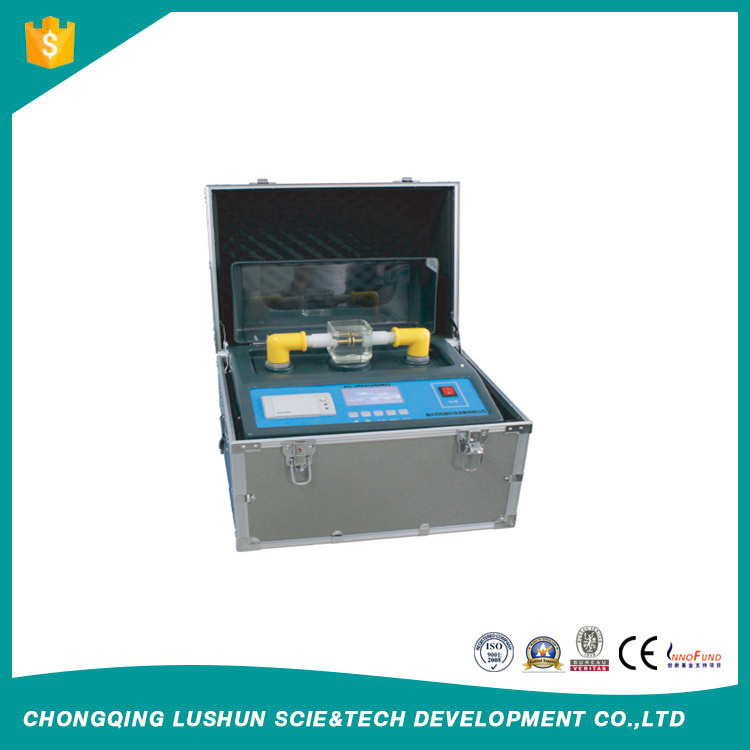

LYJJ-II Type Insulating Oil Dielectric Strength Detecting Instrument

Main Functions & Advantages:
 Uses microprocessor to automatically accomplish works of boosting, remaining, stirring, standstill, calculating, and printing, carries through the dielectric strength test for the oil under voltage from 0 to 80KV.
 Large scree liquid crystal displayed in English.
 It is easy to operate. It can accomplish the dielectric strength test for 1 cup of oil as per the user's simple preset. And 1 to 6 times of breakdown voltage value and circling times shall be stored and its thermal printer shall print the breakdown voltage value per time and also its average value after the test.
 It is with the function of power down remaining, and can store 100 of test results. And it can also display the actual environmental temperature and humidity.
 It can boost the voltage at a constant speed, and its voltage frequency corrects to 50Hz, thus to ensure the test to be controlled easily.
 With the functions of over-voltage, over-current, and limiting to safeguard users.
 With the functions of testing temperature display and system clock display.
 It is equipped with standard RS232 connector to set up communication with a computer.

 Main Technical Index:
 Output Voltage: 0~80KV (optional)
 Time of Voltage Boosting: 1~9 times (optional)
 Suitable Temperature: 0ºC~45ºC
 Voltage Distortion Rate: <3%
 Voltage Boosting Capacity: 1.5KVA
 Suitable Humidity: <75%RH
 Voltage Boosting Speed: 0.5~5KV/s (adjustable)
 Testing Precision: ±3%
 Overall Dimension: 465mm×385mm×425mm
 Time of Standstill: 15min (adjustable)
 Supply Voltage: AC220V±10%/50Hz±1Hz
 Weight: 29Kg
 Interval Time of Voltage Boosting: 5min (adjustable)
 Power: 200W

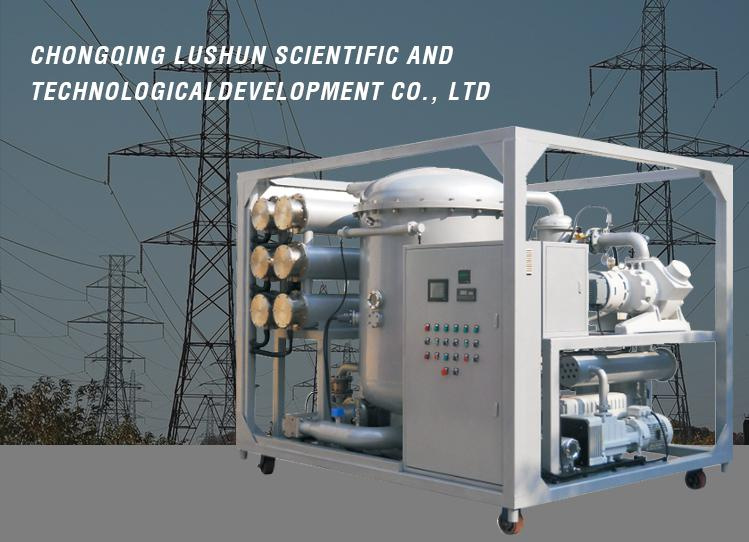

Chongqing Lushun Scientific and Technological Development Co., Ltd., is a high-tech enterprise for researching, designing, developing, and producing vacuum oil purifier. With its continuous drawing of lessons, unremitting innovation and borrowing of advance technology from both at home and abroad, Lushun oil purifier company is now becoming a professional manufacturer of oil-filters which are excellent in quality, capable of standing wear, complete in various styles. And its products are widely applied to various sectors such as electric power, petroleum, chemical, metallurgy, mine, mechanical, aviation, ship, railway, pharmacy and edible oil processing.

Though highly acclaimed and favorably accepted by numerous customers and possessed of the right to import and export, to secure the high quality of our products, we conduct our manufacturing in strict accordance with the standard JB/T5285-2001 by Ministry of Machine Building, standard DL/T521-93 by Ministry of Power Industry.

With strong technology development, advanced products mass-production, perfect quality control, smart market design, and excellent after-sale service, Lushun Oil Purifier Company has formed a rigorous management system. And every link is in its production process: Purchasing of components, packing, storage is in strict compliance with standard of ISO9001: 2000. To secure the high quality of our products, every oil-filter is checked and put into trial-running. It follows the domestically-pursued principle "the requirement of the next working procedure imposes a command for the early working procedure" that secures the good quality of its products in the working process.

Guideline for the Quality

First-class quality, satisfied services, leading Enterprise in the world.

Aim of the Quality

Qualified products, satisfactory quality, reasonable price, perfect after-sales service for customers both at home and abroad.
