Product Specifications
| Prod Model: |
CSH01-A2P-03 |
| Markets: |
North America,South America,Eastern Europe,Oceania,Eastern Asia,Western Europe |
| Size: |
A2 Portrait(Customized Sizes Available) |
| Power Source: |
AC110V-240V |
| Electric Current Type: |
DC12V |
| Emitting Color: |
White |
| Life: |
50,000h |
| Type: |
Ultra Slim Light Box |
| Usage: |
Advertising |
| Material: |
Acrylic |
| Shape: |
Rectangle |
| Suitable For: |
Indoor |
| Installation: |
Table Putting |
| Pringting Carrier: |
Inkjet Film |
| Style: |
Modern |
| Certification: |
UL |
Product Description

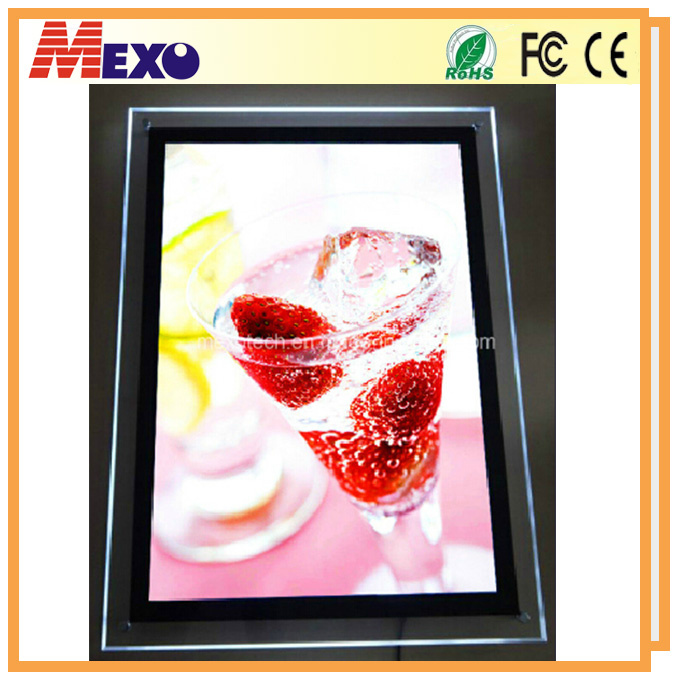

Features of Acrylic Ultra Slim Led Advertising Light Box(Fasten bolt open), ultra slim, crystal frame, eco-friendly, nice looking; High brightness, fasten bolt open, easy to change pictures/posters; Applied wtih CNC engraving with diamond blade, lightwave diffusing evenly.
1. Light source: High Luminance LED Strip.
2. Open Method: Face plate affix to LGP by fasten bolt; Picture behind face plate.
3. Install Method: Wall mounted, hanging from the ceiling or against the wall or table putting can be available.
4. Light Color: Customized available (normally white
5. Thickness: Super slim, minimum 6 mm.
6. Powered By: 110-240V adaptor, Battery Optional.
7. Low Carbon: Low heat, no noise, no pollution, safe, energy saving.
8. Long life span: 50, 000~100, 000hour
9. Size: Customized available.
1. Light source: High luminance SMD LED strip (3528/5050/5630).
2. Temperature color: Pure white / cold white / warm white (customized).
3. LGP Material: 6~8mm acrylic board.
4. LGP Technology: Advanced CNC diamond blade cutting, better than laser-cut.
5. Face Plate: 1~3mm acrylic sheet.
6. Frame Size: Shiny acrylic, extension of LGP.
7. Thickness: Super slim, minimum 6mm.
8. Single-sided or double-sided available.
9. Powered supply: AC Input 110 to 240V, DC Output 12V adapter.
10. Sensor (automatic power switch): Optional.
11. Low carbon: Low heat, no noise, safe and energy saving.
12. Long lifespan: 50, 000 to 100, 000 hours.
13. Install proposal: Hanging with steel cord.
14. Open method: Screw fasten / finger curve / magnetic.
15. Standard A0 to A5 size (customized size available).
16. Application: Indoor exhibition, advertising or ornament.
| Category | Cdrystal Single Side Hanging Led Light Box |
| Item No. | CSH01-A1 | CSH01--A2 | CSH01--A3 | CSH01--A4 | CSH01--A5 |
| Display Proposal | Vertical |
| Picture Size (mm) | 594*840 | 420*594 | 297*420 | 210*297 | 148*210 |
| Visual Size (mm) | 589*835 | 415*589 | 292*415 | 205*292 | 143*205 |
| Frame Size (mm) | 709*955 | 515*689 | 382*505 | 290*377 | 218*280 |
| Thickness (mm) | 7 | 7 | 7 | 7 | 7 |
| Packing Size (mm) | 1000*770*90 | 730*560*90 | 570*460*90 | 430*340*90 | 330*268*90 |
| Gross Weight (kg) | 11 | 5.3 | 3.1 | 2 | 1 |
| Cubic Weight (kg) | 14 | 7.5 | 5 | 2.5 | 2 |
| Lighting Proposal | Double Long Edge | Double Long Edge | Double Short Edge | Single Long Edge | Single Short Edge |
| Power Source | Input AC ~110-240V, Output 12V Power Adaptor |
Located in Shenzhen, the window of China, Hawkspace is a manufacturer of LED back-lite application products since 2006, our products are applied with advanced CNC V-cutting engraving acrylic LGP (light guiding plate) and LED edge-lite. LED is ideal for energy saving and acrylic looks crystal, so our products are well met with the trend of lower carbon and fashion life, since 2007 we have exported 500, 000+ sets of LED light panels to Europe, North America, Australia as well as Asia. With solid OEM / ODM capacity and rich experience in foreign trade, Hawkspace can provide high quality product and good services to our valuable customers.
As a professional manufacturer, our young and passionate team is working hard to develop the best LED lighting panels for building an eco-friendly world. With the feature of energy-saving and ultra slim body, Mexo products are very good for and widely used in the fileds of --
1 Super Slim Light Box, for advertising and display;
2 Photo Frame with back light;
3 Ceiling Lamp, for either resident house or office;
4 Light panels for Home Decoration;
5 Crystal Lighting Giftwares...
Welcome to contact us when you need any further information of our products, Hawkspace offers not only high performance-price products, but also prompt and professional service, we are awared that long term business is based on long term loyalty and stable quality.
Welcome to Hawkspace for our Win-Win business!
