Product Specifications
| Prod Model: |
MY-1300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Mintech |
| Model Number: |
My-1300 |
| Operation: |
Touch Screen or Button Panel |
| Cutting Angle: |
0-60 Degrees to Be Any Adjusted |
| Cutting Mode: |
Spindle Feeding |
| Working Length: |
1300mm (or Unlimited) |
| Workable Material: |
Acrylic, PVC, Aluminum.etc |
| Quality: |
High Quality |
| Price: |
Competitive Price |
| Export Markets: |
Global |
| Automation: |
Automatic |
| Type: |
Polishing Machine |
| Application: |
Acrylic |
| Type For Cutting Machine: |
Polishing Machine |
| Type For Fold-bending Machine: |
Cutting & Polishing |
Product Description

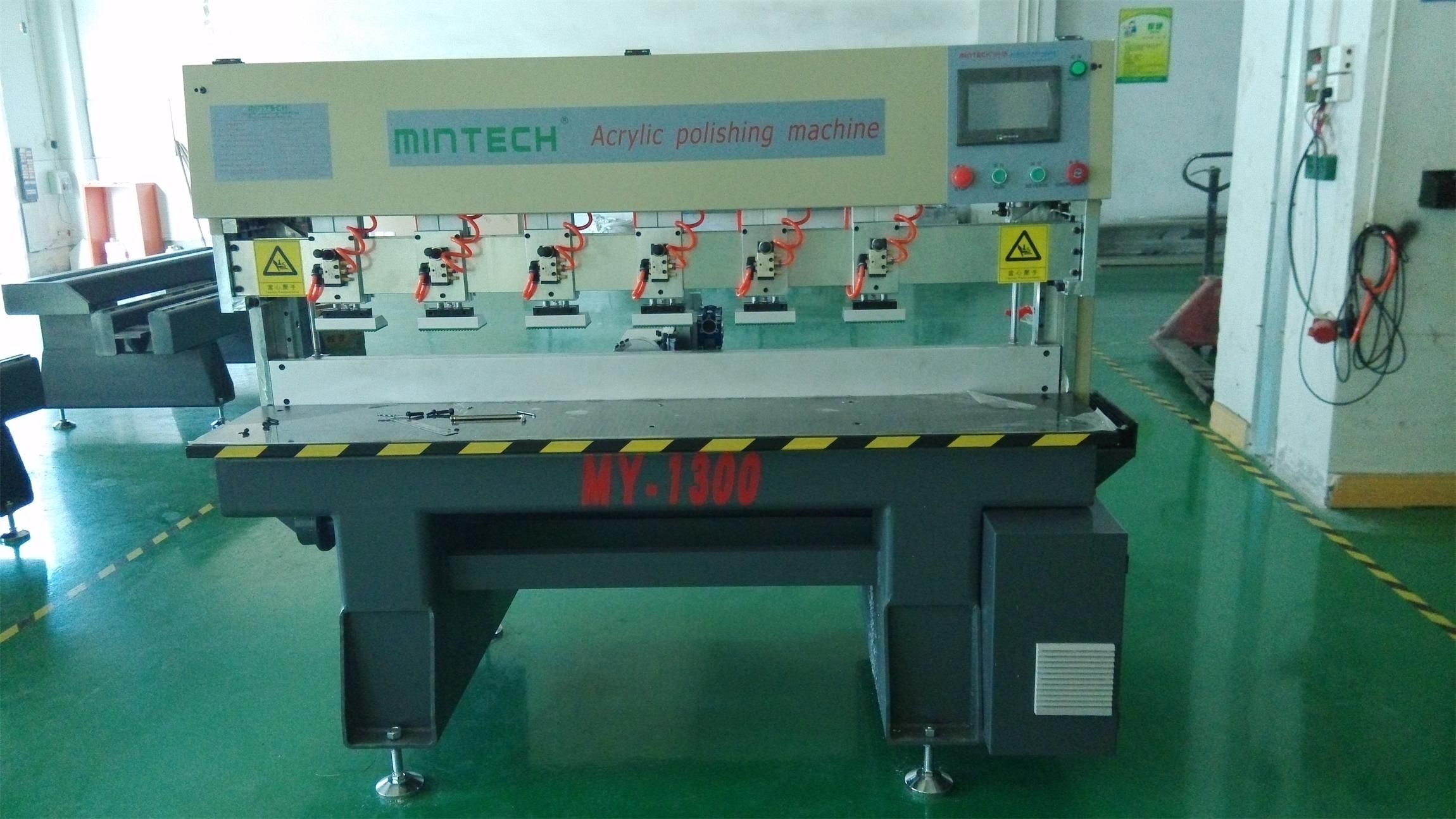

MY-1300 acrylic polishing machine:
1. Acrylic polishing machine is a dedicated polishing acrylic material equipment, it uses the diamond tool or PCD tool on the acrylic edge cutting to get mirror effect, such as: Organic glass, acrylic, LED etc.
2. Acrylic diamond polishing machine eliminates the traditional polishing process (such as colth round polishing or flame polishing), a machine to save the traditional manual 25 workers.
3. After polishing the product angular, transparent, bright and clean, good linearity, no dust, low loss. It is suitable for high-grade acrylic products, precision polishing crystal products and LED products, the products with good quality and high efficiency, is one of the indispensable equipment for the production of acrylic products manufacturersAdvantages:1).Working length is 1300mm or unlimited.
2).0°-60° angles to be any adjusted
3).Three pcs cutting tools to accelerate the polishing speed,and polishing surface to get mirror effect.
4).The operation is simple , easy and high precision
5). Product guarantee: One year for the machine except cutting tools . If the machine works 8 hours a day, about 5 months need to be resharpen.

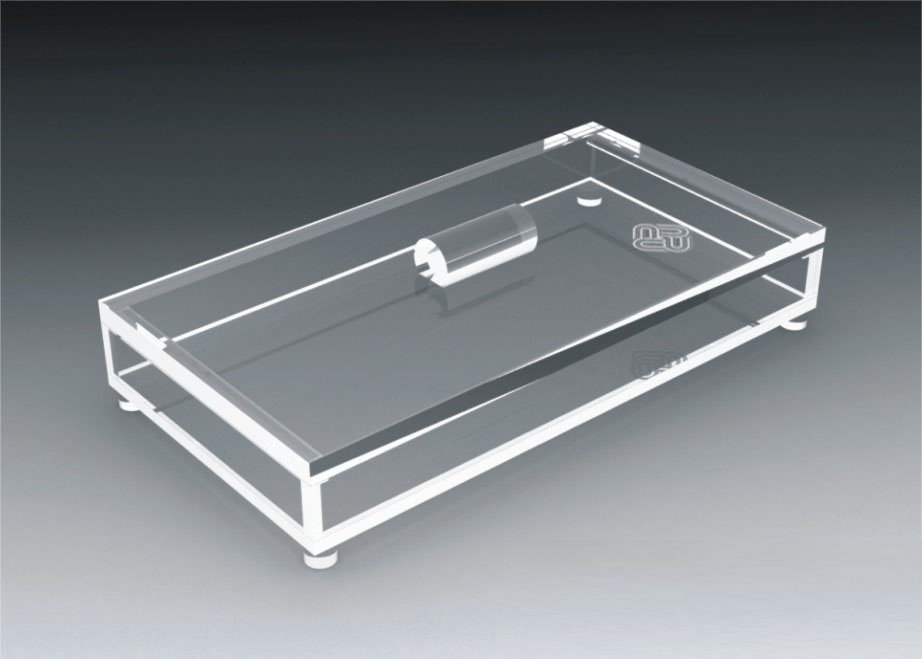

Acrylic polisher samples show:
| Technical Parameter: |
| Model: MY-1300 |
| Machine size: | 2200*980*1450mm | Complete power | 2KW |
| Power supply: | AC50-60HZ 3PH 380V/220V | Complete weight | 1350KG |
| Principal axis speed | 0-9000r/min | Principal axis depth cut | 0-1mm |
| Cutting Speed | 0-1000mm/min | Cutting manner | Principal axis feeding |
| Cutting angle | 0-60° | Work area | 1300 * 100mm |
| Compressed air | 0.6-0.8Mpa | Size of dust mouth | 100mm |
