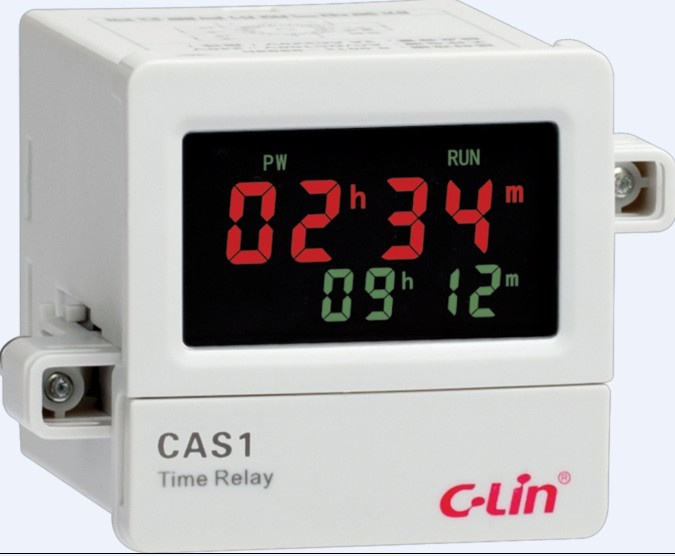

Liquid Crystal Display Timer (CAS1-NB Series)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
Product Specifications
| Prod Model: |
CAS1-NB01; CAS1-NB01M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Industrial |
| Theory: |
Digital |
Product Description
Specification| Panel size | Operating mode | Setting&display mode | Output contact | Input signal control | Installation mode | Delay range | Model |
| 48×48mm | multi-function delay | light touch switch with LCD | 2C time delay | reset, start | panel type, device type, 35mm guide rail | 0.001s~9999h | CAS1-NB01 |
|
| back-panel wiring type | CAS1-NB01M |
| Rated supply voltage | AC/DC100V~240V 50Hz; DC24V |
| Operating voltage fluctuation range | 85%~110% |
| Input mode | no voltage input(short circuit.open circuit) |
| Minimum signal input time | 0.1s |
| Contact capacity | 3A AC220V(Resistive) |
| Ambient temperature | -5ºC~40ºC(no ice) |
| Ambient humidity | If the ambient temperature is 40ºC,the RH≤50%.
It allows higher relative humidity in a lower temperature.
For example,when the ambient temperature is 20ºC, the RH≤90%.
Special measure is needed for occasional condensation
produced by temperature changes |
| Altitude | ≤2000m |

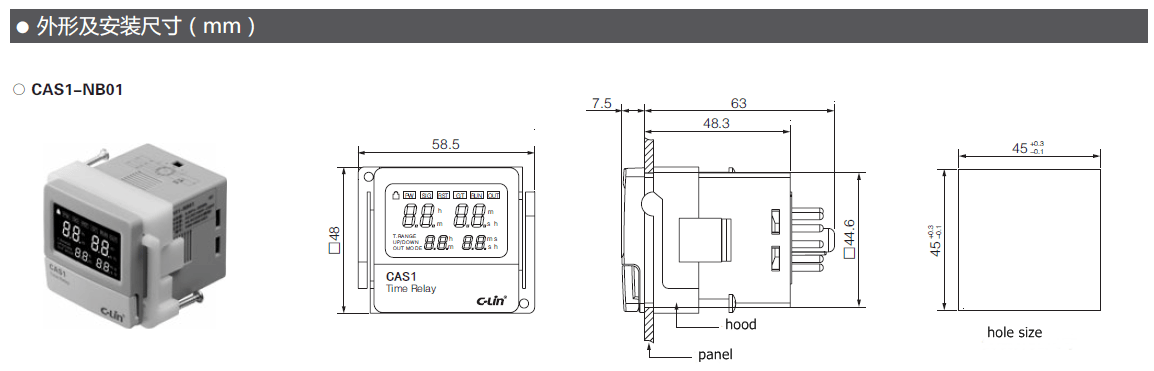

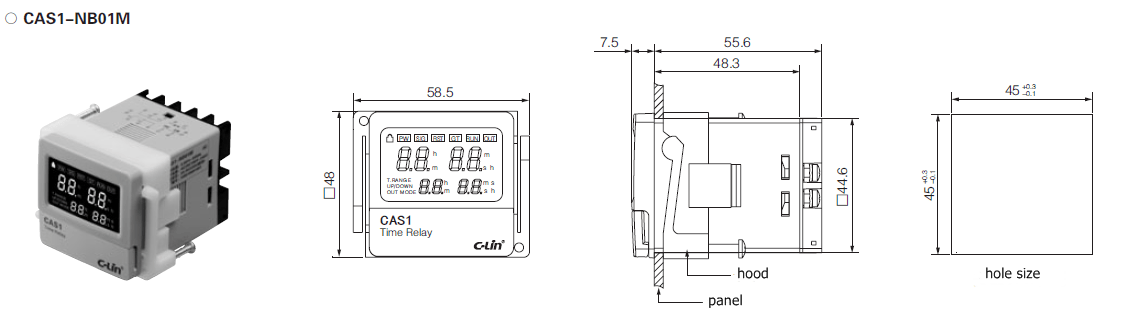

Outline Dimension
Note:Please choose the specific model from the above table when enquiry (e.g.:CAS1-NB01) so that we can quote for you immediately.
Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.
Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.
The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.
Xinling is ready for creating a magnificent tomorrow together with you!
