Product Specifications
| Prod Model: |
JZYW-200AL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
0-100Kg |
| Power Source: |
AC220V |
| Type: |
Interface Tensiometer |
Product Description

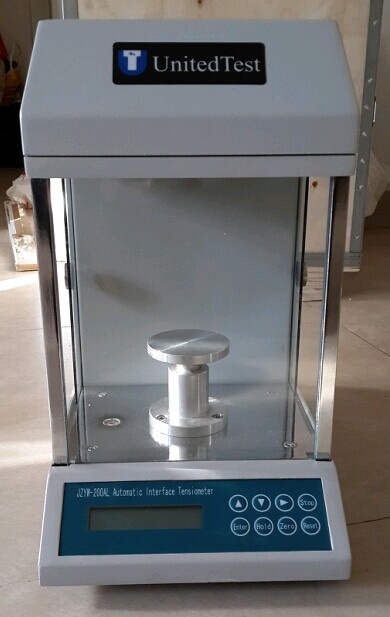

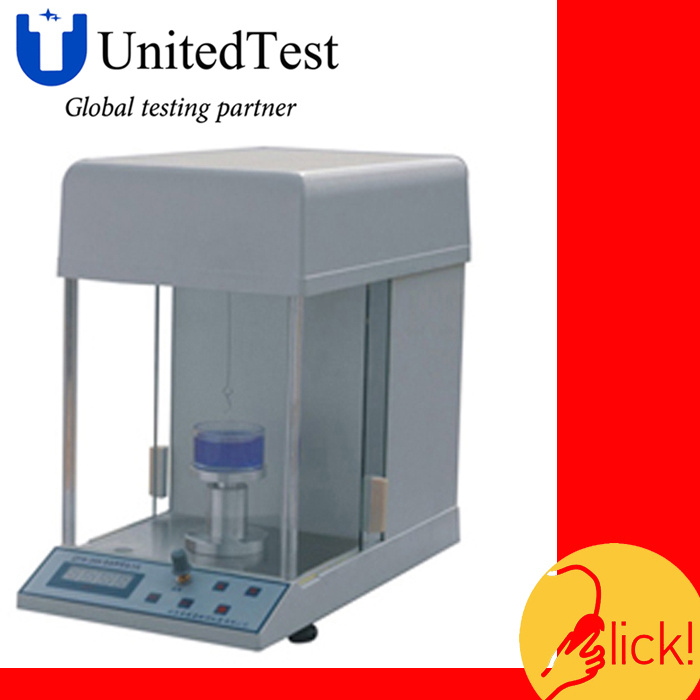

JZYW-200AL LCD Display Interface tensiometer is an ideal device to determine liquid surface tension force. Widely used to inspect the insulation oil materials in irrigation works, electric power department; Or research and education work in petroleum, chemical engineering, science academy.
1, Mainly consist in platinum ring, platinum torsional wire, differential sensor and data processing system etc.

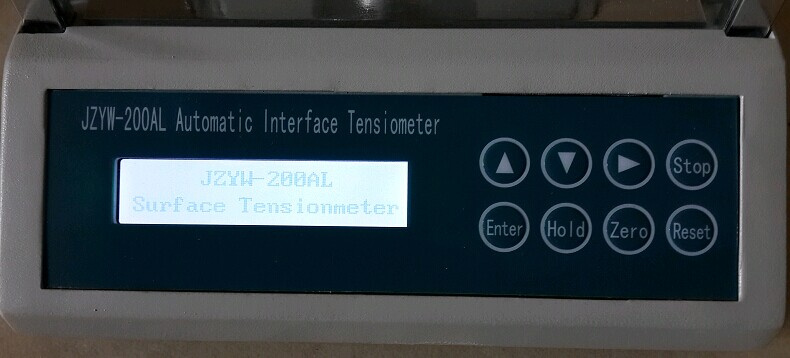

2, LCD Digital display test result, with peak value holding function, test table moving automatically.
| Model | JZYW-200A | JZYW-200AL |
| Display mode | Digital | LCD |
| Measuring range | 0~199.9mN/m | 0~200mN/m |
| Measuring mode | Automatic |
| Min. resolution | 0.1mN/m | 0.01mN/m |
| Pt ring radius | 9.55mm |
| Pt wire radius | 0.3mm |
| Dimensions(L*W*H) | 400mm× 220mm× 350mm |
| Frame Net Weight | 11Kg |
| Standard accessory | Frame, platinum ring, Torsion wire, Pothook, Glass cup, 500mg standard weight, manual etc. |
