Product Specifications
| Prod Model: |
CSH01-A3L |
| Markets: |
North America,South America,Eastern Europe,Oceania,Eastern Asia,Western Europe |
| Size: |
A3 Landscape(Customized Sizes Available) |
| Thickness: |
Super Slim ,Minimum 6mm |
| Power Supply: |
Cell Photo Charger/ Rechargeable Batteries |
| Lighting Resource: |
SMD LED Light Strip (SMD3014) |
| Lifespan: |
More Than 50,000 Hours |
| Type: |
Ultra Slim Light Box |
| Usage: |
Advertising |
| Material: |
Acrylic |
| Shape: |
Rectangle |
| Suitable For: |
Indoor |
| Installation: |
Ceiling Hanging |
| Pringting Carrier: |
Inkjet Film |
| Style: |
Modern |
| Certification: |
UL |
Product Description

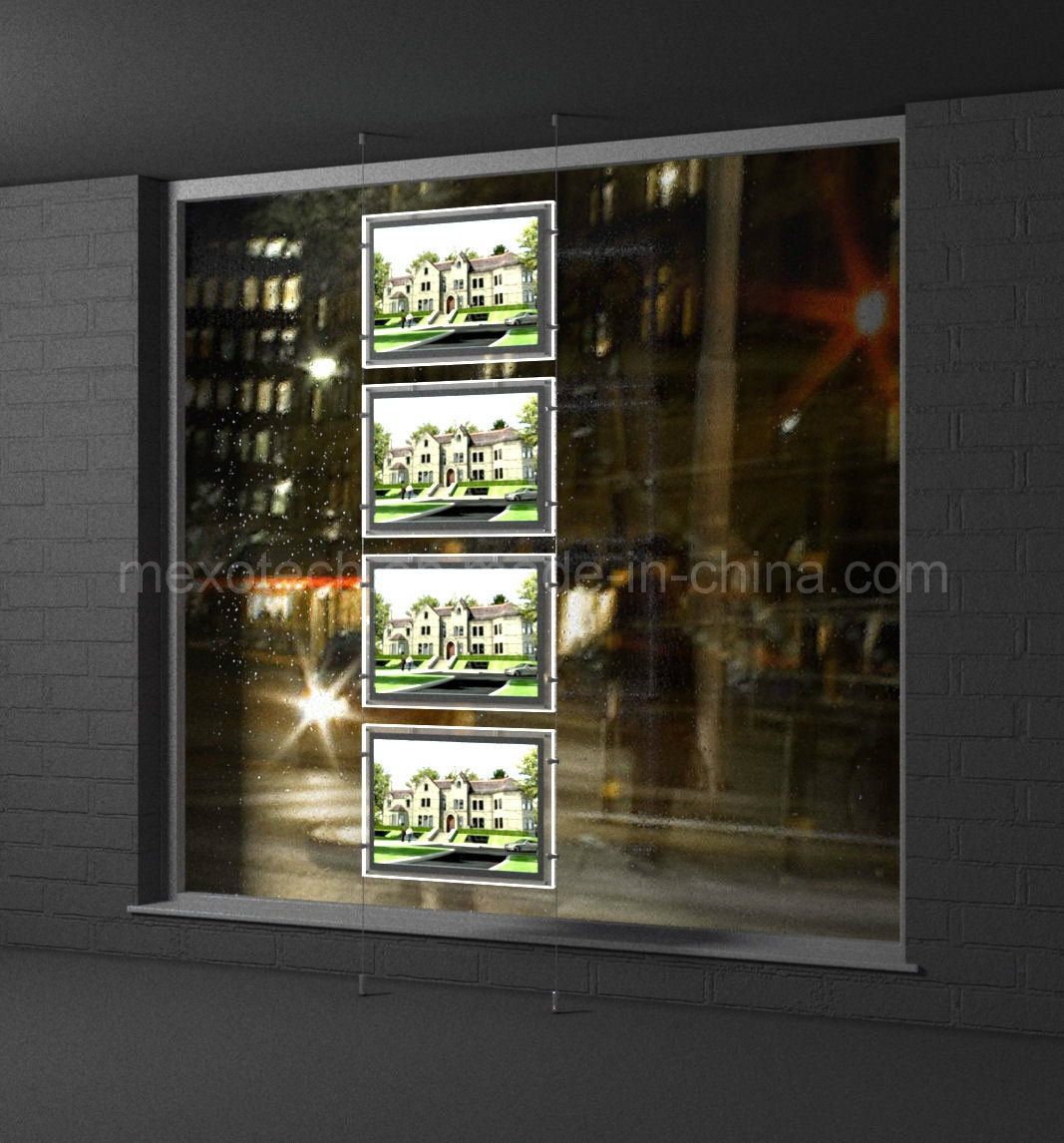

High Quality Window Display LED Backlit Crystal Slim Advertising Lightbox:
This crystal light box is supper slim, minimum thickness is 6mm only. At the same time combines an unique LED lighting panel which distribute lightwave evenly to all the surface of light box. Creating not only unite bright image, but lighting contour that shows a surrounding lighting frame. It achieves a beautiful final product look bright and elegant.
Product feature:
1. High quality optical acrylic sheet lens, led stripe built-in light guide panel (LGP) in middle. LGP with?CNC engraving technolog, which make the light on the surface evenly.
2. Light source: High Quality, High Brightness SMD LED Light Strip (SMD3014/ SMD3528/ SMD2835/ SMD5630)
3. Lifespan more than 50, 000hours, energy-saving.
4. LGP: Acrylic sheet as the light guided plate with grid carving guide light technology, high brightness, and the light on whole surfaces is very evenly and soft;
5. Graphic: Magnet, finger curve or fasten bolt open can be optional, easy to change pictures inside.
6. Working voltage is DC12V, power by AC110V-240V to DC12V adapter.
7. Application: Widely used for advertising , exhibition, menu and brand board displaying or decoration in airport, station, commercial shop, shopping mall, , movie house and public places, large exhibition, bathroom, dressing room, etc.
8. Packing: Air bubble film inner packing, each will be packed individually, and several pieces will be packed in one honey-comb master carton..
| Category | Crystal Acrylic LED Light Panel |
| Item No. | CLP02-A1 | CLP02-A2 | CLP02-A3 | CLP02-A4 | CLP02-A5 |
| Display Proposal | Vertical |
| Picture Size (mm) | 594*840 | 420*594 | 297*420 | 210*297 | 148*210 |
| Visual Size (mm) | 589*835 | 415*589 | 292*415 | 205*292 | 143*205 |
| Frame Size (mm) | 709*955 | 515*689 | 382*505 | 290*377 | 218*280 |
| Thickness (mm) | 7 | 7 | 7 | 7 | 7 |
| Packing Size (mm) | 1000*770*90 | 730*560*90 | 570*460*90 | 430*340*90 | 330*268*90 |
| Gross Weight (kg) | 11 | 5.3 | 3.1 | 2 | 1 |
| Cubic Weight (kg) | 14 | 7.5 | 5 | 2.5 | 2 |
| Lighting Proposal | Double Long Edge | Double Long Edge | Double Short Edge | Single Long Edge | Single Short Edge |
| Power Source | Input AC ~110-240V, Output 12V Power Adaptor |
