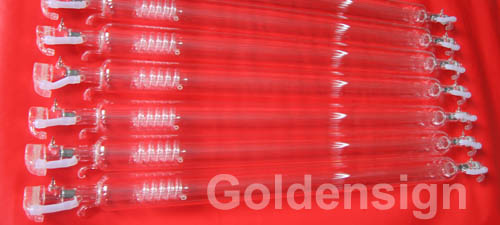

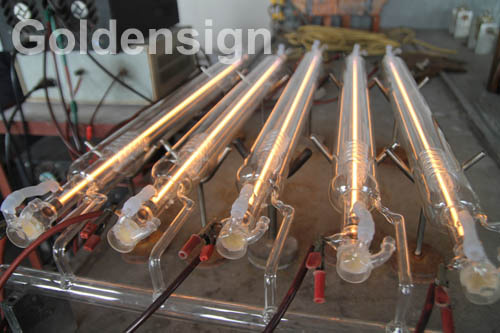

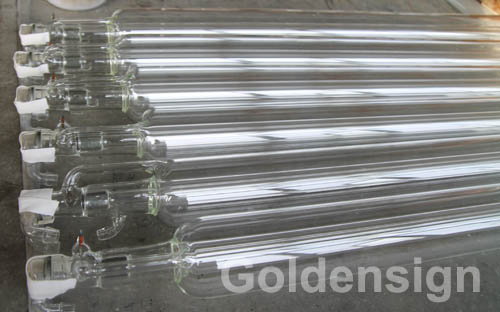

Laser Tube for Laser Engraving Cutting Machine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,others |
| Min Order: |
30/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Product Specifications
| Prod Model: |
250W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model/Length (mm): |
PU450 |
| Outer Diameter (mm): |
50 |
| Output Power (W): |
17-25 |
| Rated Power (W): |
25 |
| Ignition Voltage (Kv): |
14-15 |
| Ignition Current (Ma): |
3-5 |
| Working Voltage (Kv): |
8-9 |
| Working Current (Ma): |
12-15 |
Product Description
laser tube for laser engraving cutting machine Shanghai Puri CO2 laser tube, 25W-50W, is mainly applicable in laser stamping, delicate engraving, parts of laser medical device, etc. Puri laser tube with small power is excellent in good laser spot mode, enough power, long life, etc..
Working Principle: high-pressure discharge stimulate high concentration CO2 to generate laser.
Laser Wave Length: 10.6um.
Laser Mode: low order mode.
Water-Cooling:purified water, appropriate temperature 10-35C.
Working Environment:temperature 5-35C, humidity 10-60%, clean environment, no serious pollution.
Working Current:12~16mA is appropriate (excessive current will affect laser power and laser tube lifetime.
Safety Demand:CO2 laser tube outputs invisible light, positive with high pressure, if necessary, eyewear is essential.
Laser State: Laser power will be attenuated when the laser tube is used at a certain time; If the laser is pink, it is in normal condition; if the laser is white, it means the laser power is attenuate. ( Laser tube is consumable, please change a new one when it can't meet demand due to attenuation. )
Laser State:
1, There are two points to support the laser tube at two sides, when you install the laser tube, the two points should be in 1/4 of the laser tube;
2,On the basis of cooling water above-in and below-out, if you rotate the laser tube slightly, it will affect laser spot and laser power.
Puri Laser, Stronger Power!
Some advantages of Puri laser tube:
1.We are the only manufacture which can produce from 40W laser tube to 400W laser tube. -- Can meet all your needs for CO2 glass tube;
2.Catalyst coating on discharge tube with unique electrode processing makes the laser output more stable;
3.All the tubes ≥80W can reach 8000-10000 hours lifespan.
4.Power is strong. Max power of 100w can reach 120W, max power of 150w can reach 180W.
5.Spot is small, circular, briliant and solid. When texting in acrylic, the hole in acrylic is small, deep and subuliform.
6.Used imported mirror, material is ZnSe while some other manufacture uses Ge.
Feel free to contact me if interested.
BTW, may I know which brand laser tube you are using now?
Thanks&Regards,
Winnie Chen
Shanghai Puri Laser Technology Co., Ltd
Cell:+86 15221358067
www.lasertube.cn
www.purilaser.com
