Product Specifications
| Prod Model: |
YH-8013 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
Laser Engraving Machine |
| Etching Machine Type: |
Electrical Etching Machine |
| Control: |
Automatic |
| Current: |
AC |
| Laser Type: |
CO2 |
| Usage: |
Metal |
Product Description
Quick Details
Application: Laser Engraving
Brand Name: YINGHE
Packaging & Delivery
Packaging Details: Hard carton
Delivery Detail: 3-5working days
Specifications

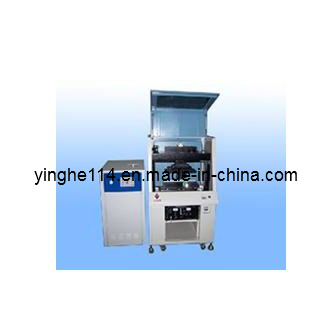

YH-8013Laser Sub-surface Engraving Machine primarily use the 3D cameras to take the three-dimensional pictures on the human body
YH-8013Laser Sub-surface Engraving Machine primarily use the 3D cameras to take the three-dimensional pictures on the human body, and then through the laser inner carving technology made dots in crystal, Many dots to form a three-dimensional images. This type of machine use 200Hz laser power supply to make a progress on speed and the dots are small light, and the equipment is strong stability.
Characters
High degree of automation, high reliability, can work continuously for a long time and engrave at high speed;
Suitable software is rich, can make various three-dimensional, plane characters, images and etc;
Non-touch style process ensures that the surface of the crystalline lens keeps its
The pattern of engraving is exquisite, crystal-clear and strong 3-dimensional sense.
Technical Specifications
CE Model/Parameter
YH-8013
Laser System
Pumped type
Xe lamp pumped
Laser Wave Length
532nm
Laser Frequency
200Hz
Max Pulse Power
10mj
Laser Power
3w
Q Adjust Method
Electro optically Q Switched
Pulse Wide
12ns
Laser Beam Quality
M215
Max Engraving Speed
6000-10000 Dots/min
Max Engraving Range
200*200*80
Laser Head
2
Resolution
500dpi
Foci
80mm
Focus Diameter
0.05mm
Cooling Method
Water cooling
Spare Parts
Xe lamp
Natural Life of Spare Parts
800-1500 hours
Applications Materials
All transparent material
Machine Spec
Dimension of Main Machine
900*770*1400mm
Max Crystal Size
220*220*80mm
Weight
330kg
Electrical Source
AC380V± 10% 50-60Hz
Power of Machine
4kw
Software
Special Chinese and English engraving software
Accuracy
0.005mm
Repeated Precision
0.005mm
Accuracy
50*50*80mm
25mins
10*20*30mm
8mins
150*150*800mm
60mins
