Laser for Engraving and Cutting
| Price: |
US $ 3300/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
PEDK -9060 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
Laser Engraving Machine |
| Usage: |
Woodworking |
| Power: |
High Power |
| Drive Type: |
Stepper Drive |
| Certification: |
SGS, Ce, ISO 9001 |
| Laser Type: |
CO2 |
| Control: |
CNC |
| Current: |
AC |
Product Description

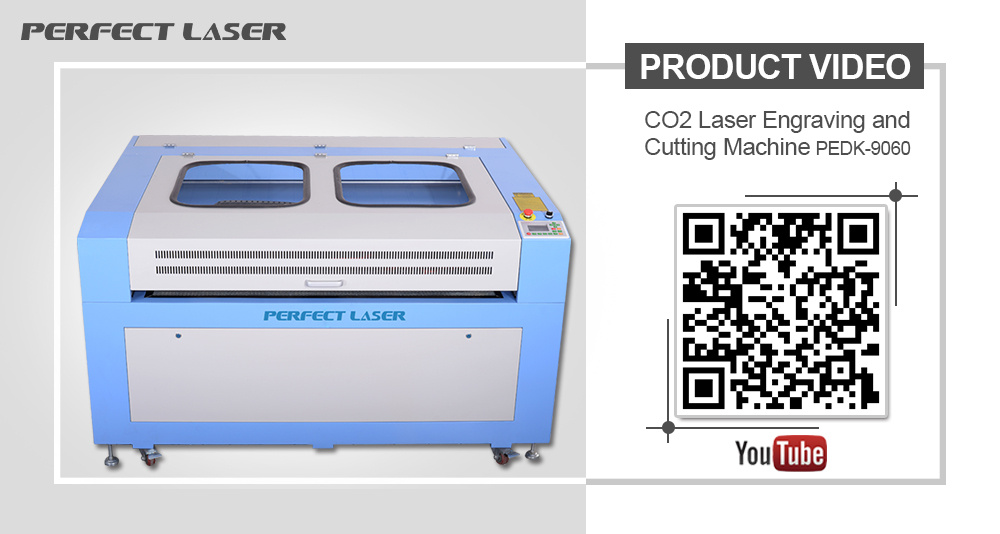

CO2 Laser for Engraving and Cutting
Model: PEDK-9060
Contact: Lily
Description:The laser cutting and engraving machine has been widely used in the fields of craft, plexiglass, architectural models, rubber plates, bamboo products and even can be used to realize laser engraving plastic, laser cutting plexiglass.

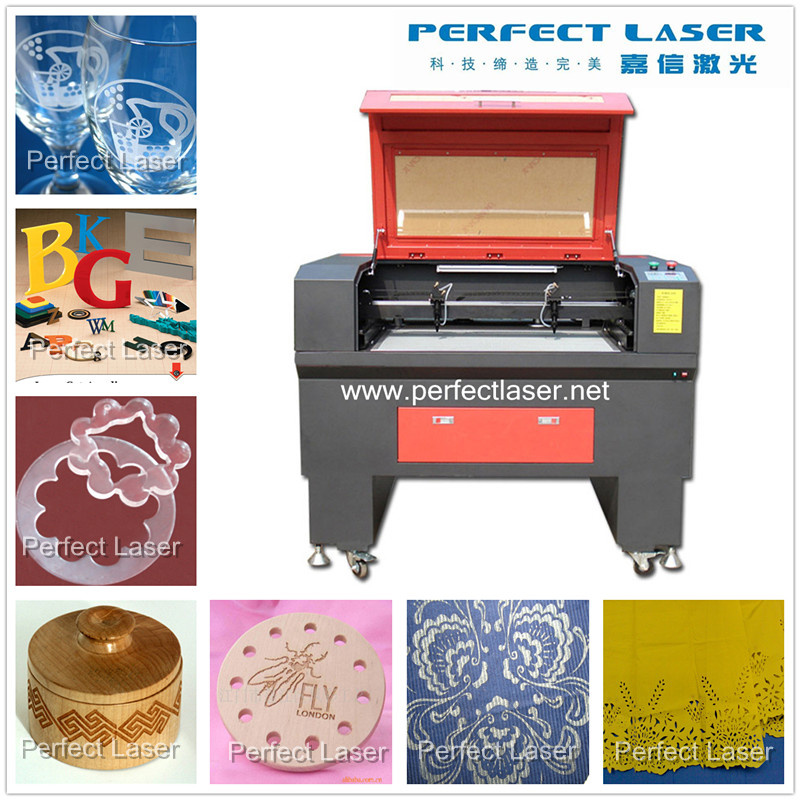

For cutting and carving on plexiglass products, acrylic art & crafts panel, lenses, wood &cutting carving, advertising materials, crystal characters, easel, packing boxes, models, toys and furniture etc. Due to its various applications, the machine can also be called laser cutting and engraving machine,laser engraving plastic,laser cutting plexiglass,plastic engraving machine,plexiglass laser cutting machine,laser engraving supplies.
Application Fields: Application Industry: Advertisement, arts and crafts, toys, car, mechanism, electron, as well as in trademarks, embroidery, clothing and other industries.
Special Features:Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.
Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
Special Front and back running-through design, the unique door for the limitless engraved materials through.
Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;
Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, 10000 hours Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1× 1mm little English character perfect.
Red Light Pointer realizes the exact position without laser.

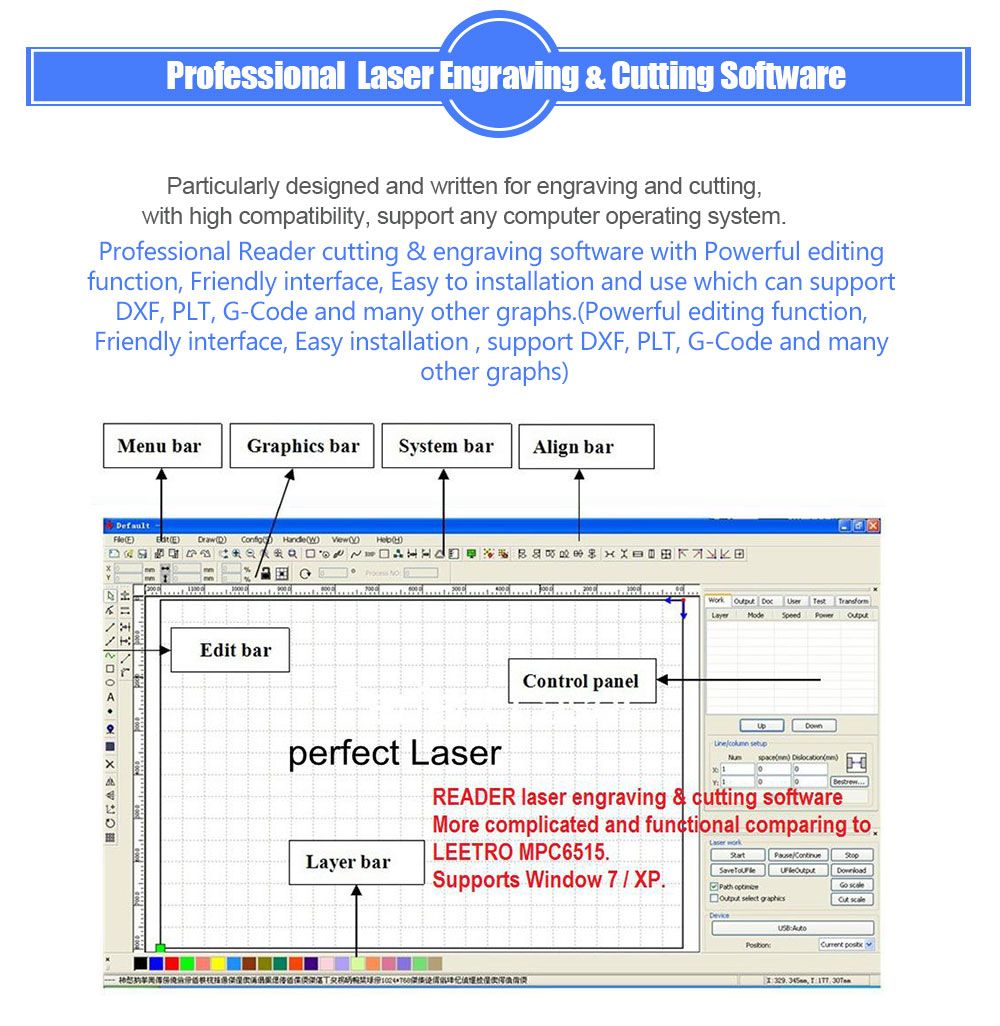

Matched Professional software is particularly designed and written for engraving and cutting, with high compatibility, support any computer operating system.
Optional Motorized up-down work table with Auto Focus Function, very good for precise focusing and different cutting depth requirement for lots of material;
Optional 3D Rotary System, engrave circumrotately 360 degree, applicable in column or cone work piece surface.
Optional Rolling and Automatic Feeding System, realize the long work piece automatically completely, such as one roller of cloth/fabric/leather/garment.
Optional Imported Ball Screw Rod, with high speed and accuracy, it is smoothly for laser head to move speedily and laser beam to reflect with high accuracy.
Technical Data:| Laser Type | Hermetic and detached CO2 laser tube |
| Laser Power | 60w / 80w / 100w / 130w |
| Engraving Area | 900×600mm |
| Engraving Speed | 0-60000mm/s |
| Cutting Speed | 0-10000mm/s |
| Repeating Location Accuracy | ±0.0125mm |
| Working Voltage | 220V ±10% 50HZ |
| Machine Power | 900w |
| Controling System | CNC professional controlling system |
| Supporting Graphics Formats | BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,CDR,DWG,DXF |
| Cooling Mode | CW-3000 Water Chiller with protection function |
| Auxiliary Devices | Exhaust fan & exhaust pipe |
| Cutting Platform | Professional honeycome / strip work table |
| Power Control Mode | Laser power and moving system cooperate |
| Control Software | Original Perfect Laser laser engraving and cutting software |
| Machine Size | 1400*960*1150mm |
he guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination. Except the artificial damage and wearing parts, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of quality period, the parts required to repair or change, if any, shall be paid.Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact -China Perfect Laser!
1):The exact material you want to engrave/cut? (wood, acrylic, cloth, fabric, leather, rubber, paper, plastic, marble....)
2):The cutting depthon above materials?(max thickness, 3 mm, 6 mm, 15 mm, 20 mm....)
3):The working area you demand? (max dimension of material, width*length, 600*400 mm, 900*600 mm, 1300*900 mm,1600*1000mm...)Working area and laser power can be customized.
4)After cut/engrave, what will be the material used for? (application)
5)Are you an end user or reseller?
Welcome for your inquiry soon.
Welcome to contact us for perfect laser engraving cutting solution
Contect me:
Perfect Laser Co., Ltd. (China)Contact: Lily / Sales Department
Tel: 0086-27-86791986 MP: 0086-13659889218 Fax: 0086-27-86775865
Add: HengRuichuangzhi Technology Park, No.13 YangQiaohu Road, Jiangxia District, Optical Village, Wuhan, Hubei, China(430200).
Perfect Laser (Wuhan) Co., Ltd. is a professional manufacturer of industrial laser equipment, located in China "Optics Valley" - Wuhan City. Since 1995, Perfect Laser focused on the development and production of various types of laser machinery and CNC equipment.
With over 20 years efforts and innovation. Our products have been exported to 180 different countries and regions. Our company has the European CE certificate, Germany TUV certificate, ISO9001: 2000 quality system certificate.
We are one of the most trustworthy company in central China among laser equipment manufacturers. Winning the honor of "Hi-tech Eenterprise" and "Famous Brand in Hubei Province", Perfect Laser willcontinue to embrace and create a better future with open mind.
