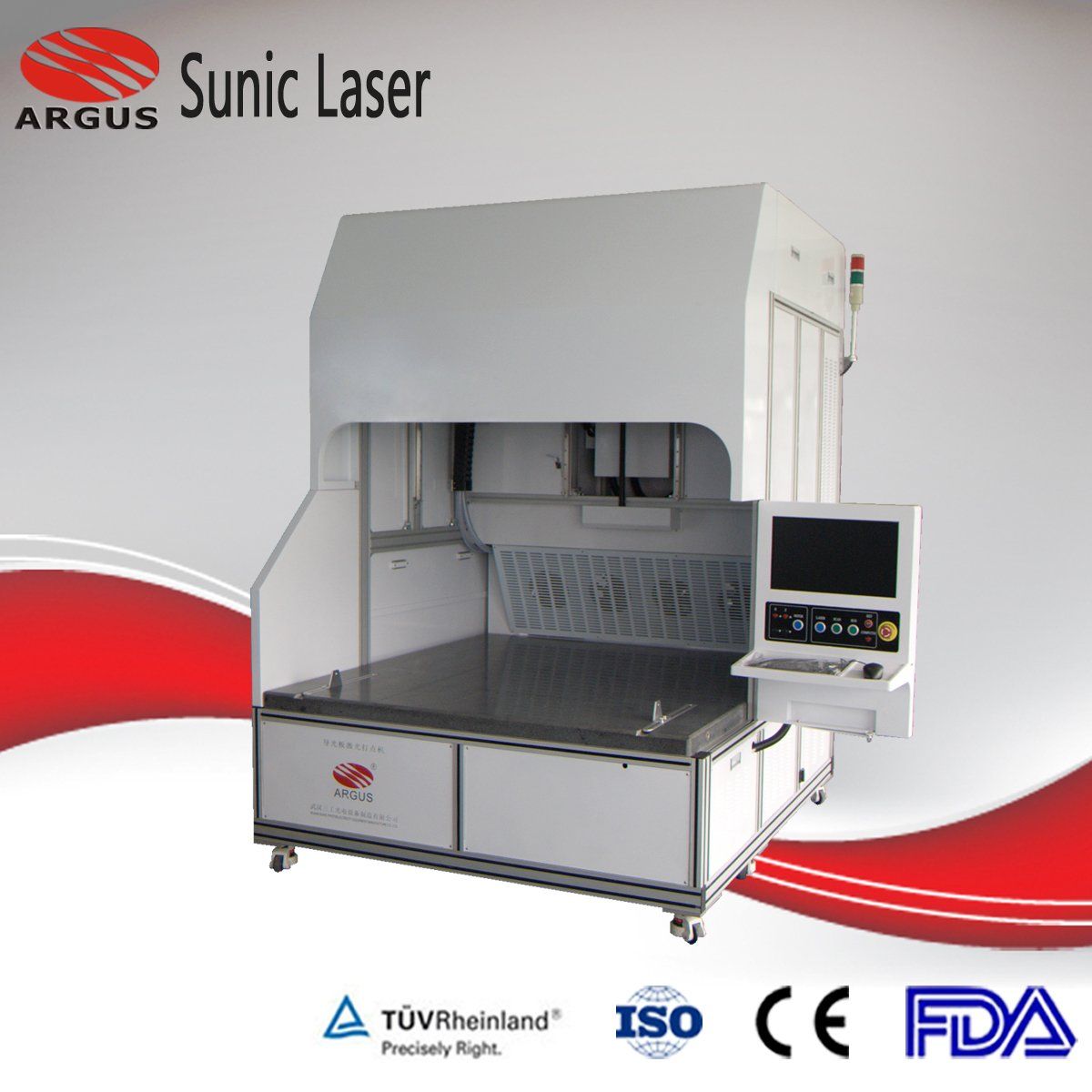

Laser Dotting Machine for Art Leather
| Price: |
US $ 35000-40000/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
SCM3000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max.Marking Area: |
1500X1500mm |
| Laser Power: |
250W/350W |
| Laser Source: |
Coherent CO2 Metal RF Laser Tube |
| Marking Speed: |
≤10000mm/S |
| Power Consumption: |
≤ 7 Kwh |
| Worktable: |
Marble Worktable |
| Laser Frequency: |
20kHz~200kHz |
| Scanner: |
CTI America |
| Repetition Precision: |
0.01mm |
| Min.Letter Size: |
0.3mm |
Product Description

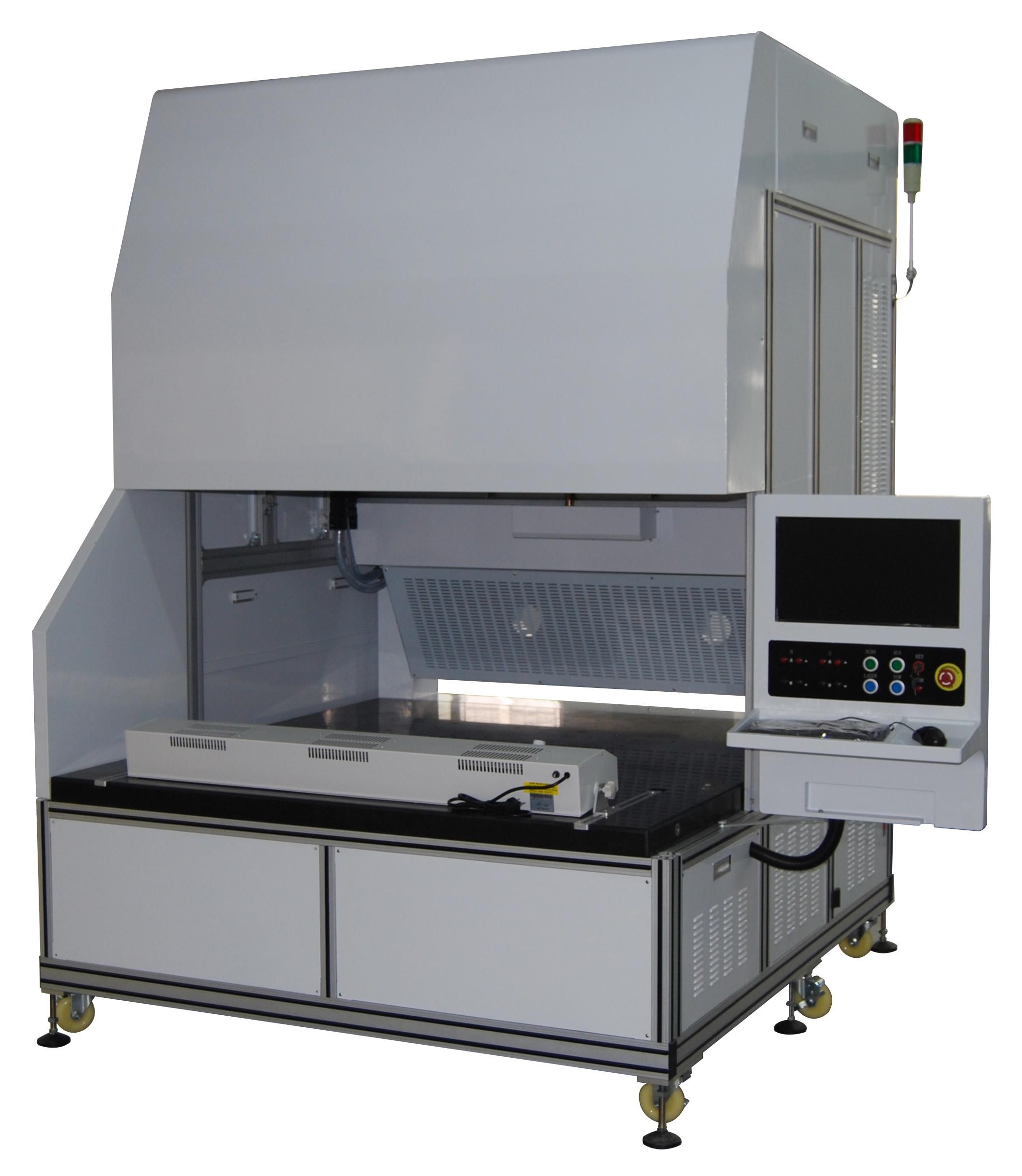

Machine Structure CO2 Dynamic Laser Marking Machine adopts imported laser tube and high speed galvo scanner, Sunic Laser self-developed linear 3D Dynamic Focusing System, device control system, self-developed Control software and the high precision thermostatic water cooling system. The host machine is as follow:
Technical Parameters| Model | SCM3000 |
| Max.Marking Area | 1500x1500mm |
| Laser power | 250W | 350W |
| Laser Source | Coherent CO2 metal RF Laser Tube |
| Marking Speed | ≤9000mm/s | ≤10000mm/s |
| Power Consumption | ≤ 7 kWh |
| Worktable | Marble Worktable |
| Laser Wavelength | 10.64μm |
| Laser Frequency | 20kHz~200kHz |
| Scanner | CTI America |
| Repetition Precision | 0.01mm |
| Min.Letter Size | 0.3mm |
| System Support | WIN 7 |
| Output Compatibility | Auto CAD, Photoshop, CorelDRAW etc |
| File Formats | PLT, DXP, BMP, JPG, AI etc |
| Software Character | Integrated Function of Dotting Design, Vector Drawing, Marking, Scribing and Cutting |
| Power Supply | 380V/50Hz~60Hz |
| Cooling Way | Circulation of Water Cooling |
LGP Laser Dotting Machine Standard Configuration| No. | Item | QTY | Origin |
| 1 | CO2 Metal RF Laser Tube | 1 | Imported from the USA |
| 2 | Galvo Scanner | 1 | Imported from the USA |
| 3 | 3D Dynamic Focusing System | 1 | Imported from the USA |
| 4 | Optical Lens | 1 | Imported from the USA |
| 5 | Exhausting System | 1 | Sunic Laser |
| 6 | IPC | 1 | High type |
| 7 | 19LCD | 1 | AOC |
| 8 | Control Software&motion card | 1 | Sunic Laser |
| 9 | Machine Structure | 1 | Sunic Laser |
| 10 | Industrial thermostatic circulation of water cooling system | 1 | Doluyo |

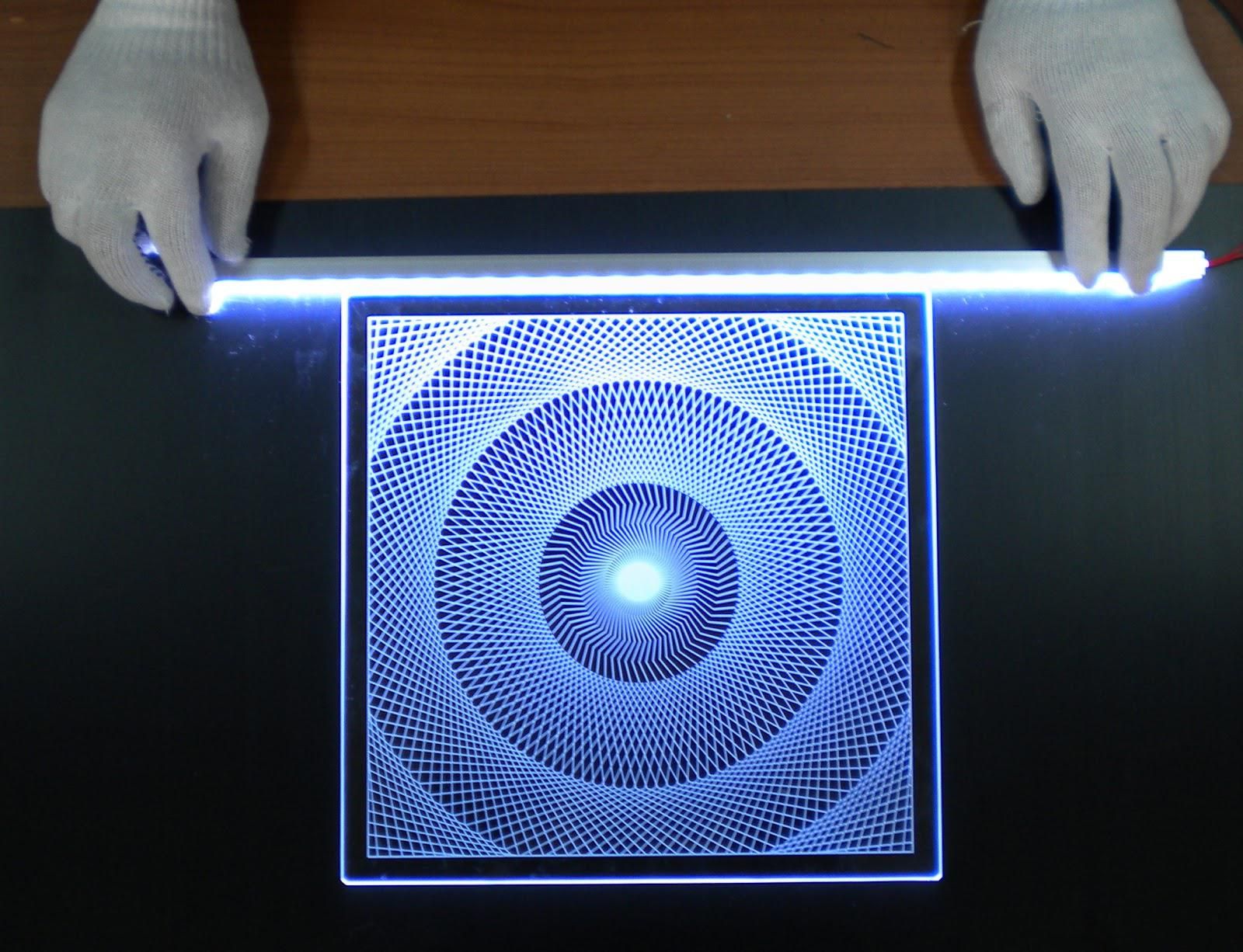

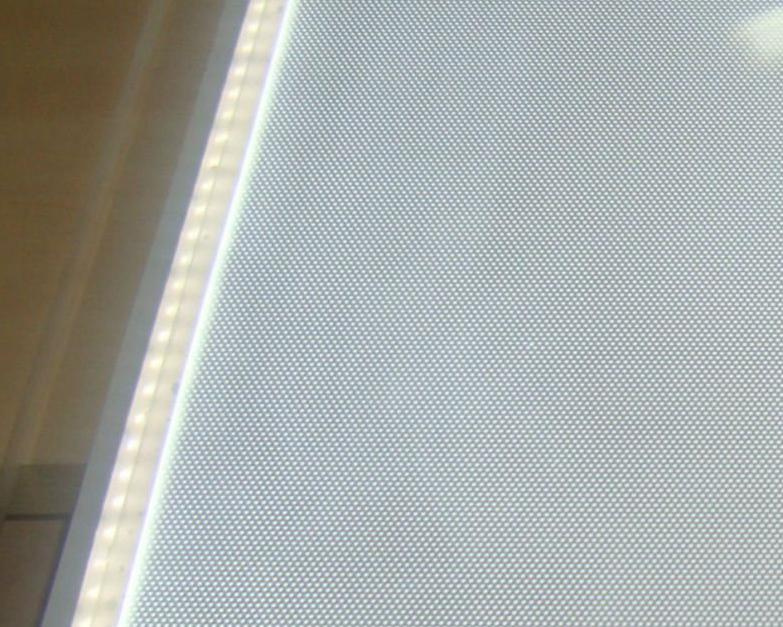

Samples
Our Certifications
Pre-sale service:
1) According to customers demands, provide relevant technical guidance.
2) Assist customers to design and make laser engraving/cutting solutions considering technical feasibility.
3) Provide equipment demonstration for customers to investigate, make samples and do test, etc.
After-sale service:
1) 1 year warranty for laser metal cutting machine;
2) Offer lifelong repair;
3) Engineers available to service machinery overseas.
4) Multi language service;
5) Offer 24 - hour technical support.
Training can be processed in the following ways:
1) Workers of customers can come to our factory in Wuhan, China to get the most professional hand-by-hand training.
2) We can send engineers to customers' country and do training for workers in customers' target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
3) Remote training through Internet tools like Team-viewer, Skype and other instant communication software.
Guarantee:
We offer free Two-year warranty and durable maintenance&repair support for the purchased machines. Within the warranty time, we are responsible for the cost-free repair once the equipment fail or the machines break down(except human factor and force majeure causes) and we shall offer the replacement parts for free(except consumed parts). During the non-warranty time, we just charge the flat cost based on actual cost of repair.
Wuhan Sunic Photoelectricity Equipment Manufacture Co.,Ltd (Sunic Laser) has been dedicated to the manufacturing of Laser equipment since 1998. We are specialized in designing, manufacturing as well as providing services for Laser processing machines and whole equipment for Solar PV production line. We offer complete solutions with Laser application for customers all over the world.
Our Laser equipment are widely used in solar PV production, IC elements production, leathering and clothing industry, advertising signs, decoration crafts, equipment spare parts, daily hardware, measurement tools, medical instruments, printing and packing industry, etc. Sunic Laser would like to be customer's technical consultant and support in Laser and solar equipment to make further development and progress together.
Q: Are you trading company or manufacturer ?
A: We are factory. And we have been in the laser field for 20 years.
Q: How long is your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for free charge, but customers should pay the courier cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
Please feel free to contact me if you have any questions or inquiries.
Contact: Bruce
Company: Wuhan Sunic Photoelectricity Equipment Manufature Co., Ltd
Add: 4# Huanglong shan North Road, East Lake High-Tech District, Wuhan City, China
Web: www.arguslaser.net
Mobile: 0086-15671685305
The Sunic Laser Co., Ltd began production in 1998 and is now one of the largest producers of industrial LASER equipment in China. With more than 200 employees (combined experience totals more than 1000 years! ), we have self-operation export and import rights to well over 80 different countries.
Since 1998, we have consistently weeded out older technology to implement the latest available technology in all of our 30+ LASER machines. The unparalleled growth of our company is evidenced in our four factory relocations over the last 7 years - each new premises allowing us to double the production capacity of the previous. Our sales of Scribing Machines are 85% domestic, making us the largest market occupier in this sector (in mainland China).
Aside from the Solar Industry, we supply a wide range of Marking Machines, Cutting Machines, and Engraving Machines that use the finest available German LASER sources where applicable. From cutting edge (no pun intended) Fibre LASERS to high-power CO2 LASERS, we will ensure that we provide you with the highest quality machine for your project - whilst maintaining a competitive price! Our mission is to provide you with consistently high quality in all areas of our business from the machines we make, through to our after-sales service. Our goal is to help you grow your business such that you come back to us for more of our quality products in the future.
