Product Specifications
| Prod Model: |
RYNY-1610T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control System: |
DSP Control System |
| Laser Type: |
Sealed CO2 Glass Laser Tube |
| Working Area: |
1600*1000mm(62.99*39.37inch) |
| Work Platform: |
Honeycomb Platform |
| Laser Power: |
60W/80W/100W/130W/150W |
| Pass-Thru Doors: |
Allow to Cut Extremely Long Materials(Max Thicknes |
| Interface: |
USB Connection ( Work in Windows XP, 2000,Vista,7) |
| Memory: |
64MB Buffer Memory |
| Driver System: |
Stepper Motor |
| Auxiliary Equipments: |
Exhaust-Fan, Air-Exhaust Pipe |
Product Description

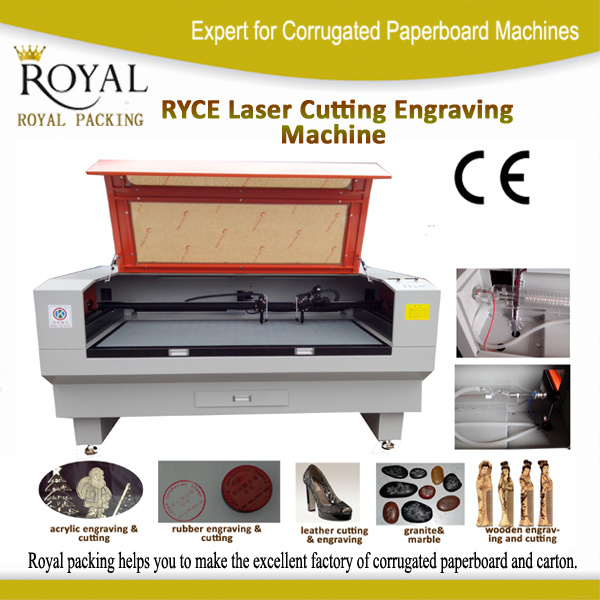

Laser Cutting Engraving Machine
Specifications:
| Control system: | DSP control system |
| Laser type: | Sealed CO2 glass laser tube |
| Working area: | 1600*1000mm(62.99*39.37inch) |
| Work platform: | Honeycomb platform |
| Laser power: | 60w/80w/100w/130w/150w |
| Pass-thru doors: | Allow to cut extremely long materials(max thickness 40mm) |
| Interface: | USB connection ( Work in Windows XP, 2000,Vista,7) |
| Memory: | 64Mb Buffer Memory |
| Driver system: | Stepper motor |
| Auxiliary equipments: | Exhaust-fan, air-exhaust pipe |
| Laser Tube life hours: | 3000hours |
| Repeating precision: | ±0.05mm |
| Moving system: | CNC controlling units |
| Cooling mode: | Water-cooling and protection system |
| Max speed: | 600mm/s |
| Working voltage: | AC110/220±10% 50/60Hz |
| Whole power: | <1250W |
| Operating temperature: | 0-45ºC(32° - 113° F) |
| Operating humidity: | 5%-95% |
| Controlling software: | Original sunylaser software |
| Graphic format supported: | BMP,PLT,AI,DXF,DST,JPG,CDR,HPGL,PNG,DSB,GIF,MNG, TIF,TGA,PCX,JP2,JPC,PGX,RAS,PNM,SKA,RAW etc |
| Compatible software: | Auto CAD, CoreIDraw X2/X3/X4, Photoshop etc |
| Resolution: | 1000DPI |
| Machine dimension: | 2150*1460*1150mm |
| Packing dimension: | 2250*1600*1300mm |
| Net weight: | 320kg |
| Gross weight: | 380kg |
| Packing: | Plywood case |
| Certificate: | CE FDA |
Standard accessories:
1) 2×Air pumps/Compressors for Air Assist ( for blowing off debris as the laser working).
2) 1×Exhaust fan/Blower with Tube ducts (install inside machine).
3) 2×industrial chillers(cool the laser tubes).
4) 2×Water protections(make sure water cycle is normal).
5) 1×USB Cable (connecting PC and laser).
6) 1×DVD (including software, user manual, guiding videos etc).
7) 2×Power cables.
8) 1×Tool box.
Optional accessories:
1) Motorized up and down worktable(used to engrave thick materials).
2) High resolution(for engraving extremely high quality photos, even 3D photos).
3) Rotary (for engraving round items).
4) Auto focus(help to get the best focus distance).
5) New red dot design(make the laser beam visible).
6) High pressure air compressure set(used to cut thick materials).
Shipping:
1) We will send the machine in 5 working days to your named seaport or airport.
2) We will arrange telex release for you or send original BL to you for customs clearance.
3) For shipping purpose, please tell us your phone number and detailed contact information after you confirm the order.
Payment terms:
1) We accept TT, if you want to use other way, please advise us.
2) We will start to prepare your order after you make the payment.
After-sales Services:
1) If you meet any problem or have any question about the machine and software, please feel free to contact us, we will help you to solve the problems as soon as possible.
Warranty:
1) The warranty of the whole machine is one year, the motherboard is two years, the laser tube's warranty is 3 months.
2) Motherboard, in first year, we will send the replacement for free.
3) Laser tube, in 3 months we will send you free replacement, normally you can use it at least one year.
4) Other parts, in one year we will send free replacement.
5) Mirror and lens, we will send you extra one lens and two mirrors for free with machine.
6) Beyond the date of warranty, we will charge you the replacements.
Workable Materials:
Wood, Paper, Leather, Cloths, Organic glass, Resin, Acrylic, Woolens, Plastic, Rubber. Ceramic tile, Crystal, Bowler, Bamboo, Marble, Granite, Tile, Delrin, Double-color board, Glass, Painted metals, Anodized aluminum, EVA, Shell, etc.
Our Features:
Motherboard:
Can setting the laser head's move distance, and have counting function.
Raster/Vector color Mapping
Change your engraving speeds and power by using color settings.
Stamp Engraving Settings:
Engrave stamps in a most easy way.
Pass-thru door:
Can cut extremely long materials, such as rolls of fabrics, cloths, leathers etc.
3D Engraving:
Engraving 3D photos directly.
Laser Manual:
Tell users how to set up a laser step-by-step, how to operate the machine, how to maintain the machine,how to deal with common problems.
LCD control Panel:
Set speed, power, and more controls directly from the LCD panel.
Water Protection:
The laser will stop working if the water pump is not working, protect the laser tube.
Voltage:
My laser can be used both 110v and 220v, 2 and 3 phase electric, no need transformer.
