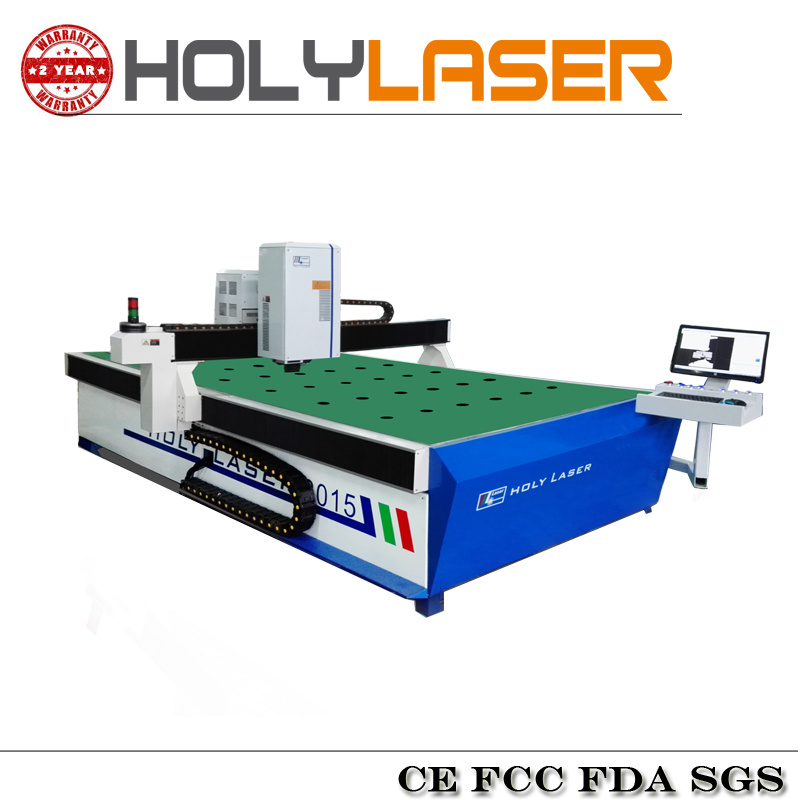

Large Size and Multiple Usage Glass Laser Engraving Machine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
Product Specifications
| Prod Model: |
HSGP-2513 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser System: |
Diode Pump Laser 532nm |
| Point Distance: |
0.07-0.02nm |
| Max. Speed: |
4,500dots/S |
| Total Power: |
1500W |
| Processing Surface: |
1300mm*2500mm*110mm(X*Y*Z) |
| Operating System: |
Windows XP; Win7 32 Bit |
| Power Supply: |
100-240VAC, 5A |
| Material: |
Crystal; Glass etc. |
| Batch Processing: |
Yes |
Product Description
IntroductionHSGP Series is a series of large size laser engraving machines which were designed by Holy Laser according to the state environmental protection policy used for the cold working process of glass or crystal products.
In the past the pickling and corrosion process of glasses will do badly harm to the environment. But now in contrast the laser engraving technology will do no harm to the environment and the engraved products will also be more vivid.
Both 3D and 2D patterns are able to be engraved in glasses and crystals by the laser engraving technology; it will surely bring us a revolution of the glass further processing industry.
The HSGP series do have a lot of different sizes that can fit our customers' personalized requirements.
Features
1. Widely application;available for large size of glass manufacturing with a high speed; depth relief is also available. Both 3D and 2D patterns can be engraved in a extremely high detail.
2. Environmental friendly: during the engraving there will be no pollution; no dust; no poisoned gas; no use of water and no need of chemical dyestuff
3. Power saving: among all the large size manufacturing equipments, the laser engraving machine may cost the least energy. About 2KW per hour
4. Long using life: there will be no contact between the products and the engraving equipment. It helps the equipment got a long using life.
5. Convenient operation: with the help of the air float device, glasses can be easily moved without scratching of the surface.
6. Easy to operate: it can help saving the labor cost. According to the different sizes of products, only one or two people can operate more than 5 equipments.Perfoemances | HSGP-2513 |
Laser system | Diode pump laser 532nm |
Operating temperature | 15ºC-30ºC |
Diode lifetime | About 25,000h |
Operating humidity | Less than 85%;no dewing |
Point distance | 0.07-0.02nm |
Operating environment | Clear; no corrosive gas |
Dia. of Dots | 40-80μm |
Operating system | Windows XP; Win7 32 bit |
Max. speed | 4,500dots/s |
Power supply | AC100-240V, 5A |
Resolution | 1,500dpi |
power supply instability | <10% |
Batch processing |
Yes |
Power frequency | 50/60HZ |
Positioning accuracy of X,Y,Z axis and the screw | 0.02mm/300mm |
Ground wire |
National standard of machine room |
Repeated location accuracy of X,Y and Z axis | <3μm,300mm |
Material |
Crystal; glass etc. |
Total power | 1500W |
Controlling system | Galvanometer + axis X,Y and Z |
Processing surface | 1300mm*2500mm*110mm |
Moving controller software | Holylaser3DHolylaser
Holylaser engraving controller software.
Holylaser modelization and dotization software |
Cooling system |
Air cooling |
Software |
Holylaser engraving software
Holylaser dotization software |
Aplication:Focus on the business of adviertising, building partition decoration, household appliance, pictorial art viewing, industrial glass processing design, etc.Samples
After-sale service:1.Two-year guarantee period for product quality. (man made damaged is negotiable).
2.Lifelong maintenance and spare parts supply.
3.Free design of fixtures as customers required.
4.Offering training for machines' installation and operation.
5.Free engraving examples are provided for our customers.
Zhejiang Holy Laser Technoloy Co., Ltd, is a factory Located in YiWu City, ZheJiang Province. We specialize in: 3D laser machine, Large size glass engraving machine, Laser marking machine, Laser cutting machine, etc.
We are here because we are qualified for serving you by the bellow advantages:
1, We can supply machine in 7-10days once you confrim the order.
2, We supply complete service: Machine, design, crystal and LED base factory info. Design for free, technology support for all liftime, training for free.
3, We have our own factory garden that more than 1600squre meter. Wihch suport by government in yiwu economic development zone.
4, All our productions with CE, FCC, FDA, SGS, TUV certification s. Cause suitable for all city in the world.
5, We also have our son desiner team which have more than 15 years experience. Can supply you 2D or 3D desing with your special photo or supply beautiful design in tock.
You are always welcome to visit our factory in any time, , you are here not just our customer, most important is we are friends.
