Large Scale Laser Cutting Engraving Machine with USB Interface

Product Specifications

Prod Model:	TZJD-2030L
Working Area:	2000mm*3000mm
Machine Color:	Blue, White, Also as Demands
Laser Power:	60W/80W/100W/130W/150W/180W, Reci Brand
Working Table:	Honeycomb, Knife-Bar
Software:	Laserwork
Control Card:	Ruida
Interface:	USB, PCI
Controller:	DSP
Certifications:	Ce SGS FDA ISO BV TUV
Guide Rails:	Hiwin/PMI Square Rails

Product Description

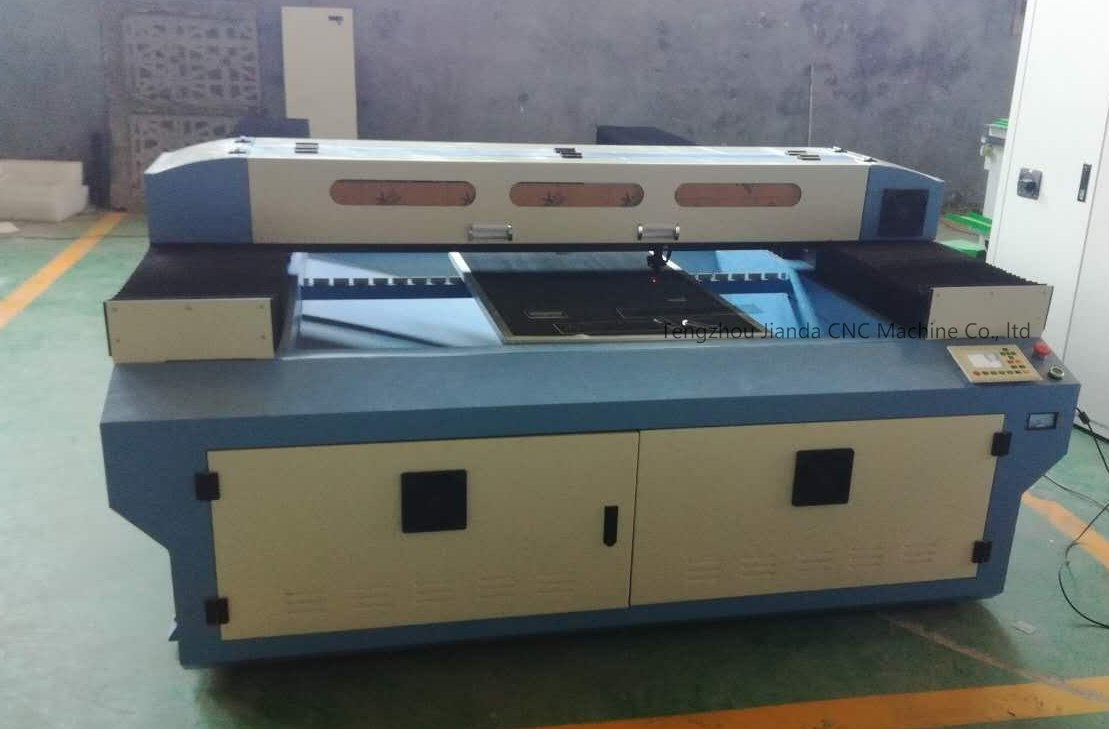

Large scale Laser Cutting Engraving machine with USB Interface TZJD-2030L



1. Machine features:
(1) High-precision Taiwan HIWIN linear guide and precision gear, matched with the advanced DSP Controller, also within stepper/servo motor to ensure the working accuracy.
(2) This work table was large enough to bear, extra times were all saved.
(3) That working table were all stainless steel material, easily operate and never fray.
(4) Continuous & rapid curve cutting function; Selecting shortest path function.
(5) USB Interface, with mass storage device; Improve working-speed & working efficiency.
(6) LaserWork software compatibility with AutoCAD/Coredraw/Cam/Photoshop/Taijima designing program, output designs directly.

2. Applicable industry:
Label processing, Garment samping, Embroidery, advertising, decoration, arts and crafts, electronics, electric appliances, large format tailoring, mould industry, packing industry, etc.

3. Applicable Materials:

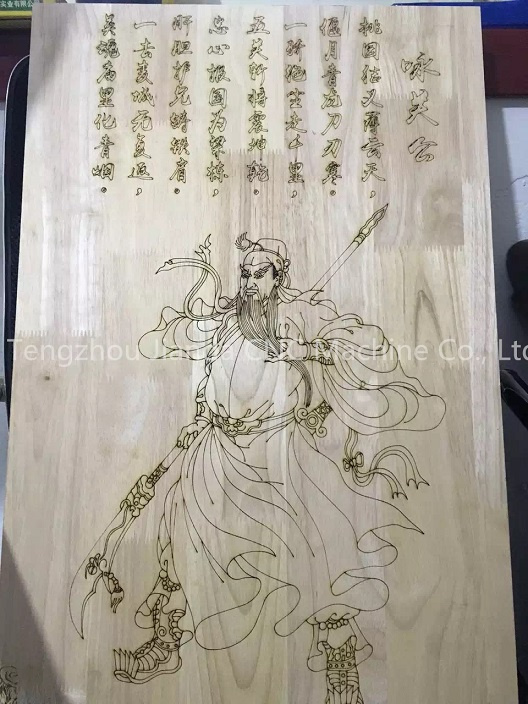

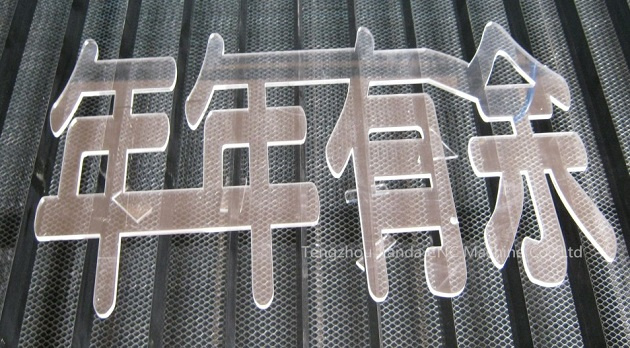

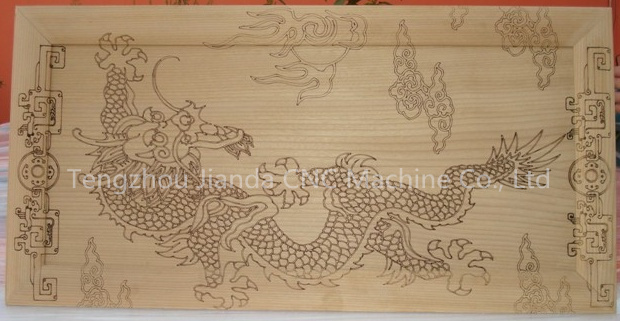

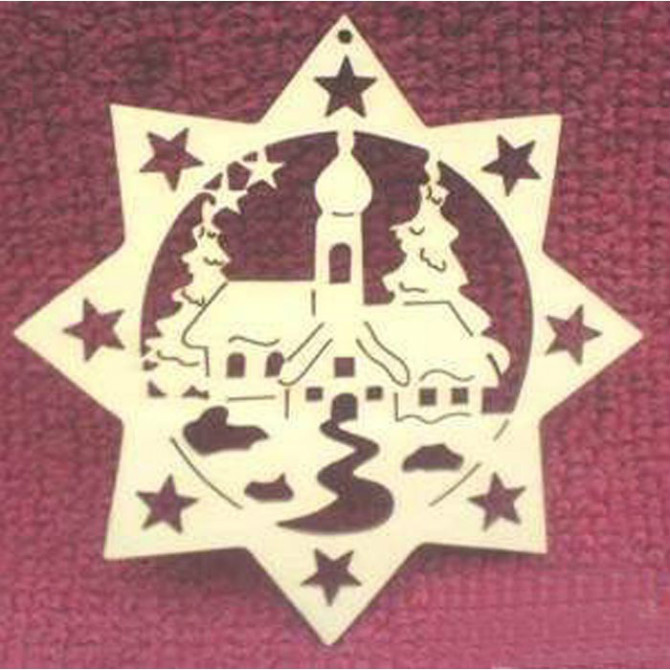

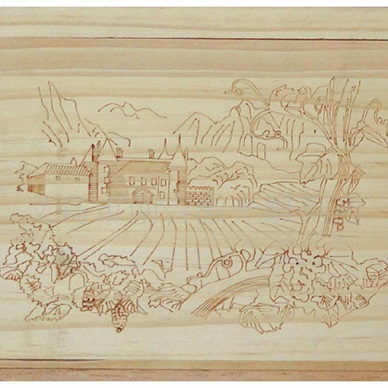

Acrylic, wood planks, label, fabric, paper ware, bamboo ware, double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease, ABS board, lamp shade, embroidery, leather, synthetic leather, canvas, artificial leather, glass, marble, crystal, etc.

Big laser cutting machine, laser cutting machine, laser cutter, laser cutting engraving machine, laser engraving cutting machine, plastic laser carving machine, laser carver, fabric laser cutting machine.







4. Technical parameters:

Model	TZJD-2030L
Working area	2000mm*3000mm
Laser power	80w/100w/130w/150w/180w, RECI brand
Laser type	CO2 Sealed laser tube, 10.6μ m, water-cooled
Cooling type	Water chiller system
Engraving speed	0-75000mm/min
Cutting speed	0-50000mm/min
Total power	2KW/H
Drive motors	Stepper/Servo(option)
Laser output control	0-100% set by software
Min. engraving size	Chinese: 1.5mm*1.5mm, English letter: 1.0mm*1.0mm
Highest scanning precision	4000DPI
Locating accuracy	≤ +0.01mm
Controlling software	DSP control system
Operating software	LaserWork
Graphic format supported	DST PLT BMP DXF DWG AI LAS, etc
Compatible software	CORELDRAW, PHOTOSHOP, AUTOCAD, TAJIMA, etc.
Color separation	Yes
Drive system	High-precision 3-phase stepper motor
Auxiliary equipments	Exhaust fan and air exhaust pipe, red-dot position system, focus lens & reflection mirrors.
Power supply	Ac110v/AC220V± 10%, 50HZ/60HZ
Working environment	Temperature: 0-45, Humidity 5-95%(No condensate water)
Working table	Honeycomb table/Knife bar
Interface	PCI USB
Machine available	rotary device, UP & DOWN system, auto-focus device, etc.

5. Packages: Solid seaworthy wood box package with steel belt.

6. Guarantee and After-sales service:
(1)  The quality warranty period is 24 months which counted from the day that the shipping commodity arrived at the port of destination, excluding the physical damage, We will provide you with the fittings for free during the guarantee period. But please kindly note that all users are kindly required to return us the damaged fittings by courier with your charge before we send back the alternative fitting parts. After warranty period, the fittings which you need repaired or changed should be in charge by you, and it will be reasonable charged.
(2)  Since it is difficult for our engineer to maintain the machine by face to face, we will create a plenty of online-supports. That is to say, we will give you technical supports by email, MSN/Skype, camera, video, telephone and fax when user meets some problems on installing, operating, adjusting, maintaining, and so on.
(3) When you meet some problems with installing, using or adjusting, but our online-support can not solve it, we can offer Door to Door service. If you need our engineer(s) to assemble or maintain or adjust the machine in your area, you would like to be required to assist us to go through the visa formality, traveling expenses prepaid and accommodation arrangement during the business trip and the service period before they dispatched. And please kindly arrange the translating person for the service engineer during their service period. Otherwise, you also can arrange your engineer to come to visit our factory to get a long-term free technical training.

7. Traning to use:
(1)  We will supply you with the operation and installation manual in English version together with the machine, including introduction for the composing of equipment, working principle, common knowledge of computer, controlling principle of electronic devices, daily maintenance measures. Personal demonstration will be supplied for equipment installing, adjusting, operating, programming of computer and common malfunction eliminating measures, etc.
(2)  We will supply you with brochures for simple trouble shootings of the machine which can help you deal with the common problems happened unexpectedly. Meanwhile, one set of "Instruction Book", "Operation Manual" and "Training Video Disk" for machine / software will be also sent to you together with the machine that could be easily understood and kindly handled by you and your customer.

8. Company information:
Tengzhou Jianda CNC Machine Co., Ltd specialized in woodworking machine,advertising machine, marble/stone engraving machine, laser engraving cutting machine, metal mould machine, double heads engraving machine,cylinder engraving machine, etc. The company was one of companies that can research & develop the advanced CNC Machines, which have laid the foundation in the domestic market. our machines have already exported to USA, Canada, England, Australia, Russia, India and so on.

9. FAQ:
(1) How long is the delivery time?
For standard machines, it would be 5-8 days; For non-standard machines and customized machines according to client s specific requirements, it would be 8 to 15 days.

(2) How about the payment terms?
T/T, West Union, L/C

(3) Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.

(4) If some problems happened to this machine during warranty period, what should I do?
We will supply free parts in machine warranty period if machine have some problem. While we also supply free after-service forever, so any doubts, just let us know, we will give you solutions in 24 hours.

(5) What is the MOQ?
MOQ for our products is 1 set machine, we could send it to your country port if you tell detail information about your country port.

10. Contact information:
Mobile: +86-18615627569

11. Machine accessories:

Accessories
Number	Name	Quantity(piece)
1	draught fan	1
2	air pump	1
3	frigorific water chiller	2
4	wind pipe	1
5	laser power device	1
6	laser tube(reci)	1
7	control line	2
8	specification	1CD
	software (LASERCUT)
	controller Card	1
	softdog	1
9	toolbox	1
	power wire	2
	cotton stick	2
	focaling stick	1
	lozengel allen  wrench	3
	laser locator	1
	spanner to load and unload lens	1
	nut of loading card	4
10	limit switch	1
	lens	4
