Product Specifications
| Prod Model: |
SD-H0125 |
| Item: |

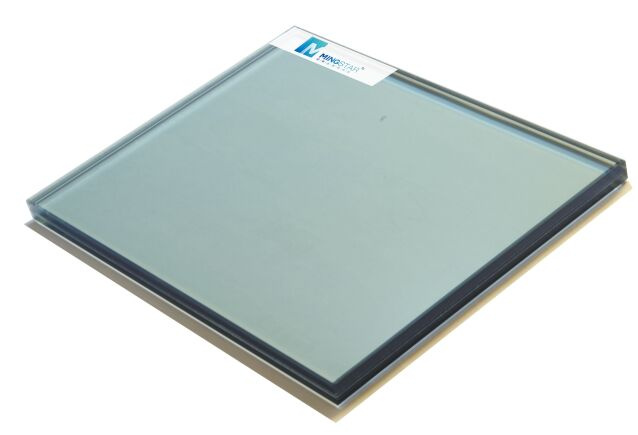

Pdlc Film Laminated Privacy Glass |
| Haze: |
7%(on),90%(off) |
| Visual Angle: |
150degree |
| Screening Of UV Light: |
>99% |
| Screening Of IR Light: |
>99% |
| Power: |
5W/Square Meters |
| Response Time: |
10ms |
| Working Temperature: |
-10 Degree to 60 Degree |
| Operating Voltage: |
70VAC |
| Lifetime: |
More Than50000hrs |
| Type: |
Float Glass |
| Shape: |
Flat |
| Appearance: |
Flat |
| Structure: |
Solid |
| Layer Type: |
Common Laminated Glass |
| Function: |
Decorative |
| Melting Point: |
Low Temperature |
| Production: |
Dry Laminated Glass |
| Color: |
Clear |
| Usage: |
Window |
| Intermediate Film: |
Pdlc Film |
Product Description
| Test Parameter | State | Results |
| Optics | Transmittance(Parallel light) | power on | about 75%(±3%) |
| Power off | <1% |
| Haze | Power on | <7% |
| Power off | >90% |
| Visual angle | Power on | about 150° |
| Screening of UV light | power on | >99% |
| power off | >99% |
| Screening of IR light | power on | >30% |
| Power off | >90% |
| Electricity | Power adapter | Power on | 70 VAC |
| Response time | on→off | 200ms |
| off→on | 10ms |
| Power | Power on | About 5W/m2 |
| Size | Thickness | / | 0.4mm |
| Enviroment | Operating Temperature | / | -10ºC~60ºC |
| Storage Temperature | / | -20ºC~70ºC |
| Lifetime | Lifetime | power on | more than50000Hrs |

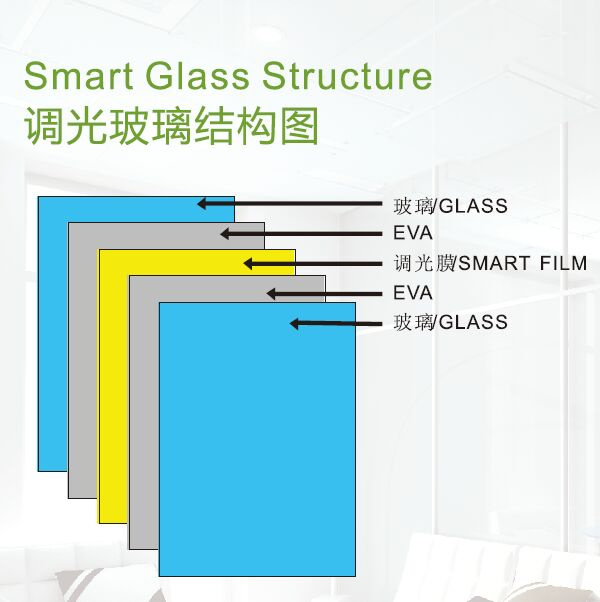

Smart Glass Structure

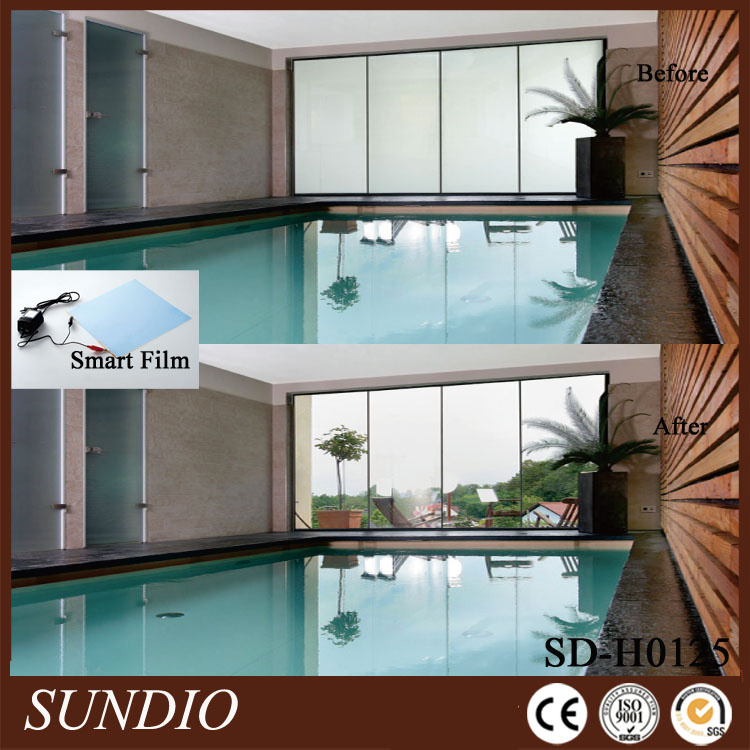

What is smart film?smart film is a new electronic controlled optical product,with a scientific name of polymer dispersed liquid crystal film(PDLC Film),In the polyvision switchable privacy film,small droplets of liquid crystal at micron meter level is dispersed in a poly mer matrix ,which is kept between two films,in order to produce this PDLC film,special process is required.Working Principlewhen the power is turned off,the liquid crystal molecules in the PDLC film distributes irregularly.at this stage,the PDLC film is opaque.when the power is on,the liquid crystal molecules can get arranged quite reglarly and the PDLC film can get transparent instantly.just like below:
Product Features:1.Privacy protection partition
2.explosion proof safety glass
3.porjection function
4.soundproof & thermal insulation
5.Shielding more than 99% ultraviolet and 98% infraredApplication:1.commercial region
1)projection screen
2)office,meeting room,control room partition
2.Residential Region1)indoor partition
2)Small home heater curtain
3.Medical Institutions
same function as curtain,function as partition and privacy screen
4.Anti-theft
applied in the showcase in the shopping malls,banks,jewelry stores and museumsOur advantages:1.using the leading roll to roll process in the world,continuous production was able to get achieved.compared to the original single production technology,efficiency and stability of the products improved significantly.
2.we are able to produce widest 1800mm pdlc film in the industry
3.we are able to produce PDLC film in various colors,base on the research of liquid crystal polymer.
FAQ1.Q:Do you supply both the smart film and smart glass A:yes,smart film and smart glass we all can supply.these are two products,we can buy it for your project according to the actual usage.
2.Q:can I install the smart film on my glass by myself?
A:yes,the installation is very easy,you can handle it.
3.Q:what the lagest size of the smart film?
A:we can product the widest 1800mm film
if you have any demand or more questions,contact us freely.thanks.
