Product Specifications
| Prod Model: |
Custom-made |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Cosmetic Lasers, IPL Machine |
| Coating: |
Coated |
| Principle: |
Selective Absorption Filter |
| Material: |
Glass |
| Type: |
IPL Filter |
| Shape: |
Costom-Made |
Product Description

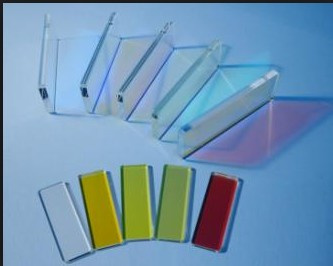

Co-Energy supplies IPL filters with all surfaces polished by advanced polishing technic. The high surface quality as 20/10, flatness better than λ /10 is achievable. This special polished products can be made of materials such as BK7, Fused Silica, sapphire and so on.
IPL filters are the key optical element for IPL (intense Pulsed Light) machine, which filters the UV wave and reserve the useful wave from 400nm to 1200nm for cosmetic laser, such as photrevujenation, hair removal, vascular and acne treatment. Available wavelength: 515, 1200, 530, 1200, 550, 1200, 560, 1200, 570, 1200, 590, 1200, 615, 1200, 645, 1200, 695, 1200, 755, 1200, 780, 1200 nm.
| Attribute | Specifiction |
| Material | BK7, Fused Silica, Sapphire, etc. |
| Dimension Tolerance (mm) | ± 0.05 |
| Surface Quality | 10/5 |
| Parallelism | < 1arc min |
| Flatness (per 25mm@633nm) | < λ /10 |
| Bevel (face width x 45) | < 0.25mm |
Nanjing Co-Energy Optical Crystal Co., Ltd. is one of the most professional suppliers of optics and optical components in China and our products range from different windows, lenses, prisms, mirrors, filters, beamsplitters, IPL Light guides and filters, tips and rods and so on. Our processing material varies a lot, from different optical glass, fused silica to crystal, i. e, Sapphire, CaF2, BaF2 and Germanium and Silica and more.
Pur products, which are strictly produced according to USA military specification MIL-O-13830A and ISO 10110 with advanced inspection devices, well quality control systems, ensuring our products in good quality and best performance in their own applications.
Most of our products are exported to USA and European companies, which are widely used in laser industry, biotechnology industy, communication and defense. Co-Energy makes every effort to provide high qualified components and devices at lower price. We have developed a series of specialized optical fabrication techniques for polishing in line with the highest international standards.
Co-Energy sales team is a group of energetic young people who have rich experiences of working. Our sincere attitude for quality and service prepared ourselves very well serving for the internation markets.
