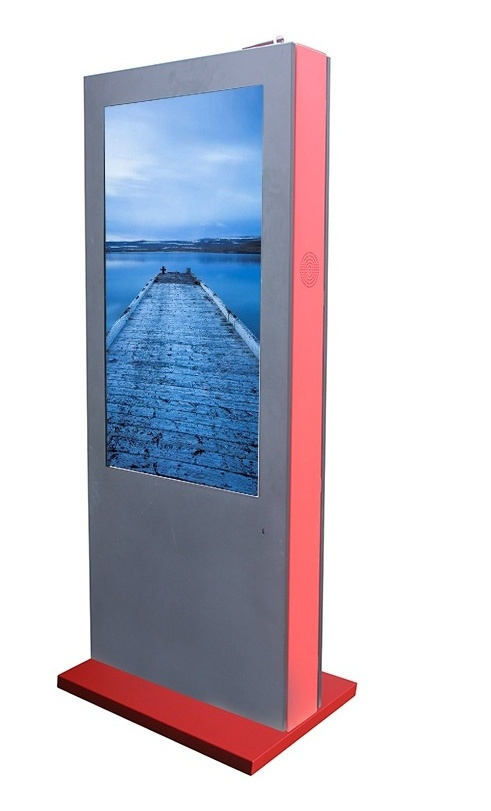

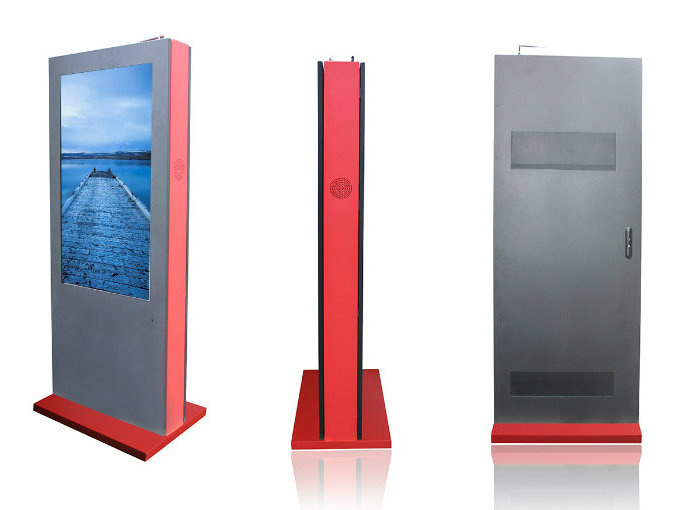

IP65 Design 55 Inch Outdoor LCD Ad Player for Outdoor Advertising Display
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
SW5520 |
| Size: |
42/55/65 |
| Order Lead Time Range: |
25-30 Business Days |
| Brightness: |
2000 |
| Resolution: |
HD/Uhd |
| Application: |
Outdoor AD Player |
| Screen Size: |
50-60 Inches |
| Installation: |
Vertical |
| Type: |
Network Version AD Player |
| Touch Screen Type: |
Capacitive |
| Screen Technology: |
LCD |
| Interface Type: |
HDMI |
| Remote Control: |
With Remote Control |
| OS: |
Android |
| Customized: |
Customized |
Product Description
IP65 design 55 inch outdoor lcd ad player for outdoor advertising display
Feature 1.Available size: 43,55,65,floor stand or wall mounted 2. Outdoor waterproof level IP65 sunlight readable 3. Super brightness up to 2500nits 4. Quality AR 6mm tempered glass for protection 5. Anti-moisture, Anti-lightning, Safety lock 6. Support to load interactive software applications 7. Intelligent temperature control system to keep its internal thermostat dry environment, prevent fogging, condensate phenomenon 8. Support 10 groups timed period back light control, convenient and easy to operate 9. Provide detection for internal voltage. It'll self-closing for protection once it deviates from the standard value range 10. The front use of imported anti-glare AR laminated glass, can effectively increase the internal light is projected to reduce the reflection of external light11. Galvanized steel shell, via a dedicated outdoor powder paint, waterproof sunscreen, anti-corrosion, explosion-proof professional surface treatment; can be used outdoors for 10 years without fading.12. Full galvanize steel cabinet, the outer surface of imported metal paint, anti-magnetic, anti-static, waterproof material imports13. The liquid crystal screen display image colors more vivid and brightOptional 1.Available Size:43,55,65,floor stand / 32,43,55wall mounted 2.Windows System: support to customized Windows 8.1/10 OS 3.Optional: 3G/4G module, Camera, WIFI probe. 4.Touch Screen: support to customized IR touch(6 points)/Capacitive touch(10 points)Application Bank,school,park,square,parking lot,train/bus/metro/railway station,airport, shopping mall, cinema, library, stadium, etc semi outdoor & outdoor environment. Parameters | Brand | Kontech/OEM |
| Model Name | SW55G20 |
| Price | USD3730(Samples increased by 30%) |
| MOQ | 5pcs |
| Region | Global market |
| LCD Panel | Display size | 55inch FHD |
| Brightness(Typical) | 2000cd/m2 |
| Contrast(Typical) | 3000:1 |
| Resolution (H x V) | 1920x1080 |
| Aspect Ratio | 16:9 |
| Response Time(Typical) | 5ms |
| View Angles LR,UD(CR>10) | 178°/178° |
| Panel Surface | black, white, sliver grey, iphone-design optional |
| Display Colors | 8bit, 16.7M |
| Protection glass | YES |
| Backlight rated hours | ≥60000hours |
| Metal Frame | Material | Metal |
| Color | black |
| Configuration | OS | android |
| CPU | inter @Atom X5 Z8300Z8300 |
| GPU | Integrated HD graphic |
| RAM | 1&2G DDR |
| ROM | 8&64GB FLASH |
| Memory card | 64G TF CARD |
| LAN | 10/100M |
| WIFI | WiFi802.11b/g/n |
| Connector | Input 1 | USB 2.0 |
| Input 2 | DC12V |
| Input 3 | RJ45 |
| Input 4 | USB3.0 |
| output1 | HDMI |
| Support | Video | WMV MPEG1,MPEG2,MPEG4,H.264,WMV,MKV,TS,flv |
| music | MP3 |
| photo | JPG,JPEG,BMP,PNG,GIF |
| touch | 20 points capacitive touch |
| Power | Consumption(Typical) | <480W |
| AC Power Range | 110-240V |
Power Mode
Indicator Light | RED and Green |
Operating
Condition | Temperature | -30ºCto+50ºC |
| Feature | IP rating | IP65,waterproof and dust free |
| Intelligent temperature control system | Intelligent temperature control function, auto-adjusting fan control system according to the internal temperature |
| Tempered glass | Tempered anti-glare glass offers perfect image performance while protecting display from violence |
| Audio output | 2×8W |
| Accessory | Power Cable | YES |
| Remote control | NO |
| Battery | NO |
| Warranty card | TBD |
| User Manual | TBD |
| Dimention | 900*1300*200mm |
| Net Weight | 175KG |
| Gross Weight | 235KG |
| Remark: |
| 1. All quotation based on EXW shenzhen and MOQ. |
| 2. Payment terms: 50% deposit and balnce before shipment.(Sample deposit 100%) |
| 3. Lead time:3weeks for sample,5weeks for MP after receiving deposit. |
A Worldwide Leading Professional TV OEM/ODM Manufacturer
Kontech Electronics Co., Ltd. Was established in 2007. Kontech has a nice working environment located in Shenzhen China, over 20 thousand square meters. Kontech has four automatic and high-speed LCD TV assembling line, equipped with batches of advanced facility and instrument. The annually productivity of Kontech can be up to 1 million sets. Kontech has independent and bonded import and export qulification.
Kontech is one of the leading LCD TV and Display manufacturers in China. In addition, Kontech supply over 10 kinds of professional TV and display models. Some of our customers are world famous brands, and it approved to be very successful. Sourcing a professional difference subdivision TV and display products? Here we are, Kontech, your best choice.
A wide range of TV around products for your sourcing convenience
You can buy a wide range of products through or one-stop sourcing service: Home LED/LCD TV, Outdoor TVs, transparent prison jail TVs, mirror waterproof TVs, hospital TVs, 12Volts surge protection TVs, marine TVs, hospital TVs, kitchen TVs, 3D Android smart TVs, hotel TVs, ad players, industry monitors, open frames, education AIO and commercial displays; With World wide TV solution ATV, ATSC, DVB-T, H. 264, ISDB-T, DVB-s2, DVB-c, sdb-t multiple medium port AV, YPbPr, S-Video, HDMI, DVD, USB, SD, CI/B-CAS/VGA/RS232/RJ45, and multiple language OSD optional.
Patents and certifications
We run an ISO 9001: 2008-certified Quality Management System, and ISO 14001: 2004 Environmental Management System. All of our products meets UL, FCC, FDA, CSA, 3C, CE, CB, SASO, ETL, ENERGY STAR standards and other international certifications, which has won customer's trust and high praise. We have got more than 20 national patents, including software, hardware, industrial design and more. Our 30 R&D engineers with an average of 12 years of experience in related fields can develop new products every month. We also welcome ODM projects.
