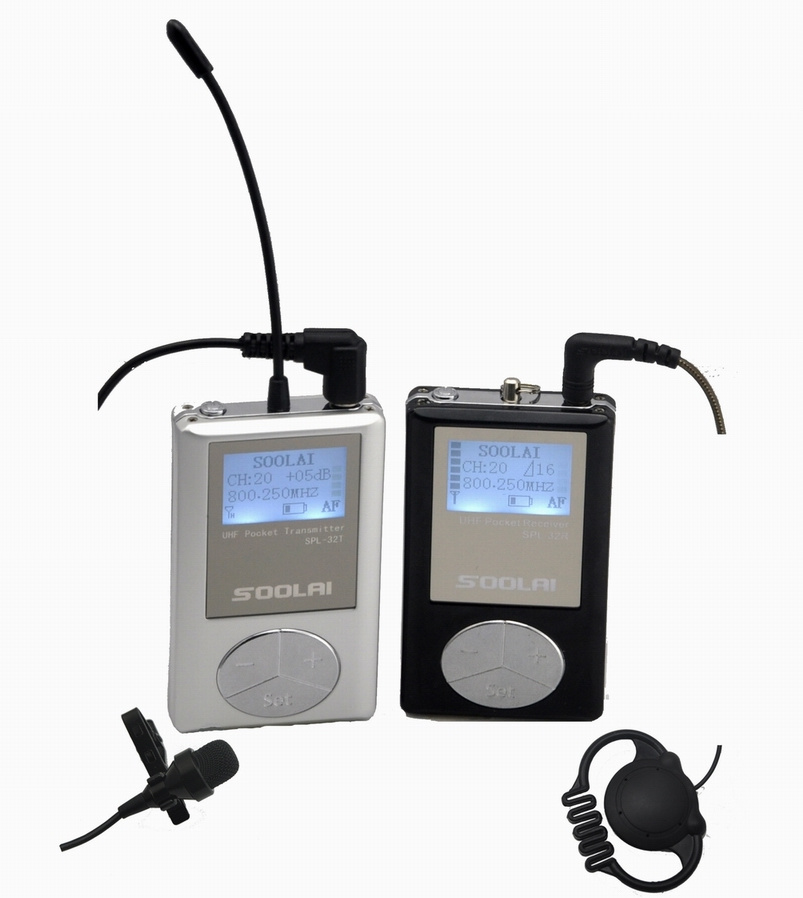

Interpretation System Spl-32
| Price: |
US $ 1-100/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
SPL-32 |
| Style: |
Handheld |
| IP Rating: |
IP67 |
| Usage: |
Home |
| Battery Type: |
Lithium Battery |
| Display: |
With Display |
| Working Frequency Range: |
UHF Segment |
| Certification: |
CE |
| Talk Range: |
200m |
| Type: |
UHF |
Product Description
Best Tour Guide system in China, excellent work performance and quality! More than 5 channels can be used simutanously with crystal sound, operating range is about 200 meters.
Main features:
1. Super mini, light weight and metal shell design. Dimension: 69*42*12mm, Weight: 50g (include battery).
2. UHF band PLL synthesized design.
3. 38 Fixed-channels and 32 User-channels design, frequency of User-channel can be set by user.
4. 32 channels (languages) can be switched quickly.
5. 96*64 dot matrix White LCD display.
6. LCD display Channel, frequency, volume, battery, RF level, Audio level and microphone gain.
7. "Digital Pilotone & Noise Lock" dual-squelch Circuitry.
8. High performance double-IF circuit design.
9. High anti-interference performance that makes many units be used simultaneously without interference in one spot.
10. Digital 16-step volume control of receiver.
11. Digital 21-step SQ adjusting of receiver.
12. Dynamic display of Audio level and Audio overload warning of transmitter.
13. 31 steps microphone gain adjustment (-10~+20dB) of transmitter.
14. HIGH/LOW RF power output adjustment of transmitter.
15. Quick-mute function of transmitter.
16. Built-in polymer ion polymer battery, continuously working for 11-13hours.
17. Unique clip-worn design.
18. Parameter setting with password protection.
19. Variously charging equipments for choice, convenient to charge, disinfect, store and carry.
20. Operating range 200m in open ground.
Application:1. Tour guiding

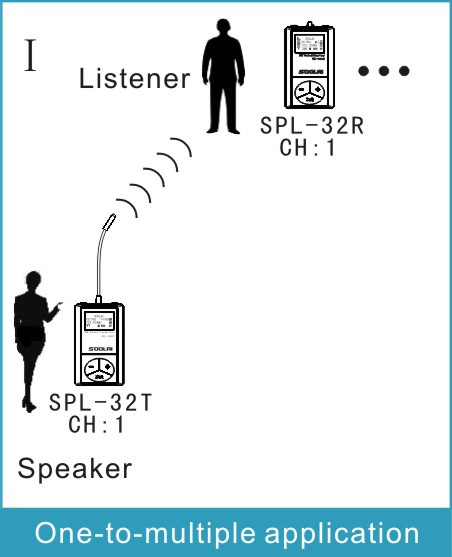

1). One speaker with many listeners application. (Figure )
The speaker's voice can be clearly heard by the listeners. The number of receivers is optional.
2). Two speakers with many listeners application. (Figure II)
Listeners can hear both speaker A and speak B.

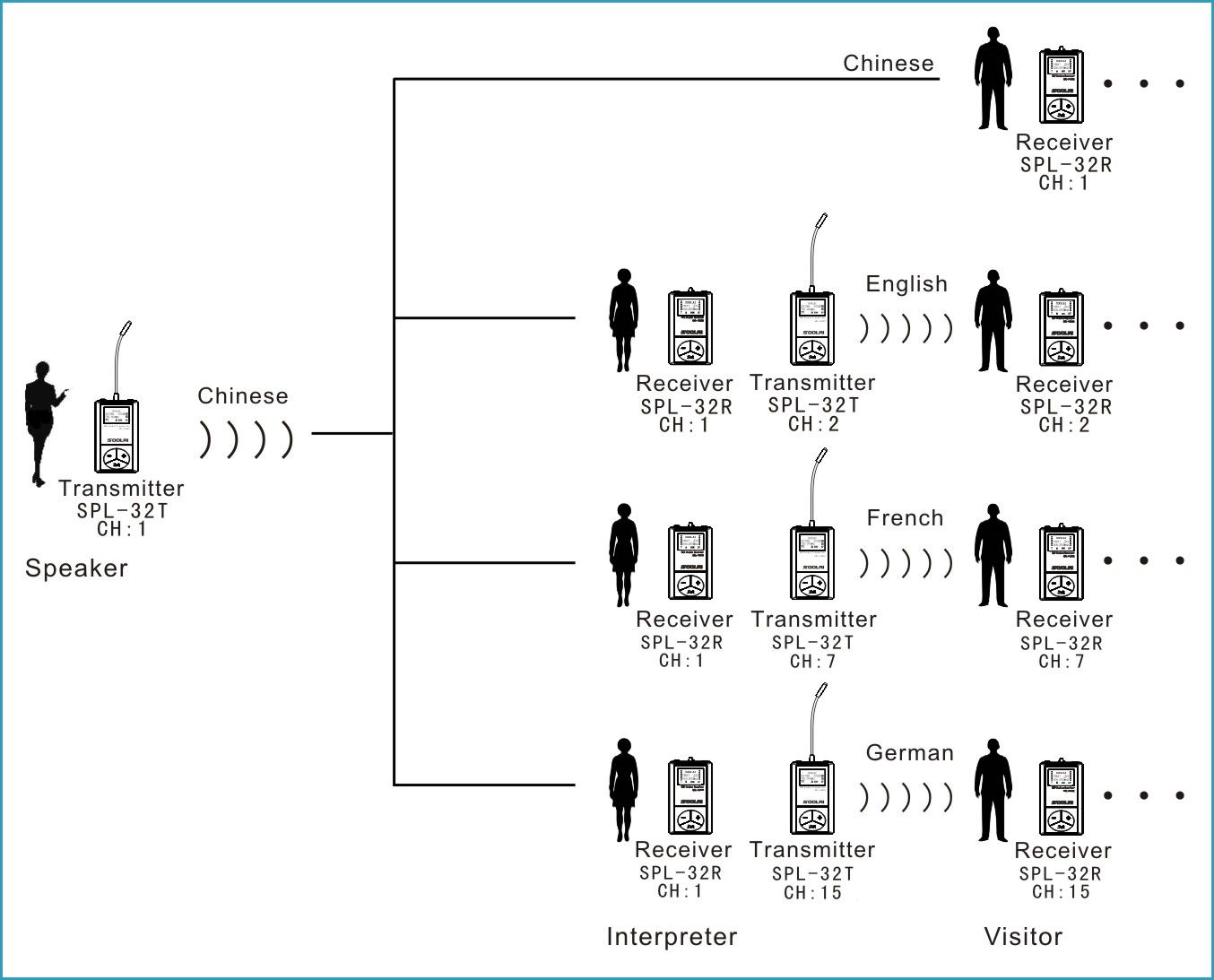

2. Interpretation
(1) Interpreters can hear the speaker by wireless receivers and then their transliterations were emitted by other wireless transmitters.
(2) While visitors can hear different languages by taking wireless receivers on different channels.Chargers:

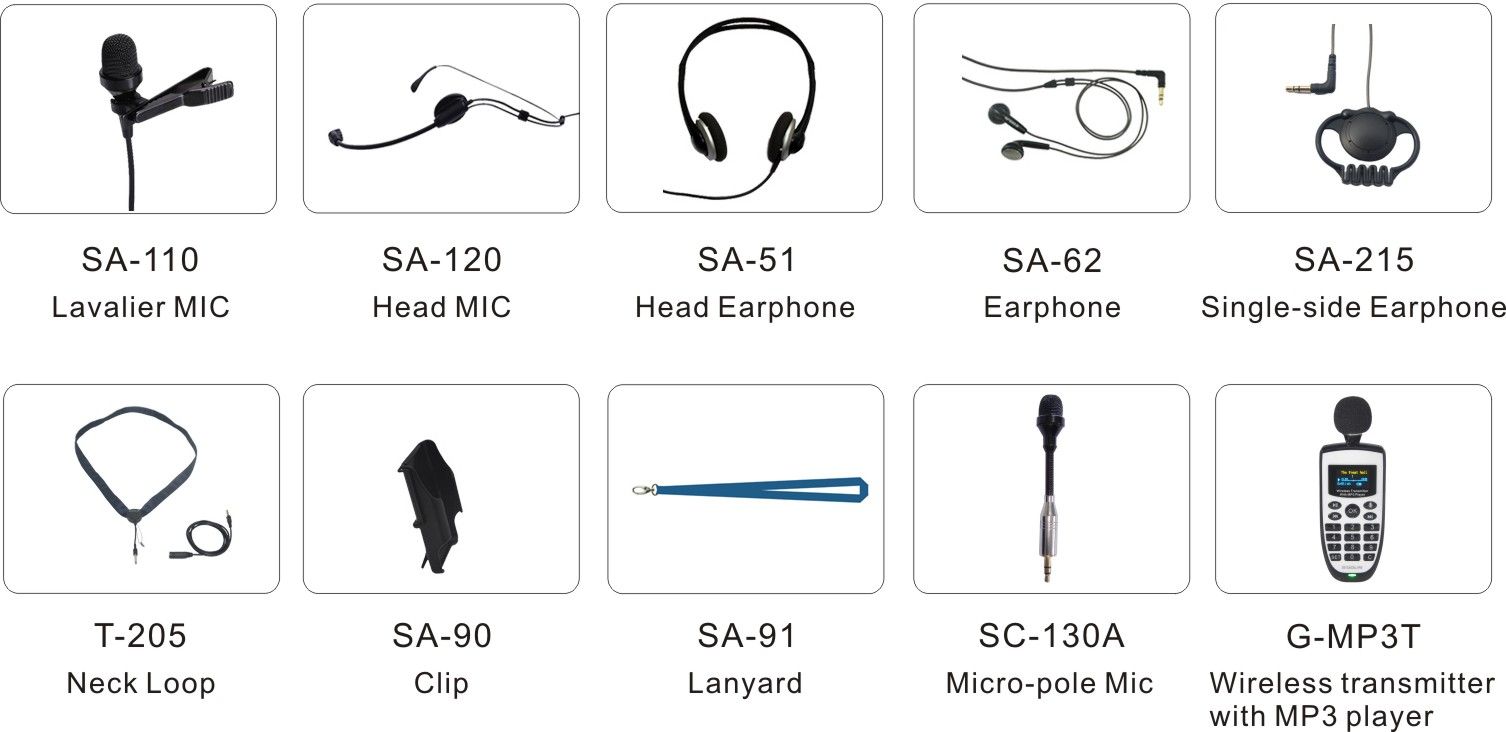

Accessories:
Specifications: | RF Carrier Frequency Range: | UHF 614~928MHz (Country dependent) |
| Oscillation Type: | PLL Synthesized |
| Frequency Stability: | ±0.005% (0~50)ºC |
| Display Screen: | 96*64 dot matrix LCD |
| Tunable Channels: | 38 Fixed channels+32 User channels |
| Switching Bandwidth: | 24MHz |
| Tunable Steps: | 625KHz (Fixed channel),25KHz(User channels) |
| Modulation: | FM ±45KHz deviation (nominal) |
| Signal-to-Noise ratio: | >90dB typical (A-weighted ) |
| Total Harmonic Distortion: | <0.5% (Ref.±45KHz deviation,1KHz modu) |
| Power Supply: | Lithium ion polymer battery 3.7v/600mAh |
| Dimension: | 69mm * 42mm * 14mm |
| Unit Weight: | < 50g (With battery) |
| Operating Temperature: | -20ºC to +70ºC |
| Operating Range | >200m (Environment dependent) |
| Certificate | FCC,CE |
Four versions of different frequency band is supplied (other frequency band could be customed)
•F652-24: Frequency Band 640~664MHz (38 Fixed channels+32 User channels)
•F800-24: Frequency Band 788~812MHz (38 Fixed channels+32 User channels)
•F864-02: Frequency Band 863~865MHz (81 Fixed channels+32 User channels)
•F858-24: Frequency Band 846~870MHz (38 Fixed channels + 32 User channels)
•F915-26: Frequency Band 902~928MHz (42 Fixed channels + 32 User channels)
Receiver (SPL-32R):| RF sensitivity: | 2uV (60dB S/N) |
| Antenna: | Uses earphone cable or 1/4 λ flexible antenna |
| AF Output: | 3.5mm connector |
| AF Output Control: | 100mw maximum ,16setps digital volume |
| Minimum Load Impedance: | 16Ω |
| Operation Time: | 12-13 hours |

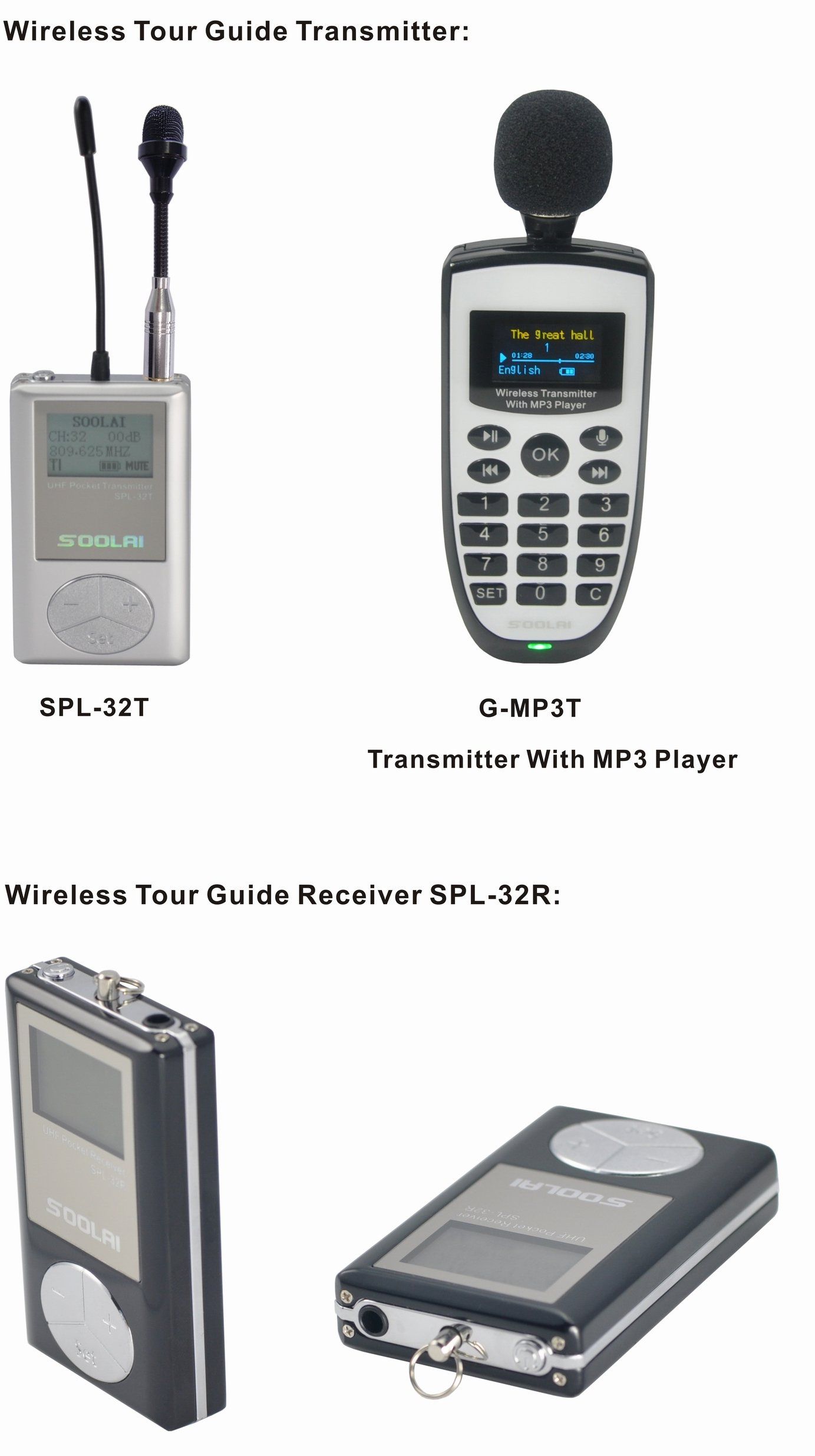

Transmitter (SPL-32T):| RF Power Output: | 10mW/20mW(country dependent) |
| Antenna: | 1/4 λ flexible antenna or uses microphone cable |
| Harmonic Suppression | >50dB |
| Microphone Input: | Unbalanced, 3.5mm connector(Tip) |
| Line Input: | Unbalanced, 3.5mm connector(Ring) |
| Gain Adjustment Range: | Programmable in 31 steps , -10dB to +20dB |
| Operation Time: | 11-12 hours (High Power) 18 hours(Low Power) |
Main Specifications of G-MP3T RF Transmitter| RF Frequency Range | UHF614-928MHz (Country dependent) |
| Oscillation Type | PLL Synthesized |
| Tunable Channels | 38 Fixed channels+ 32 User channels |
| Channel switch control | Manual Keypad & RFID trigger |
| Switching Bandwidth | 24MHz |
| Tunable Steps | 625KHz (Fixed channel ) / 25KHz(User channel) |
| Frequency Stability | ±0.005%(0~50)ºC |
| Modulation | Pre-emphasis FM ±45KHz deviation compressor |
| RF Power Output | 20mW |
| Harmonic Suppression | >50dB |
| Microphone Input | 3.5mm connector(Tip) |
| Microphone Gain | -10dB~+20dB (step=1dB,31steps) |
| Display Screen | Yellow and blue dual color OLED display |
| Power Supply | Lithium ion battery 3.7v / 1020mAh |
| Operating Time | 9 hours |
| Dimension | 138*49*16mm |
| Weight | 70g (include battery) |
| Compatible receiver | SPL-32R,SPL-1600R |
MP3 Player| MP3 file | 8-48KH sample rates, 8-320kbps bit rate |
| Memory Capacity | 4GB |
| Ways of Play | Manual Keypad & RFID trigger triggering play |
| Multi-Language | 99 |
| Tracks Number | 4096(per language) |
| Display of object name | Multi- language supported |
| MP3monitoring output | 3.5mm connector(Ring) |
RFID Receiver | RFID Frequency Range | ISM 2.4GHz |
| RFID Channel | 4 |
| Receiving Range | 0~100m (Depend on RFID trigger) |
| Triggering Control | RF channel switching & MP3 triggering Playing |
Note: Different value according to versions of different countries.
