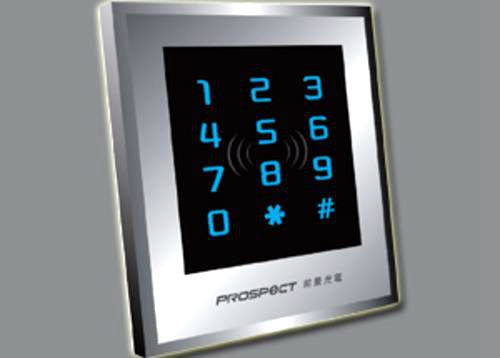

Intelligent Card System Passenger Elevator with Scientific Management of Authority
Price: |
US $ 11000-25000/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
Prod Model: |
BMEV3.0 |
Control System: |
Vvvf Elevator Control System |
Date Of Delivery: |
30day |
Light Supply: |
1 Phase, 220V, 50Hz |
Others: |
Over Load Buzzers, Gong on Var Roof |
Attendant Control Ke: |
Contain |
Color: |
Customer Required |
Application: |
Sightseeing |
Driving Type: |
AC Elevator |
Capacity: |
450kg ~ 2000kg |
Persons: |
6, 8, 10, 13, 19, 21 Persons |
Speed: |
1.0 -2.5m/S |
Position Of Computer Room: |
up and Without Machine Room |
Elevator Door: |
Center Opening and Side Opening |
Door Knife: |
Single and Double |
Product Description

Product application
The passenger elevator are designed for different types of residential buildings, villas residential, office buildings , adopt new design concept, bring in the customize host designed by one elevator drive brand who has one hundred years history , high performance elevator parts, permanent magnet synchronous drive and intelligent door system, open close precision, safe and reliable. For Large-Scale Buildings Vertical passenger flow. Provide planning design production and installation and monitoring service of operating. For Luxury residential buildings/Shopping Centers/CBD/Hotels. Transportation Junctions and other Public Buildings.
Small Machine Room Passenger ElevatorSaving Up to 50% Area of Machine room
Apart from the effective and intellectual control system, the small machine room elevator also applies small traction machine and thin control cabinet design; machine room could be smaller and compact.
Machine room is only an extension of the well. It is convenient in construction and low in cost. The application of compact gearless traction machine leaves a larger space for machine room.

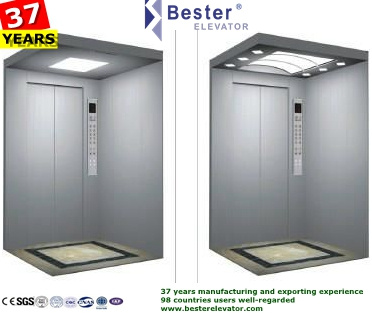

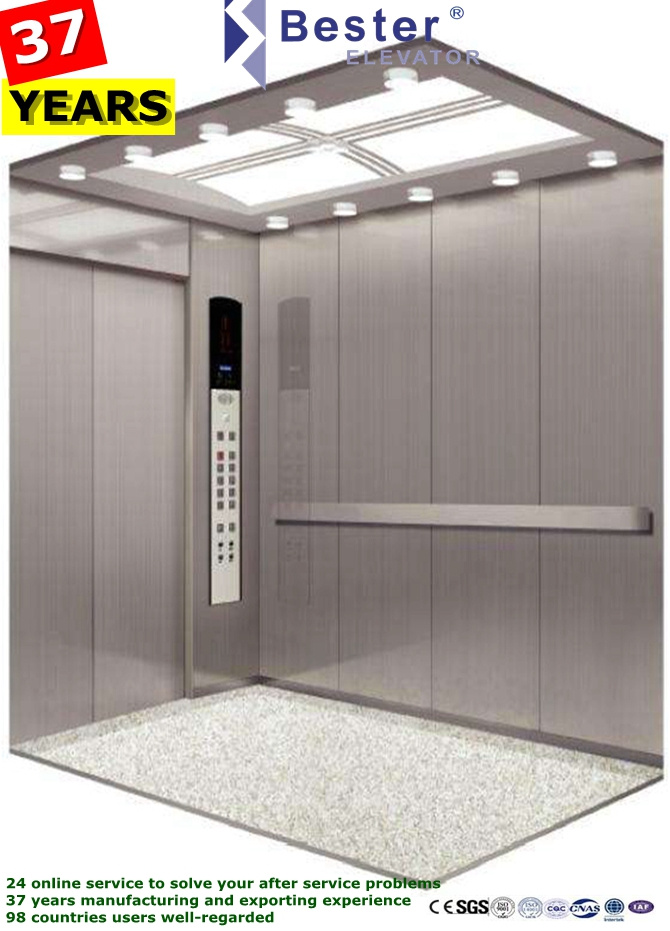

The decoration of the car:Ceiling: Rose gold stainless steel, acrylic lighting decoration
Car wall: Rose gold mirror stainless steel, mirror stainless steel
Car door: Rose gold stainless steel
Floor: PVC
Display: LCD liquid crystal display
Integrated control box
Main parameter | |
Name of the equipment: | computerized modularized VVVF controlled passenger lift / residential lift |
Lift style: | BMEV3.0 |
Stops: | all doors face the same direction |
Base floor: | the first floor |
Main configuration | |
Operating system: | fully computerized and elective manner |
Control system: | Modularized and fully computerized control system; serial link communication system. |
Driving system: | the new type of BESTER alternating current variable frequency and voltage driving system with stepless (infinitely) variable speed |
Door operating system: | BESTER door operating system with the function of variable frequency |
The location of traction machine: | inside the machine room at the top of the hoistway |
Devices of landing door | |

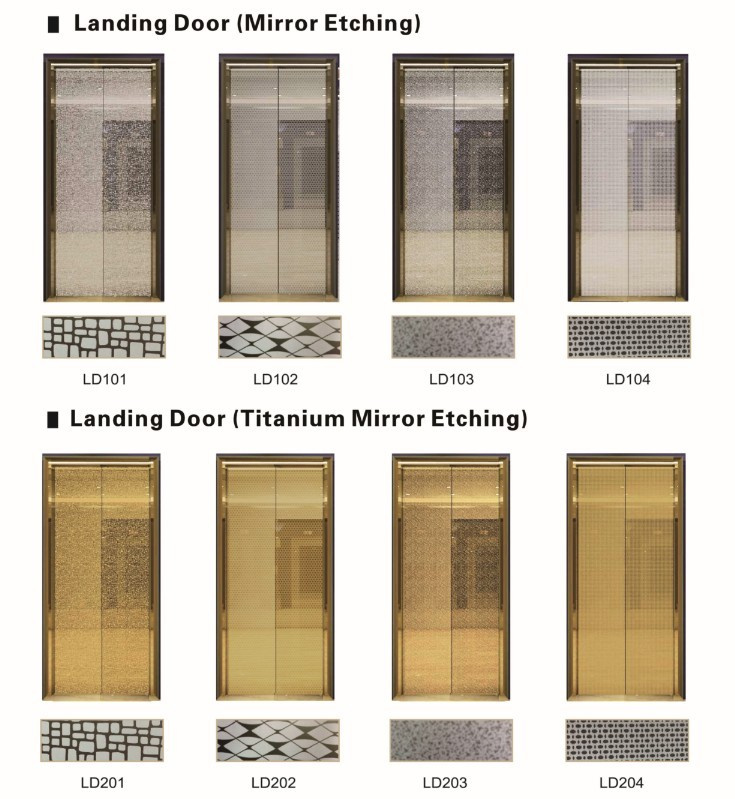

Material of landing doors: | hairline finished stainless steel for the first floor, and high quality spray painted steel plate for other floors (just for reference) |
Material of landing door jambs: | hairline finished stainless steel for the first floor, and high quality spray painted steel plate for other floors (just for reference) |
Configuration of landing door jambs: | standard miniature landing door jambs |
Display unit of landing door: | adopting the advanced BESTER technology, -the digital display of the car location and running direction in the way of arrowhead (↑↓) |
Hall call device: | adopting the advanced BESTER technology, -the cover plate is made of hair line finished stainless steel; micro button; LED dot-matrix display |
Devices of car | |
Decoration of car walls: | high quality spray painted steel plate/ hair line finished stainless steel (just for reference) |
Decoration of car ceiling: | in a standard mode |
Car platform: | abrasion-proof plastic floorboard |
Material of car door: | high quality spray painted steel plate/ hair line finished stainless steel (just for reference) |
Lighting: | special light which is energy-saving and has high efficiency; sunlight illumination |
Ventilating facilities: | air blower with micro noisy |
Communication facilities: | concealed interphone |
Inspection facilities: | under the car operating box |
Display unit inside the car: | adopting the advanced BESTER technology, -the digital display of the car location and running direction in the way of arrowhead (↑↓) |
Hall call device inside the car: | adopting the advanced BESTER technology, -the coverplate is made of hair line finished stainless steel; micro button; LED dot-matrix display |
The way of opening: | 2 panel center-opening door; 2P-CO. |
Main function1 | Inspection operation | 29 | Over speed protection |
2 | Slow speed running | 30 | Contact protection for brake switches |
3 | Automatic door opening time adjustment | 31 | Interphone communication |
4 | Full load bypass | 32 | Wheeling protection |
5 | Automatic turn off lighting and fun | 33 | Alarm bell |
6 | Automatic return to home landing | 34 | Emergency lighting |
7 | Door re-closing | 35 | Level switch protection |
8 | Error recording | 36 | False call canceling |
9 | Hoist way self learning | 37 | Automatic reversal call canceling |
10 | Automatic door opening | 38 | Floor display directional setup |
11 | Attendant service | 39 | Isolate running |
12 | Bypass operation | 40 | Dot matrix floor indicator |
13 | Automatic correction of floor position signal | 41 | Rolling display of running direction |
14 | Lift locking | 42 | CAN communication protection |
15 | Protection of door lock up outside dooor area | 43 | Arrival gong |
16 | Infrared light curtain protection | 44 | Emergency return in case of fire |
17 | Over load protection | 45 | Main control protection |
18 | Reversal runing protection | 46 | Main control CPU WDT protection |
19 | Anti-skip protection | 47 | Discretional setup of service floor |
20 | Anti terminal switches protection | 48 | Test running |
21 | Anti-terminal over running protection | 49 | Clock control |
22 | Phrase protection | 50 | Direct landing |
23 | Contactor protection | 51 | Load weighting device |
24 | Failure analysis of shaft self learn | 52 | Full collective control |
25 | Motor temperature protection | 53 | Door opening button (external) |
26 | Door opening failure protection | 54 | Door opening button (internal) |
27 | Protection for door lock short circuit | 55 | Fire running function |
28 | Door lock failure for brake switches | 56 | camera function in the car |
Civil parameterSmall machine room passenger lift specifications |
No. of persons | Rated capacity (kg) | Rated speed (m/s) | Car net size | Door net size(DW*DH)mm | Shaft inside dimension | Machine room size | Max traveling height(m) |
W*D(mm) | 2P center opening | W*D(mm) | Pit depth | OH | W*D*H(mm) |
6 | 450 | 1.0 | 1200*1000 | 700*2100 | 1750*1620 | 1500 | 4400 | 1750*1620*2500 | 45 |
8 | 630 | 1.0 | 1400*1100 | 800*2100 | 2000*1720 | 1500 | 4400 | 2000*1720*2500 | 45 |
1.6/1.75 | 1600 | 4500 | 96 |
10 | 800 | 1.0 | 1400*1350 | 800*2100 | 2000*2000 | 1500 | 4400 | 2000*2000*2500 | 45 |
1.6/1.75 | 1600 | 4500 | 96 |
2.0 | 1800 | 4900 | 120 |
2.5 | 2000 | 5100 | 150 |
13 | 1000 | 1.0 | 1600*1500 | 900*2100 | 2200*2150 | 1500 | 4400 | 2200*2150*2500 | 45 |
1.6/1.75 | 1600 | 4500 | 96 |
2.0 | 1800 | 4900 | 120 |
2.5 | 2000 | 5100 | 150 |
3.0 | 2600 | 5600 | 150 |
3.5 | 3100 | 5950 | 180 |
4.0 | 3850 | 6350 | 180 |
15 | 1150 | 1.0 | 1700*1500 | 1000*2100 | 2300*2200 | 1500 | 4400 | 2300*2120*2500 | 45 |
1.6/1.75 | 1700 | 4500 | 96 |
2.0 | 1800 | 4900 | 120 |
2.5 | 2000 | 5100 | 150 |
3.0 | 2600 | 5600 | 150 |
3.5 | 3100 | 5950 | 180 |
4.0 | 3850 | 6350 | 180 |
16 | 1250 | 1.0 | 1950*1400 | 1100*2100 | 2550*2100 | 1500 | 4400 | 2600*2100*2500 | 45 |
1.6/1.75 | 1700 | 4500 | 96 |
2.0 | 1800 | 4900 | 120 |
2.5 | 2000 | 5100 | 150 |
3.0 | 2600 | 5600 | 150 |
3.5 | 3100 | 5950 | 180 |
4.0 | 3850 | 6350 | 180 |
18 | 1350 | 1.0 | 1950*1500 | 1100*2100 | 2550*2250 | 1500 | 4400 | 2600*2200*2500 | 45 |
1.6/1.75 | 1700 | 4500 | 96 |
2.0 | 1800 | 4900 | 120 |
2.5 | 2000 | 5100 | 150 |
3.0 | 2600 | 5600 | 150 |
3.5 | 3100 | 5950 | 180 |
4.0 | 3850 | 6350 | 180 |
21 | 1600 | 1.0 | 1950*1750 | 1100*2100 | 2550*2500 | 1500 | 4400 | 2600*2500*2500 | 45 |
1.6/1.75 | 1700 | 4500 | 96 |
2.0 | 1800 | 4900 | 120 |
2.5 | 2000 | 5100 | 150 |
3.0 | 2600 | 5600 | 150 |
3.5 | 3100 | 5950 | 180 |
4.0 | 3850 | 6350 | 180 |
Note: the parameter table shows the standard design of our elevator. We also can design elevator for you with your parameter.WHY CHOOSE US?1. Set up in 1979, 37 years manufacturing and exporting experience.
2. Professional technical global client center provides 24 hours service to solve your problems and questions on elevator.
3. Steady and durable use

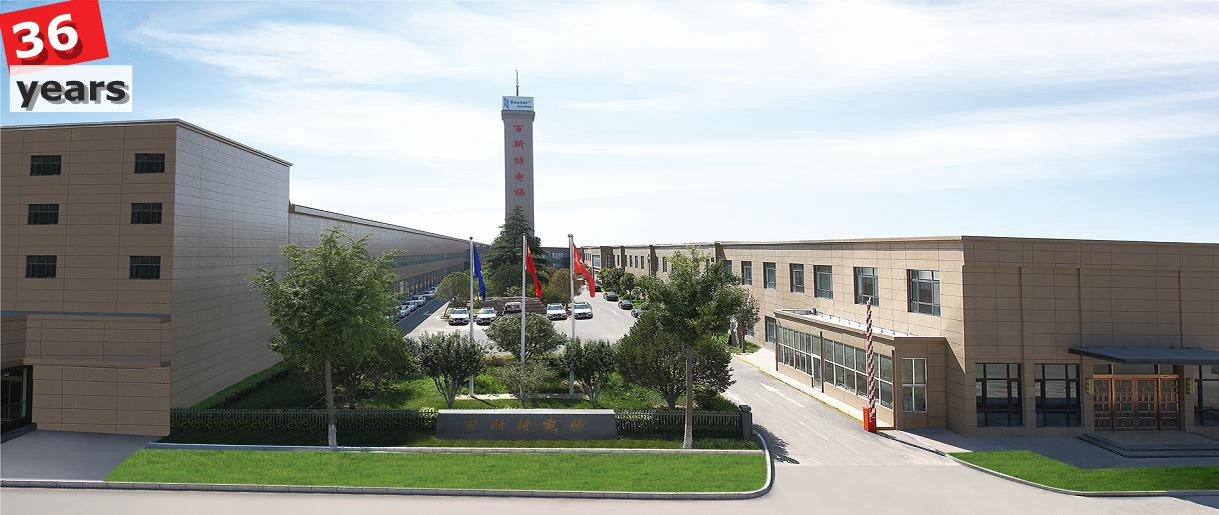

3. CE, ISO14001, ISO9001, TUV, SGS authenticatedFactory showing

Shipping
Agent Wanted:Welcome experienced elevator company as our distributors/agent to cooperate. We would like to provide our distributor/agent promotion price as reward for the cooperation. Contact with me if you are interested.
Shandong Bester Elevator Co., Ltd, a Sino Swiss joint venture, is located in Jinan, the capital city of Shandong Province, which is a city with a long history as well as beautiful natural scenery and honored as the city of spring. Shandong Bester Elevator is the governing member of Chinese Elevator Association, the member of the National Standard Committee Elevator branch, the vice governor of Shandong Specialty Elevator Association, the vice director of Elevator Professional Committee. And it is also one of the professional elevator manufacturing and servicing companies, which combines production, marketing, development, installation and maintenance of elevators. Originated from the famous international elevator joint venture, Bester is the earliest joint venture of Germany Thyssen Elevator in China. Based on the cooperation, the company mastered the advanced technology as well as management system from Europe. In 2005, the company cooperated with the Swiss Elevator Electronic Technology Co., Ltd, which leads the global elevator control system area, and established the Sino Swiss joint venture Shandong Bester Elevator Co., Ltd. The sales and service net of Bester is all over the large and medium-sized cities of the world. The products and services are throughout Asian to South America, North America and Middle East.
Bester Elevator owns multitier invention patents and dozens of utility model patents. In 2011, the Jinan Elevator Technology Center was founded and is dedicated to the development and experiment of elevator technology. The company gathered many experts in elevator industry, who have rich experience in production, management and development of elevators. Focusing on the development of human resources, Bester Elevator keeps introducing talents from home and abroad, creating an excellent learning atmosphere. The efficient, practical and forward-looking team of Bester enhances the brand value of the company.
In order to promote the Artisan Spirit and improve the professional skills, Bester Elevator has held three "Special Equipment Installation and Maintenance Skills Competition of Shandong Province". In the competitions, four of the company engineers were awarded the title of Technician by Shandong Province; Another one was awarded the "Enriches people and Enforcing Shandong" medal by labor union.
Bester Elevator has the Level-A License of Special Equipment Manufacturing, Installation, Maintenance and Modification.
The products range from passenger elevator, home elevator, cargo elevator, panoramic elevator, bed elevator, dumb waiter, machine-room less elevator, escalator, moving walkway and others. The products of the company are certificated as Famous Brand Products by Shandong Province. The label "BESTER" is also the Famous Brand of Shandong Province. In the past twenty years, the company has been continuously certified as Trust-worthy Corporation by Shandong province.
The manufacturing of Bester complies with the European Standard EN115&EN81. The products quality is controlled by the ISO9001 International Quality Assurance System and certified by the CQC and British Royal Family. Bester pays attention on the environment protection and personnel health, and certified by the ISO14001 Environmental Management System, OHSAS18001 Occupational Health Management System successively...
The after sales services are all over the world. With the help of remote internet monitoring system and the Internet-of-Things technology, we can provide timely and accurate service for our users.
The company focuses the value of "Integrity and Talents", adhering to the philosophy of team spirit and innovation, that are all to build a creative company culture. Bester also combines the strategic goal of enter with personal growth and development, to achieve providing the best elevators for our customers.
So be the best (BESTER) elevator company is our objective and direction.
