Product Specifications
| Prod Model: |
BS-AS-30 |
| Lumen: |
4800-5400lm |
| Lithium Battery Capacity: |
21ah 12.8V |
| Mounting Height: |
5-6m |
| Mounting Distance: |
16-19m |
| Product Size: |
990*360*150mm |
| Control Mode: |
Light/Time/Microwave/Time+Microwave Mode |
| Warranty: |
3 Years for The Whole Light |
| Lifetime: |
≥50000 Hours |
| LED Quantity: |
40 Pieces |
| Light Distribution: |
Batwing |
| Light Source: |
LED Lamp |
| Lamp Body Material: |
Aluminum Alloy |
| Light Type: |
Solar |
| Charging Time (',H): |
6 |
| Usage: |
Courtyard, Park, Square, Community, Port... |
| IP Rating: |
IP65 |
| Certification: |
FCC, SGS, UL, SAA, ISO9001 |
| With Light Source: |
With Light Source |
| Color Temperature: |
3500-6000K |
| Power: |
30W |
| Technics: |
Die-Casting |
| Illumination Time: |
Continuously 3-5 Rainy |
| Cell Type: |
LiFePO4 |
| Voltage: |
18V |
Product Description

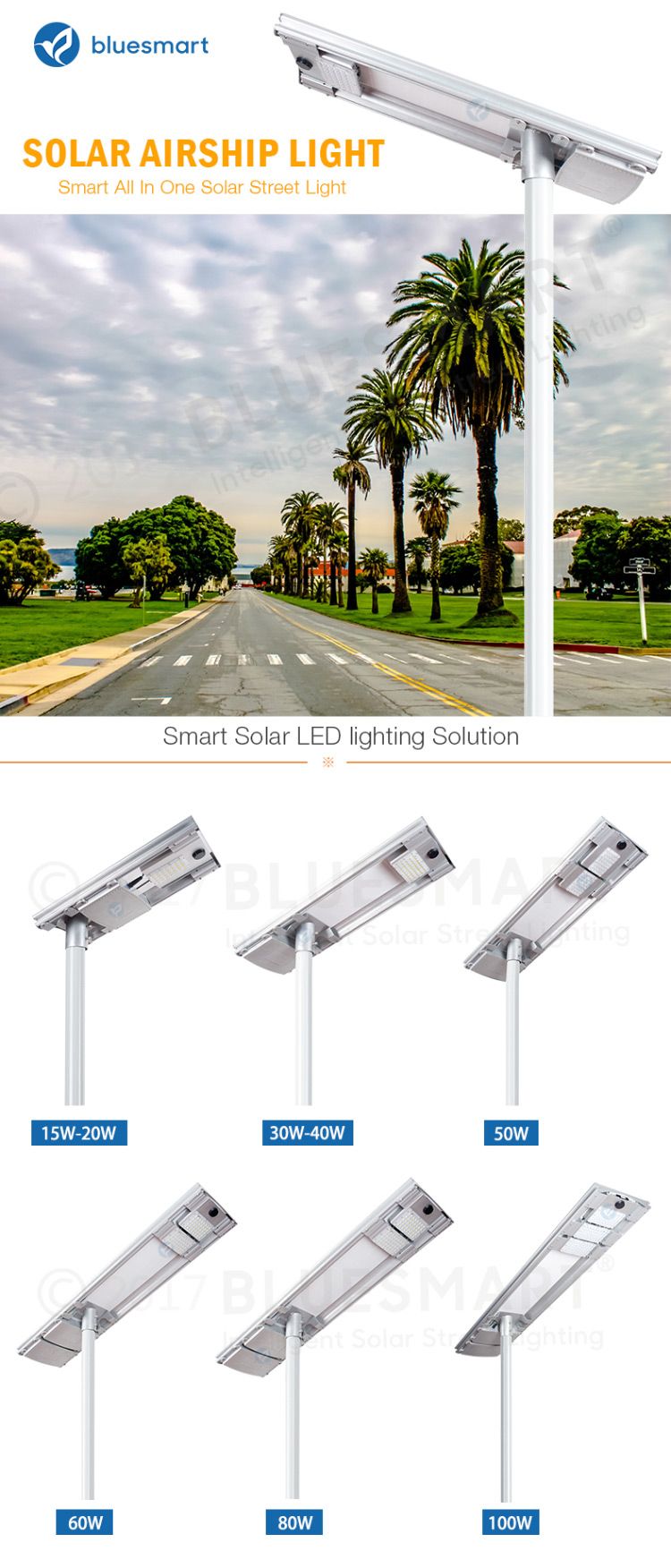

All-in-one/Integrated Solar LED Street Light with adjustable light source
Advantages:
1.This type is very convenient for customers to customize the light under their requirements.

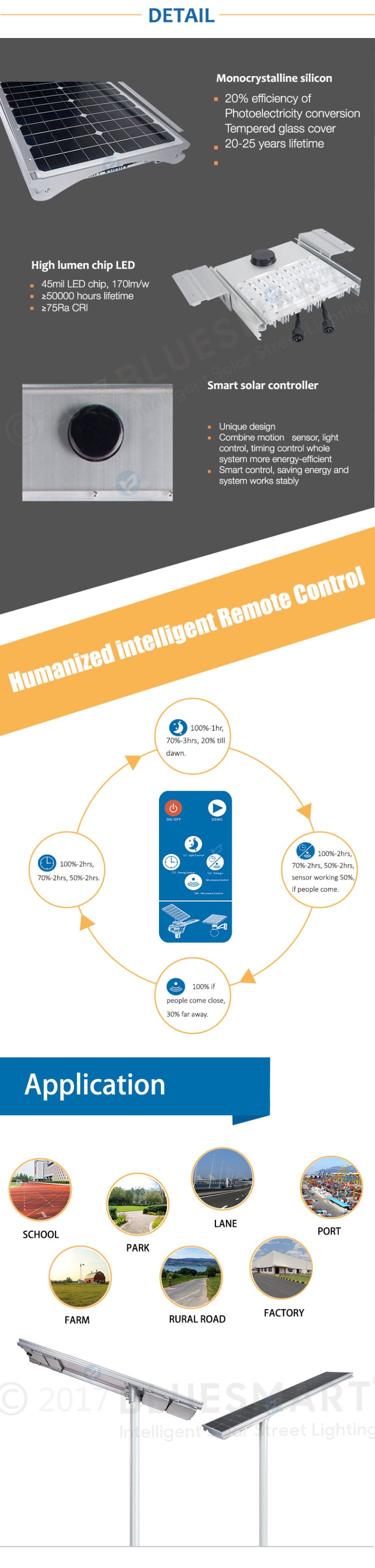

2.Microwave motion sensor system, light control system, time control system and time + microwave control system perfectly, ensure whole system more energy-efficient.
3.Easy installation-No power required, no cables required, easy installation within several minutes.
4.Solar panel and light angle adjustable-Adjustable in vertical direction, ensure maximum efficiency of photoelectricity conversion.
5.Good heat dissipation-Solar panel, battery and light body are not connected directly, LED light and lithium battery are not covered by a panel any more, longer lifetime.
6.All the materials are made of die-cast aluminum, good heat dissipation, high level in wind resistance, salt resistance, humidity resistance.
7.Lithium battery-Adopt lithium-ion ferrous phosphate battery to replace traditional gel battery, longer lifetime.

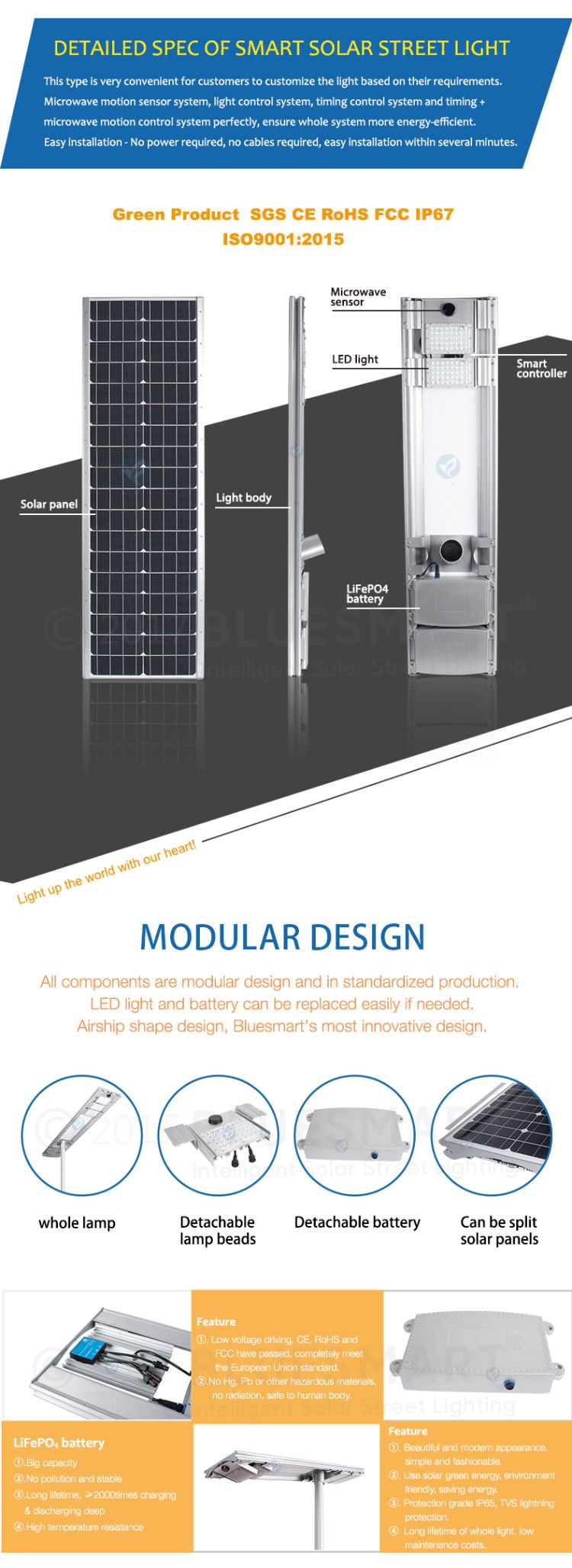

8.Modular design-All components are modular design and in standardized production. LED light and battery can be replaced easily if needed.
9.Airship shape design, Bluesmart's most innovative design.
10.The lithium battery is in a die-cast aluminum alloy box, which are more waterproof, the lifetime of battery getting longer.
11.The whole light is lighter, so the transport cost is less.
12.Wireless application-Integrated solar panel, LED, lithium battery, controller and other accessories into one system, simple and stylish.
Feature:
1.Beautiful and modern appearance, simple and fashionable.
2.Use solar green energy, environment friendly, saving energy.
3.Low voltage driving, CE, RoHS and FCC have passed, completely meeting the European Union standard.
4.No Hg, Pb or other hazardous materials, no radiation, safe to human body.
5.Protection grade IP65, TVS lightning protection.
6.Long lifetime of whole light, low maintenance costs.
Product Parameters:| Item | All-in-one/Integrated solar street light |
| Type | Integrated solar street light |
| Brand | bluesmart |
| Producing area | Shenzhen city, Guangdong province China |
| Model | BS-AS-30 |
| Solar module | Type | High efficiency monocrystalline silicon |
| Power | 55W DC18V |
| Lifetime | 20~25 years |
| Controller | MPPT | |
| Battery | Type | Lithium Iron Phosphate Battery(LiFePO4) |
| Capacity | 268.8WH/21AH 12.8V |
| Lifetime | 5~8 years |
| Detector | PIR | Detection distance≤10m |
| LED light | Power | 30W DC24V |
| LED chip brand | Bridgelux from US |
| LED power | 3 watt/LED |
| Luminous efficacy | 210lm/w |
| LED quantity | 40 pieces |
| Luminous flux | 4800-5400lm |
| Lifetime | ≥50000 hours |
| Viewing angle | 120° |
| Charging time | By sunshine | 6~8 hours |
| Lighting time | Full power | 9 hours |
| Saving mode | Continuously 3~5 rainy days, 12 hours per night |
| Control modes | 1.Light control; 2.Time control; 3. Microwave control; 4.Time + Microwave control |
| Delay time | 10 seconds |
| Light control voltage | 5V |
| Work temperature | Range | -25°C~+65°C |
| Color temperature | Range | 3500~6000K |
| Mounting height | Range | 5~6m |
| Installation distance | Range | 16~19m |
| Lamp body materials | High quality full die-casting Aluminium Alloy |
| Protection grade | IP65 |
| Certificates | CE, RoHS, FCC, SGS, UL, SAA, ISO9001, IP65 |
| Quality warranty | 3 years for the whole light |
| Pack & Weight | Product size | 990*360*150mm |
| Net weight | 13kg |
| Pack box | Color carton |
| Q'ty/ctn | 1set/ctn |
| Carton size | 1030*400*180mm |
| Gross weight | 14kg |
| Pack Containers | 20GP | 370 Pcs |
| 40GP | 770 Pcs |
| Shipping | Shipment time | 1~3 days for samples, 5~7 days for bulk order |
| Shipment way | Samples by express, bulk order by sea or air |
Notice
1. Solar panels should be installed away from lighting range of lamp holder, and others light source.
2. Keep away from the fire, otherwise the battery may explode.
3. Avoid hot, humid and corrosive environments, otherwise it will reduce the lifespan of the product.
4. Once the products are not used in more than 3 months, then they must be charged once at least.
5. The solar panel should be intalled toward the sun to get the best sunlight.
