Insulated Unit Glass for Building Window Doo Wall

Name: Insulated Unit Glass for Building Window Doo Wall
Brand: china-crystals.com
SKU: 730108475
Availability: InStock
Rating: 4.8 (81 reviews)

Price:	US $ 10/Square Meter
Trade Terms:	FOB
Min Order:	100/Square Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	083
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shape:	Flat
Structure:	Hollow
Usage:	Building
Type:	Insulated
Color:	Blue

Product Description

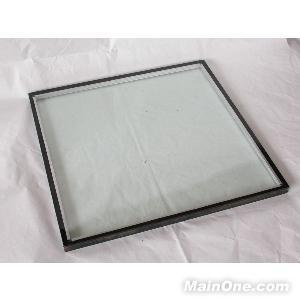

Insulated Unit Glass for Building window doo wall

*** manufactured by fusing tinted glass and low-E glass spaced by dry air or Argon gas. It is with exellent solar heat insulation property which greatly reduces cooling or heating loads and make building looks colorful and beautiful.

*** FUNCTION AND PROPERTY
1.Thermal insulationlow heat gain and heat loss value (low U value)
2. Light transmission.Appropriate level of solar transmission and solar reflectance can be selected to meet the design and functional requirement.
3. Noise insulationreduce noise level by 30 dB. with inert gas in-filled, a 5 dB further reduction can be achieved.
4. Condensing preventionOur insulated glass are designed to withstand down to -65degrees without condensing, which is far exceeding the National Requirement of -40degrees.
5. Leak proof

*** Specifications
clear folat glass, color tinted glass,reflective glass,sun shading glass, Nano glass, spandrel glass,low E glass,ultra clear glass , hst glass, laminated glass ,color ceramic glass, acid etched glass are available
air space 6A/9A/12A/15A /16A//20A/21AMax. Size 3000mm X 6000mm.

*** Strictly producing quality control1.
1. we use top quality raw materials to manufacture insulating to ensure the safe and quality
glass of low-E glass, solar control glass, tinted float glass, float glass are from Chinese 5 brands, such as Shanghai pilkinton(SYP), China south glass(CSG), Taiwan glass, Xingyi glass, Jinjing glass(G-crystal) or as to your nominated brand for raw glass

2. top branded aluminium spacer, stainless steel spacer and warm -edge spacer, color decration spacer are available

3. top branded silicone sealant, polysulfide sealant, butyl sealant are available

4. top branded molecular or dry agent availble

5 . we use soft water to clean the glass,then the galss surface are very clean and keep the quality in the further deeply processing.

6 .most important isAll these insulating processes are automatically finished by advanced machines, and robot arms, then the quality and surface quality is ensured, from aluminium framing, molecular filling, space sealing to packing.

7..Specially, to ensure IGU air tight, automatic bending machine is used for all four corners bending, with use of linear connector for the spacer.A dual seal system is adopted with PIB as primary seal, and silicone or polysulfide,as secondary seal. We use advanced fully automatic IG production line ,with automatic production operations covering spacer bending,filling of desiccant, edge deletion of coated glass, glass assembly,filling with inert gas and application of primary and secondary sealants

.
***Some technique Data

INSULATED GLASS PERFOMANCE PARAMETERS (ON-LINE LOW -E)

No.	product name	UVlight	visible light	visible light	direct sunlight	direct sunlight	total solar	SC	SHGC	K(summer daytime)	K(winter daytime)
No.	product name	trans.(%)	trans.(%)	reflec.(%)	trans.(%)	refec trans.(%)	energy trans.(%)	SC	SHGC	W/m².k	W/m².k
online 0.1	5mm grey+ 6A/9A/12A + 5mm clear low- E	12.14	38.7	9.45	32.54	9.19	47.12	0.53	0.458	2.61	2.564
online 0.2	( low-E is for third side)	3.03	21.13	17.89	23.34	16.43	36.45	0.41	0.354	2.61	2.564
online 0.3	5mm grey refelective + 6A/9A/12A + 5mmclear low-E	16.26	49.04	11.19	34.88	9.4	49.78	0.56	0.481	2.61	2.564
online 0.4	5mm ford bule + 6A/9A/12A + 5mm clear low-E	2.66	20.98	24.93	20.09	19.43	32.89	0.37	0.317	2.61	2.564
online 0.5	5mm ford bule reflective + 6A/9A/12A + 5mm clear low-E	14.75	60.52	14.5	33.75	9.33	48.01	0.54	0.469	2.61	2.564
online 0.6	5mm F green + 6A/9A/12A + 5mm clear low-E	2.03	24.35	36.11	17.4	20.57	30.23	0.34	0.289	2.61	2.564
online 0.7	5mm Fgreen reflective + 6A/9A/12A + 5mm clear low-E	28.33	72.3	18.49	57.93	14.72	72.01	0.81	0.705	2.608	2.563
online 0.8	5mm clear + 6A/9A/12A + 5mm clear low-E(double tempered)	28.33	72.3	18.49	57.93	14.72	72.01	0.81	0.705	2.608	2.563
online 0.9	5mm clear reflective + 6A/9A/12A + 5mm clear low-E	7.55	42.5	37.2	41.24	29.66	52.45	0.59	0.515	2.61	2.564
online 0.10	5mm light bule + 6A/9A/12A + 5mm clear low-E	16.03	57.49	13.68	37.39	10.16	51.56	0.58	0.505	2.61	2.564
online 0.11	5mm light bule reflective + 6A/9A/12A + 5mm clear low-E	2.69	24.3	32.89	21.8	23.06	33.78	0.38	0.329	2.606	2.561
online 0.12	6mm light grey + 6A/9A/12A + 6mm clear low-E	9.47	33.32	8.38	27.43	8.29	41.78	0.47	0.410	2.159	2.084
online 0.13	6mm light grey reflective + 6A/9A/12A + 6mm clear low-E	2.11	17.25	14.55	18.69	13.5	2	0.36	0.308	2.159	2.084
online 0.14	6mm ford bule + 6A/9A/12A + 6mm clear low-E	13.63	44.09	9.92	29.63	8.57	44.45	0.5	0.434	2.159	2.084
online 0.15	6mm ford bule reflective + 6A/9A/12A + 6mm clear low-E	2.07	17.25	21.9	15.39	16.91	27.56	0.31	0.268	2.159	2.084
online 0.16	6mm F green + 6A/9A/12A + 6mm clear low-E	11.51	56.73	12.84	28.98	8.31	43.56	0.49	0.427	2.159	2.084
online 0.17	6mm Fgreen reflective + 6A/9A/12A + 6mm clear low-E	1.61	22.11	34.87	14.31	19.11	25.78	0.29	0.253	2.159	2.084
online 0.18	6mm clear + 6A/9A/12A + 6mm clear low-E	26.43	70.49	17.2	53.31	13.62	70.23	0.79	0.687	2.157	2.083
online 0.19	6mm clear + 6A/9A/12A + 6mm clear low-E(double tempered)	26.43	70.49	17.2	53.31	13.62	70.23	0.79	0.687	2.157	2.083
online 0.20	6mm clear reflective + 6A/9A/12A + 6mm clear low-E	4.95	35.37	40.05	35.71	31.18	48.9	0.55	0.473	2.159	2.084
online 0.21	6mm light bule + 6A/9A/12A + 6mm clear low-E	13.78	53.86	12.36	33.61	9.6	48.9	0.55	0.476	2.159	2.084
online 0.22	6mm light bule reflective + 6A/9A/12A + 6mm clear low-E	2.05	21.19	32.32	18.03	21.89	30.23	0.34	0.290	2.159	2.084

No.	product name	visible light			solar derect(%)		SHGC	SC	RHG	U(K)	U(K)
No.	product name	trans.(%)	reflec.(%)		trans.(%)	reflectance out				day time	night time
		trans.(%)	outdoor	indoor						in summer	in winter
online 2.3	8mm clear + 6A/9A/12A + 8mm clear low-E	70	11	12	46	17	0.54	0.62	405.000	1.82	1.82
online 2.4	8mm green + 6A/9A/12A + 8mm clear low-E	55	9	11	23	8	0.32	0.37	248.000	1.82	1.82
online 2.5	8mm blue + 6A/9A/12A + 8mm clear low-E	40	7	10	24	8	0.33	0.38	254.000	1.82	1.82
online 2.6	8mm grey + 6A/9A/12A + 8mm clear low-E	27	6	9	20	8	0.29	0.33	222.000	1.82	1.82
online 2.7	8mm light blue + 6A/9A/12A + 8mm clear low-E	52	15	10	33	19	0.4	0.46	304.000	1.83	1.83
online 2.8	8mm green + 6A/9A/12A + 8mm clear low-E	42	12	10	17	9	0.26	0.3	204.000	1.83	1.83
online 2.9	8mm blue + 6A/9A/12A + 8mm clear low-E	29	9	9	17	9	0.26	0.3	204.000	1.83	1.83
online 2.10	8mm grey + 6A/9A/12A + 8mm clear low-E	20	6	8	13	8	0.23	0.26	178.000	1.83	1.83
online 2.11	8mm grey + 6A/9A/12A + 8mm clear low-E	45	21	10	26	26	0.33	0.38	254.000	1.78	1.79
online 2.12	8mm green + 6A/9A/12A + 8mm clear low-E	35	14	10	15	9	0.24	0.28	191.000	1.78	1.79
online 2.13	8mm blue + 6A/9A/12A + 8mm clear low-E	25	11	10	16	9	0.25	0.29	197.000	1.78	1.79
online 2.14	8mm grey + 6A/9A/12A + 8mm clear low-E	18	7	8	11	8	0.21	0.24	165.000	1.78	1.79
online 2.15	8mm silver grey + 6A/9A/12A + 8mm clear low-E	34	33	10	20	35	0.26	0.3	203.000	1.71	1.73
online 2.16	8mm green + 6A/9A/12A + 8mm clear low-E	28	21	10	11	12	0.2	0.23	159.000	1.71	1.73
online 2.17	8mm blue + 6A/9A/12A + 8mm clear low-E	19	17	10	11	12	0.2	0.23	159.000	1.71	1.73
online 2.18	8mm grey + 6A/9A/12A + 8mm clear low-E	14	8	9	8	9	0.18	0.21	146.000	1.71	1.73

Yilin Glass Manufacturing Co., Ltd, one of Chinese leading glass processing manufacturers, established in 2001, located in Suzhou city, near Shanghai sea port, with 62 employees, including 8 engineers, specialized in manufacturing tempered glass (toughened glass), insulated glass, laminated glass. They are widely used for window, door, partition, building inside and out side decoration, as well as for furniture and appliance. Annual producing capability of 750, 000sq. Meters

Equipped with the most advanced machines, production and administration approved by ISO 9001: 2000, our products have been certificated by AS/NZ, CE, ANSI, CCC(3C).

In China, our glass is accepted and enjoys a good reputation in Shanghai building market. In overseas building market, it is exported and used in Canada, USA, Germany, Russia, Australia, Indonesia, South Africa and Brazil.

No matter where you are! We are looking forward to working with you in the near future.

Our Business Advantage

1) stable and mature deep-processing technology

2)skilled workers and engineers team & advanced business management mode

3)specialized production & competitive cost

We manufacture the following high quality glass products

1)Tempered Glass Products: Pool fence glass, shower screen glass, balustrade glass, balcony glass, partition glass, shop front glass, wall curtain glass, shelf glass, door table glass etc.

2)Insulated Glass Products: Double glazing, low-E insulated glass, reflective insulated glass, tinted insulated glass, double glazing venetian blinds, used for window door and building curtain wall.

3)Laminated Glass Products: Large size laminated, color PVB film laminated

Glass, balustrade glass, ceiling glass, curtain wall glass
