Name: Injection Silicone for crystal Diamond Mold Making
Brand: china-crystals.com
SKU: 792716245
Availability: InStock
Rating: 4.3 (82 reviews)

Price:	US $ 8.9-13.55kilogram
Min Order:	200kilogram
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	E-640 silicone for mold making
Color:	Translucent
Feature:	Liquid
Sample:	Available
Purity:	100%
Certifications:	RoHS, MSDS, SGS, ISO9001:2000
Minimum Order Quantity:	200 Kilogram
Brand Name:	Hong Ye Silicone Rubber
Place Of Origin:	Guangdong China
Application:	Silicone Rubber for Mold Making
Material:	Silicone Rubber
Appearance:	Liquid

Product Description

Injection silicone for cystal diamond mold making

Description of injection molding silicone

Addition molding silicone is generally named two-components silicone

rubber, Part A and part B. It features an exceptional fluidity and good operability. The

mixing ratio is 1:1,mainly be suitable for making molds application.

Applications of injection molding silicone

Addition molding silicone could be mainly used for making concrete

Stones mold , resin jewelry mold , statue mold, artificial craft mold, wax molds, PU molds, resin molds, gypsum casting, candle molding and chocolate , candy and any other FDA food product mold making,prototyping , resin jewelry pendant ,etc.

Advantage of injection molding silicone

* low shrinkage (less than 0.1% )

*high tensile and tear strength with high copy times

*easy for operation (mixing ratio at 1:1)

*good fluidity easy for pouring operation ( in round 10000 cps )

Technique Data Sheet of injection silicone

Product	E-642
Appearance	Translucent
Hardness(shore A)	42±2
Mix ratio(A:B)	1:1
Viscocity(mPa.s)	12000±2000
Tensile strength (kgf/cm²)	50±5
Tear-strength (kN/m)	18±2
Elongation(%)	450±50
Pot life/working time (mins)	30-40
Curing time/setting time (hrs)	3-4hrs(25°C) 110-20mins(60°C)
Shrinkage rate (%)	≤0.1

(Note: the hardness , color, curing time and operation time is adjustable)

Operation instruction of HY-E Series molding silicone:

1. Pls clear the model and tool totally before operation to prevent cure inhibition.

2.Weigh the two part correctly by electronic weight in two separate container .

3. Mixing the two part in 1:1 and stir part A and part B evenly in 2-3 minutes .

4.And get the mixture for vacuum-pumping for de-air the bubble in around 2-3

minutes . (If there is no vacuum machine, pls pour the mixture carefully and slowly

down the side of the mold frame so that less bubbles caused)

5. Enclose the product (the original model) with four plastic plates or wooden plates.

6. Clean your products and brush a layer of release agent(detergent or soap water) on

your product.

7. Pour the vacuumed mixture into the model frame from the side of the mold frame .

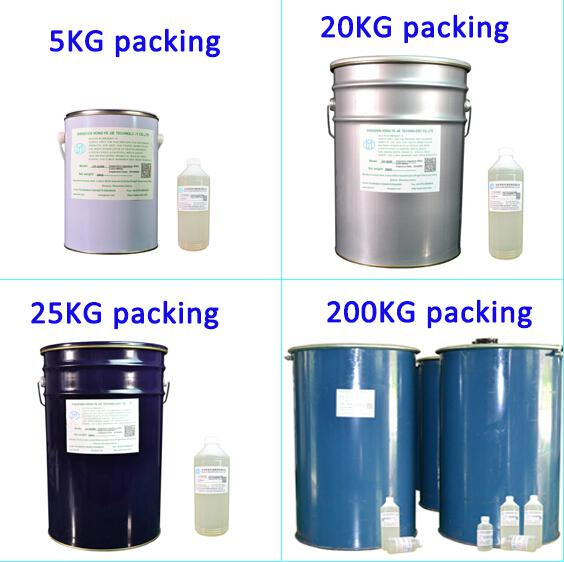

Package

More information , pls feel free to contact Ms Hebbe:
Mob:+8618938861889

We are manufacturer spcializing in silicon rubber material, such as silicone gel, pad printing silicon, RTV-2 silicone rubber, HTV, RTV-2 room temperature sulfurated silicon rubber, silicon, shoe molding silicon, silicon rubber, manul molding silicon, liquid silicon rubber, LSR, pad printing silicone rubber, mixed iron-smelting silicon rubber, solid silicone rubber, methyl-ethenyl silicone rubber, molding silicone rubber, mold duplicating rubber for resin craft makers, special silicon for manual molding, shoe mold rubber, pad printing silicon, silicon oil, 107 base, DMC etc. For plastic toys factories. With a product line of tens of categories, we can offer quick copying with precise contraction ratio (up to two thousandth) for mold making. To reach the internationally leading quality standard with competitive price is our best ambition that merits your trust.

RTV-2 Mold making silicone rubber

[1] RTV-2 silicone rubber for mold making

RTV-2 molding silicone rubber mainly applicable to make the silicone mould for cultural relic duplication, architectural decoration, resin crafts, lighting ornaments, candles, statues, model design, product exploitation, etc.

[2 ]RTV-2 silicone rubber for pad printing

Pad printing silicon rubber is specially designed for silicon pads which requires to be exquisite, without impurity or granules. Silicon pad is a carrier which transfer printing the patterns on the steel plate onto the toy products' Surface. Pad printing silicone rubber is mainly used for printing irregular patterns of plastic toys, electroplating products, electronic toys, trademarks.

[3] RTV-2 manual mold silicon rubber

RTV-2 manual mold silicon rubber is mainly applied in manual mold design, PVC plastic mould, cement product mould, melting-point alloy mould, alloy toy crafts, plastic toy, craftwork, gift and stationery, big statue, cultural relic duplication, shoe sole mould production, pad printing orientation, electronic appliances vibration resistance, etc.

[4] HTV-2 Silicone rubber

HTV-2 silicone rubber is applied in metal crafts, hot stamping silicone roller, hot stamping silicone plate, mobile phone keycap, PC keycap, telephone keycap, TV remote control keycap, electronic products, silicone rubber products field, etc.

[5] Disc silicone rubber

Disc silicone rubber is mainly applicable to zinc aluminum alloy arts and crafts, imitation of gold and silver ornaments, fishing tools, bracelets, hanging ornaments, furniture fittings, decoration accessories, toys and gifts, etc.
