Product Specifications
| Prod Model: |
part |
| Type: |
Single Wall |
| Style: |
Simple |
| Certification: |
ROHS |
| Capacity: |
1 |
| Shape: |
Cap |
| Cup Accessories: |
1 |
| Glass Type: |
Sapphire |
| Technics: |
Polishing |
| Usage: |
Industrial |
| Fancy: |
Transparence |
Product Description

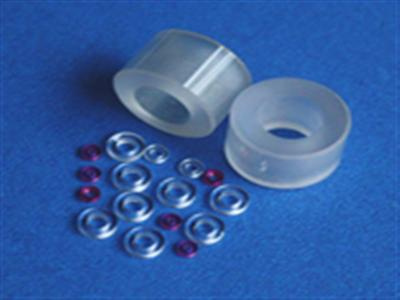

Cup jewels are chiefly applied to electronic meter, hot water meter, liquid measuring instrument and movement system of single-phase and triphase KHW meter.

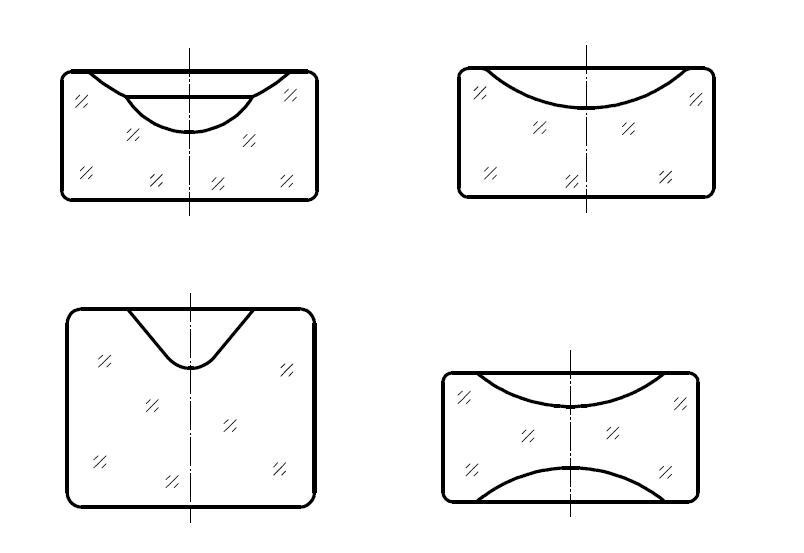

These cup jewels contain four types: spherical bearing, conical bearings, double cups on one face bearing, and single cup on double surfaces bearing.
Main Types
Specification and Technical Index
| Item | Outside Diameter | Height | Curvature radius | Cup depth | Taper |
| Size | Φ0.80 ~ Φ25 | 0.30 ~ 25 | 0.10 ~ 150 | 0.05 ~ 12 | 40°~ 160° |
| Tolerance | h7 ~ h9 | 0.01~ 0.10 | +/-0.01 ~ +/-2.00 | +/-0.01~+/-0.10 | +/-5° |
| Surface roughness: Rz0.05~ Rz0.8 |
Material
Synthetic sapphire&ruby single crystal α-Al2O3, natural agate, crystallite glass and ceramic, etc.
Order
Produce according to specific requirements and drawings, and also can design products for customers.
