Impregnated Casing Shoe Bit & Diamond Casing Bit
| Price: |
US $ 80-150/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
4" 5" 6" 8" 10" |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shape: |
Round |
| Usage: |
Drilling |
| Manufacturing Arts: |
Sinter |
Product Description

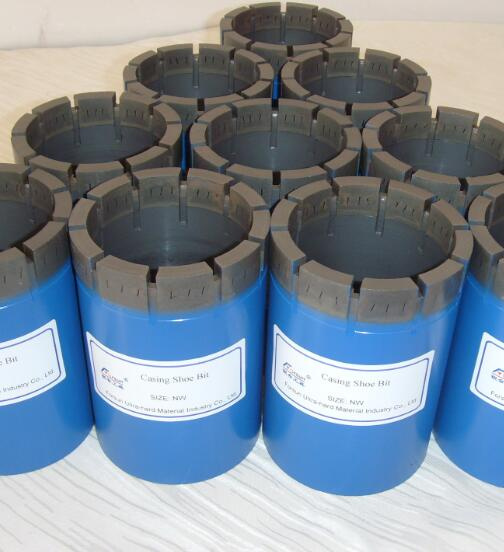

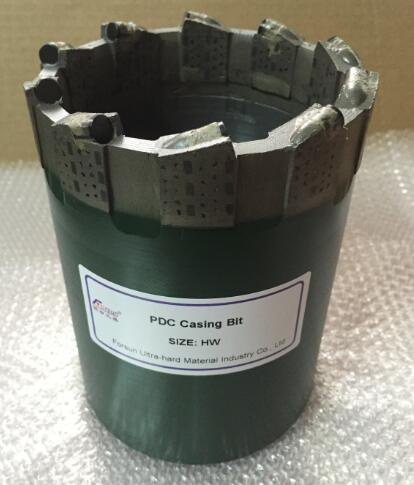

Casing Shoes
This group of products is used on the leading edge of a casing tube string to advance it through the overburden layer and into the bedrock by means of rotational drilling. Depending on the range of application, the cutting media on the core bit may take the form of synthetic diamond, tungsten-carbide particles or tungsten-carbide elements.

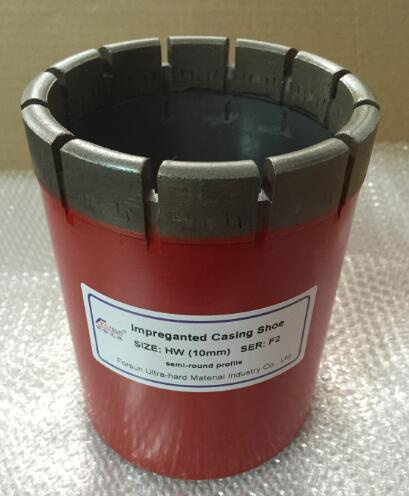

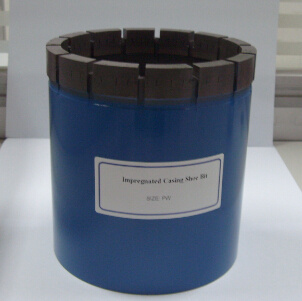

Diamond Impregnated Casing Shoes
The diamond impregnated casing shoe is the most commonly used as it has the widest range of application and is generally the most efficient tool for advancing casing through overburden layers. Dimatec manufactures two types of diamond impregnated casing shoes that may be used with all sizes of standard casing tubes.
In addition to casing shoes, Dimatec also manufactures diamond impregnated rod shoes. In terms of design, rod shoes are very similar to casing shoes and differ only in their thread connections. Rod shoes are used where wireline drill rods are used as casing tubes.
The basic construction of these casing shoes and rod shoes features a sintered powdered metal crown that is fused to a steel tool body or shank.
Unlike the matrix layer, the backing layer does not contain diamond crystals distributed throughout its volume. The backing layer is also composed of a powdered metal bond material and has good wear resistance properties. The exposed outside and inside gauge diameter surfaces of this layer are set with a combination of thermally stable polycrystalline synthetic diamond elements and tungsten-carbide wear pads. These gauge setting materials assist in maintaining the critical gauge diameters throughout the life of the shoe.
Super Duty Casing Shoes / Super Duty Rod Shoes
Tungsten-Carbide Casing Shoes
This type of casing shoe uses seismic grade tungsten-carbide as the cutting media. Tungsten-carbide does not possess the hardness of diamond and as such has a limited range of application as a drill tool cutting media. Tungsten-carbide casing shoes are however a very cost effective means of drilling through softer unconsolidated formations. There are two types of tungsten-carbide casing shoes produced by Dimatec: The "carbide-chip" and the "saw-tooth" types.
In addition to casing shoes, Dimatec also manufactures tungsten-carbide rod shoes. In terms of design, rod shoes are very similar to casing shoes and differ only in their thread connections. Rod shoes are used where wireline drill rods are used as casing tubes.
Saw-Tooth Tungsten-Carbide Casing Shoes and Rod Shoes
These tools are set with large, rectangular-shaped tungsten-carbide elements that are physically embedded into the crown of the tool. The bit face has an aggressive saw-tooth pattern with integral canal type waterways. The bit crown itself is composed of a tough, wear resistant metal-bond matrix material. The gauge diameters of the tool are also heavily set with tungsten-carbide wear pads.
The application of this type of tool is primarily in geotechnical soil investigation or for advancing casing tubes through overburden layers that are composed mainly of clay, sand, gypsum or soft shale
Carbide-Chip Casing Shoes and Rod Shoes
The cutting media used in this type of casing shoe are crushed tungsten-carbide chips that are suspended in a metallic alloy that is fused to the steel body of the tool. Typically, these tungsten-carbide chips have a granular size 0.08 to 0.20 inch (2 to 5mm) and have a totally random orientation within the bit crown. The face profile is somewhat irregular and the waterways are of the standard canal type (Style "W") design.
This type of casing shoe crown has considerably more cutting edges than the "saw-tooth" variety and as such has a wider range of application that includes slightly harder sedimentary formations.
FORSUN is a manufacturer of Diamond Core Bits, Reaming Shells, Core Barrels, Drill Rods, Casings, other Drilling Accessories and Drilling Rigs which are used mainly in mineral exploration, site investigation, water well construction. FORSUN products are produced according to ISO, DCDMA, CDDA, Metric, and Chinese standards. So far FORSUN products have been exported to more than 50 countries. With qualified and professional staff as well as advanced production technologies and equipment, FORSUN is capable to offer customers both the standard and customized products.
Forsun is a leading manufacturer and supplier of drilling equipment, specializing in producing Diamond Core Bits (Impregnated and Surface Set, E. P. ), Reaming Shells, Core Barrels, Drill Rods, Water Swivels, Hoisting Plugs, SPT complete, and other drilling tools and accessories.
Sizes Available:
Diamond core drill bits and diamond non-core drill bits
A-Gauge Core Bits: A, A-RSG, AWG(AX), AWM, AWT, LTK48
B-Gauge Core Bits: B, B-RSG, B-2.400, B3, BWG(BX), BWM, BWT, LTK60, TBW
N-Gauge Core Bits: N, NMLC, NWG(NX), NWM, NWT, TNW
H-Gauge Core Bits: N, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT
P- Gauge Core Bits: P, P3, PWF-Long, PWF-Short
S- Gauge Core Bits: SWF-Long, SWF-Short
U- Gauge Core Bits: UWF-Long, UWF-Short
Z- Gauge Core Bits: ZWF-Long, ZWF-Short
T, TT, T2 &TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76, T2-76 coreline, T2-86, T2-86 coreline, T2-101, T2-101 coreline
T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146
And all other standard CDDA, DCAMA, Crealius, and ISO sizes.
