Product Specifications
| Prod Model: |
900Kgs/day |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Performance: |
Efficient Filtration |
| Style: |
Vertical |
| Motive Force: |
Electric power |
| Type: |
Reverse Osmosis |
| Usage: |
Environmental Protection |
| Certification: |
GS |
Product Description

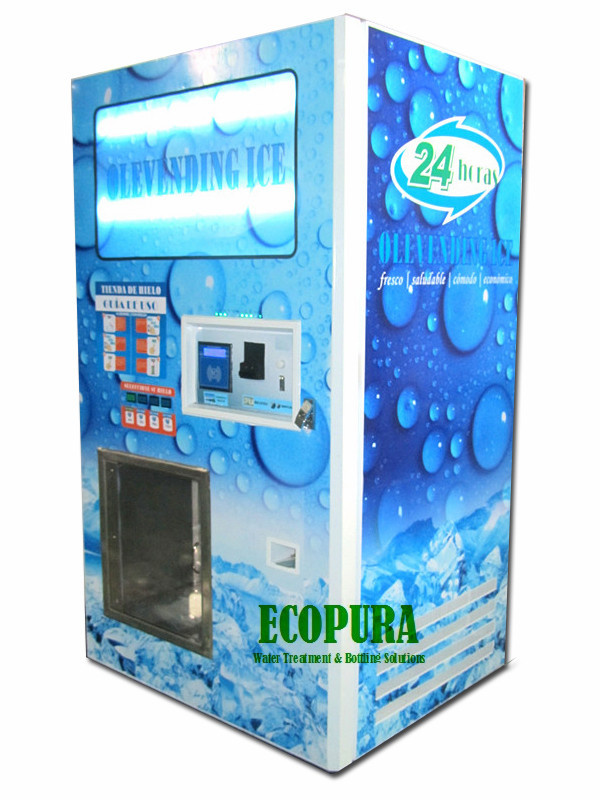

Ice koisk for bag ice and bulk ice
GSM mobile remote system, know daily sales amount and machine status on mobile.
26inch LCD screen, auto display video, picture and adverts.
1. Luxurious waterproof steel cabinet, the front door open design, safety and heath, durable and easy installation.
2. The parts of connecting with ice and water, all adopt food grade stainless steel 304
3. Use advanced stable Intelligent coin, induction IC card and note selling control technology
4. It can add GSM remote control system for option.
5. Use energy efficient ice mold cycle spray making ice technology, ice-cube is square and crystal clear.
6. High efficient and stable bagging technology, achieve output bag, divide bag, bag ice seal, and so one, all is automatic.
7. There are two options of bulk ice and bag ice to satisfy different requirements.
8. Achieving make ice, water full to stop, lack ice to stop sale, lack water to stop sale water, lack bag to stop sale alarm, etc, all is automatic. (It's possible to add GSM remote control system to report status.
9. Advanced Reverse osmosis purification technology, the water quality reach pure water standard.
Techical date
1 Power Supply AC 220V-50Hz/ AC 110V-60Hz
2 Consumption 4.3KW
3 Rated Current 220V 13.7A/110V 27.3A
4 Capacity Of Ice 900KG/24H(below 20degree)
6 Size Of The Ice-Cube 2.2cm× 2.2cm× 2.2cm
7 Capacity Of Ice Mould Space 540 Space
8 Spec Of Compressor 5P
9 Refrigerant R134A
10 Cooling Method Spray Cycling Spray
11 Radiating Method Air (Can Customize Water Cold )
12 Capacity Of Ice Tank 150KG
13 Material Of Ice Tank Stainless Steel 304
14 Water Source Municipal Tap Water
15 Pressure Of Raw Water ≥ 0.1mpa
16 Flow Of Inlet Water ≥ 1500L/H
17 Capacity Of Pure Water 600GPD
18 Recovery 30% To 50%
19 Charge Method Of Sale Water Deduct Through Flow Impulse
21 Sales Method Induction IC Card/Coin /Bill/Give Change/GSM Remote Monitor(Option)
22 Dispensing Ice Bulk Ice/Bag Ice
23 Bag Ice Auto Output Ice, Divide Bag, Measure Bag Ice, Seal (All Is Automatic )
24 Bag Size 22cm× 50cm/22cm× 75cm
25 Bag Thickness 0.05mm(Single Layer)
26 Range Of Bag Ice 1KG To 5KG
27 Capacity Of Inside Storage Bag About 300 PCS
28 Size Of Bulk Ice Tank W45cm× D35cm× 50cm (Incubator Within The Size)
29 Machine Size W180cm× D100cm× 220cm
30 Package Size W195cm× D115cm× 230cm
|
Item |
Spec |
|
Power Supply |
AC 110V-220V/50Hz |
|
Capacity Of Ice |
900kg/24 Hours |
|
Ice Store Tank Capacity |
150kg |
|
Output Ice Speed |
1kg/5seconds |
|
Time of getting ice(from press START button including bagging, sealing ) |
Around 2mins |
|
Size of the ice-cube |
22*22*22mm |
|
Capacity of per bag |
0.5-2kg |
|
Size of the bag |
220*500mm |
|
Capacity of bag |
300 pcs |
|
Ice Container |
Plastic Bag/Incubator |
|
Payment system |
Can Via Coin/ Note /IC Card |
|
Dimension |
180cm × 100cm (D)× 220cm |
