Product Specifications
| Prod Model: |
CV4000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
CV4000 |
| Capacity: |
4000 Kg in 24 Hours |
| Ice Cube Size: |
22mm*22mm*22mm or 29mm*29mm*22mm |
| Freezing Time: |
20min or 23min |
| Certification: |
CE |
| Cooling Way: |
Water Cooling System |
| Control System: |
PLC Program Control |
| Comrpessor: |
Bitzer/Refcomp/Copeland |
| Refrigerant: |
R22 or R404A |
| Natural: |
Food-Grade |
| Control: |
Electric |
| Structure: |
Integral Type |
| Application: |
Commercial |
| Condensing Mode: |
Water-Cooled |
| Filtering Device: |
With Filtering Device |
| Automatic Cleaning Device: |
With Automatic Cleaning Device |
| Ice Shape: |
Solid Ice Cube with Crystal |
| Power: |
15000W |
| Material: |
Stainless Steel 304 |
Product Description

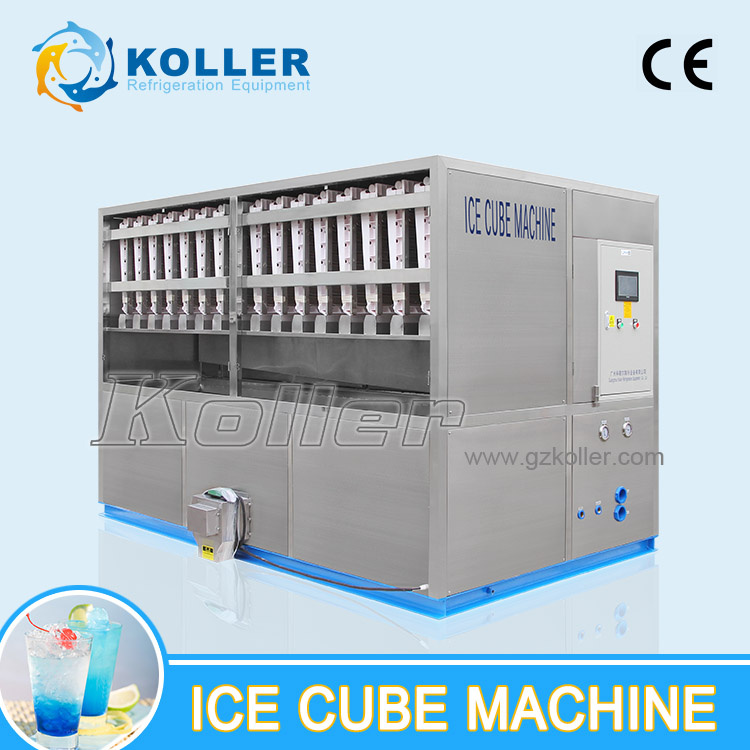

CV4000 Ice Cube Machine/Cube Ice Machine
(1) Capacity: 4tons in 24hrs
(2) Ice size: 22mm*22mm*22mm or 29mm*29mm*22mm
(3) PLC program control
CV4000 cube ice machine is made up of two parts: Cube ice machine & cooling tower. They are size as follow:
Cube Ice Machine is: 2690mm*1930mm*1870mm
Cooling tower: 1650mm*1650mm*1480mm.
1. Reasonable design for the framework structure with stainless steel 304, save space, and easy to install;
2. Greatly save energy, only 80-85kw powers are consumed to produce one-ton ice;
3. Ice dropping automatically, No ice dropping auxiliary equipment, lower the error rate ice outgoing;
4. Special ice outlet. Ice discharging automatically, No need taking ice by hand which can guarantee the ice clean and sanitary, meanwhile, it is matched with ice packing system to package the ice by plastic bags.
5. Installation:
1). Installing by the user: We will tested and install well the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2). Installing by Koller engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready. Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
(4) 2~ 3 workers are required to assist the installation for big project.
(5) Any delay due to customer's reason, it will be charged from the 8th day, USD100/day for one person as installation fee. Free of charge for one week.
6. Equipped with Siemens PLC central program control, which allows multiple functions such as automatic machine start and shut down; Ice stopping production when the ice bins are full, Automatic water making up.
7. Freezing time: 20 minutes to 23 minutes.
| Model | Capacity
(Ton/24hrs) | Compressor
Power(KW) | Compressor
brand | Water pump power (KW) | Outer Dimension(mm) (Length*Width*Height) |
| CV1000 | 1 | 3 | Bitzer/Refcomp/Copeland | 0.55 | 1380*1440*1800 |
| CV2000 | 2 | 6 | Bitzer/Refcomp/Copeland | 1.5 | 1770*1510*2040 |
| CV3000 | 3 | 9 | Bitzer/Refcomp/Copeland | 1.5 | 2070*1920*2030 |
| CV4000 | 4 | 15 | Bitzer/Refcomp/Copeland | 3 | 2690*1930*1870 |
| CV5000 | 5 | 18.5 | Bitzer/Refcomp/Copeland | 3 | 3060*1920*2020 |
| CV6000 | 6 | 22.5 | Bitzer/Refcomp/Copeland | 3 | 4000*2100*2100 |
| CV8000 | 8 | 30 | Bitzer/Refcomp/Copeland | 4 | 5200*2050*2100 |
| CV10000 | 10 | 37.5 | Bitzer/Refcomp/Copeland | 4 | 5880*2050*2100 |
| CV15000 | 15 | 57.45 | Bitzer/Refcomp/Copeland | 7.5 | 8200*2100*2100 |
| CV20000 | 20 | 74.30 | Bitzer/Refcomp/Copeland | 7.5 | 11600*2100*2100 |
1. Research, Design, Sale, Manufacture
2. Cube Ice Machine / Block Ice Machine / Plate Ice Machine / Tube Ice Machine.
3. Products sold well in Southeast Asia, Europe, Middle Ease, Africa, South America, Australia, South Pacific Islands etc.
Guangzhou Koller R & E Co., Ltd. (Koller) is established under the management of Guangzhou Vista M&E Equipment Co., Ltd since 2004. Because of foreign investment, our company decides to expand investment and moves to Panyu District, Guangzhou, China for a better purchase platform and high-quality products.
Our experience: We have engaged in the refrigeration for more than seven years and have rich experience in research, design, production, sales and after sales in refrigeration and heat exchange.
Our Service Team: With strong team cooperation, great passion, and 100% patience, responsibility for each department for each staff.
Our Aim: 100% satisfaction
Our After sales Service: Have owned an exquisite refrigeration engineers team with advanced refrigeration technology and mechanical treatment technology, service at any time with best attitude.
Our Customer Project Country: South Africa, Tchad, Nigeria, Mali, Malaysia, Cambodia, Philippine, Vietnam, Turkey, Papua New Guinea, Iran, Saudi Arabic, Mexico, Venezuela, Curaco.
Our Product Application Filed: Large edible ice plants, supermarkets, aquatic products processing, pelagic fishery, vegetable/fruit processing and fresh keeping, meat processing and concrete cooling
Our Products: Commercial Ice Cube Machine; Commercial Ice Block Machine; Industrial Ice Block Machine; Tube Ice Machine; Plate Ice Machine; Ice Packaging System; Ice Conveyor System; Cold Room (Walk In Freezer).
