Product Specifications
| Prod Model: |
Polycarbonate Sheet |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Maxinum:Width:2100 Length:Any: |

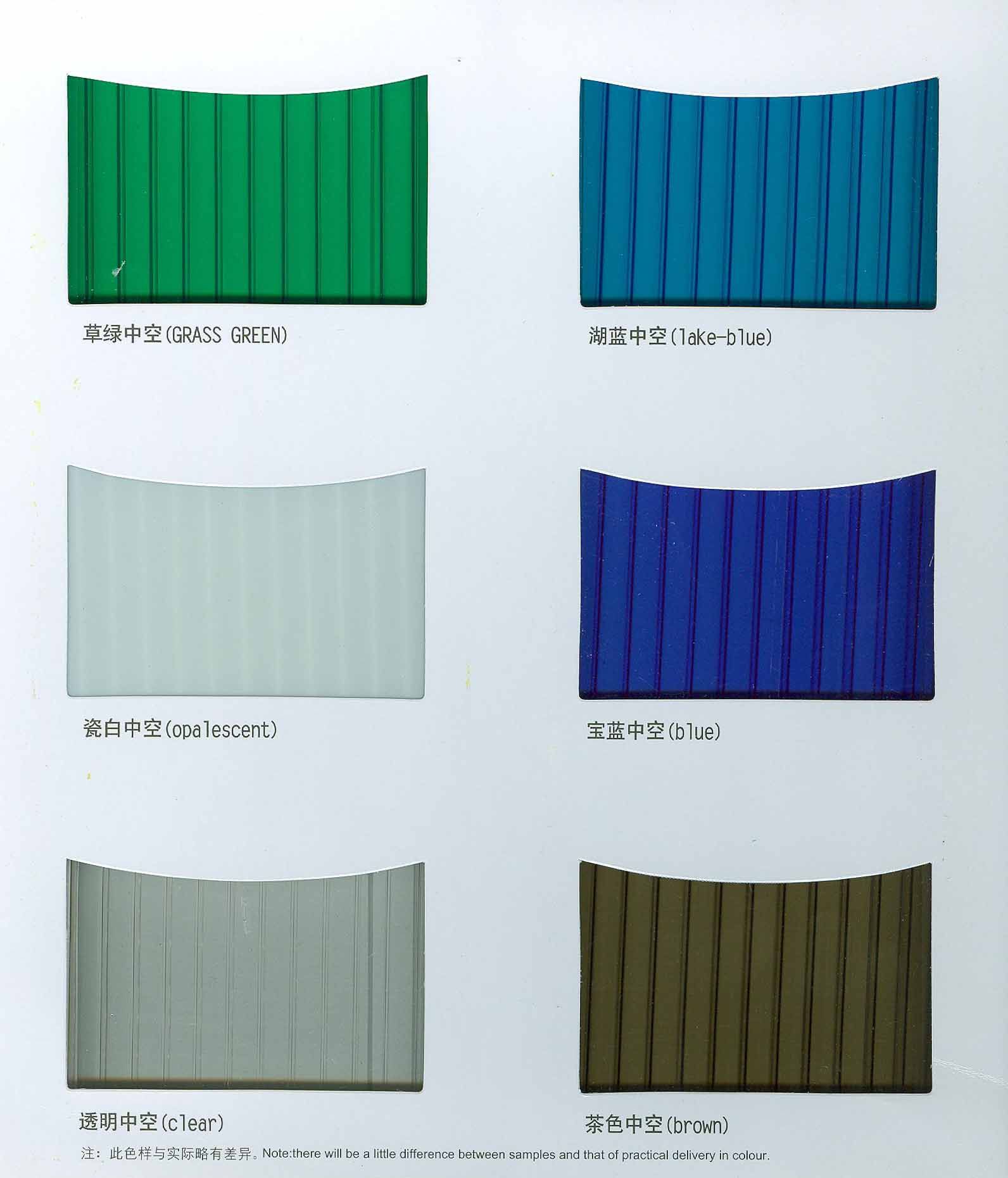

Color:All |
| Material: |
PC |
Product Description

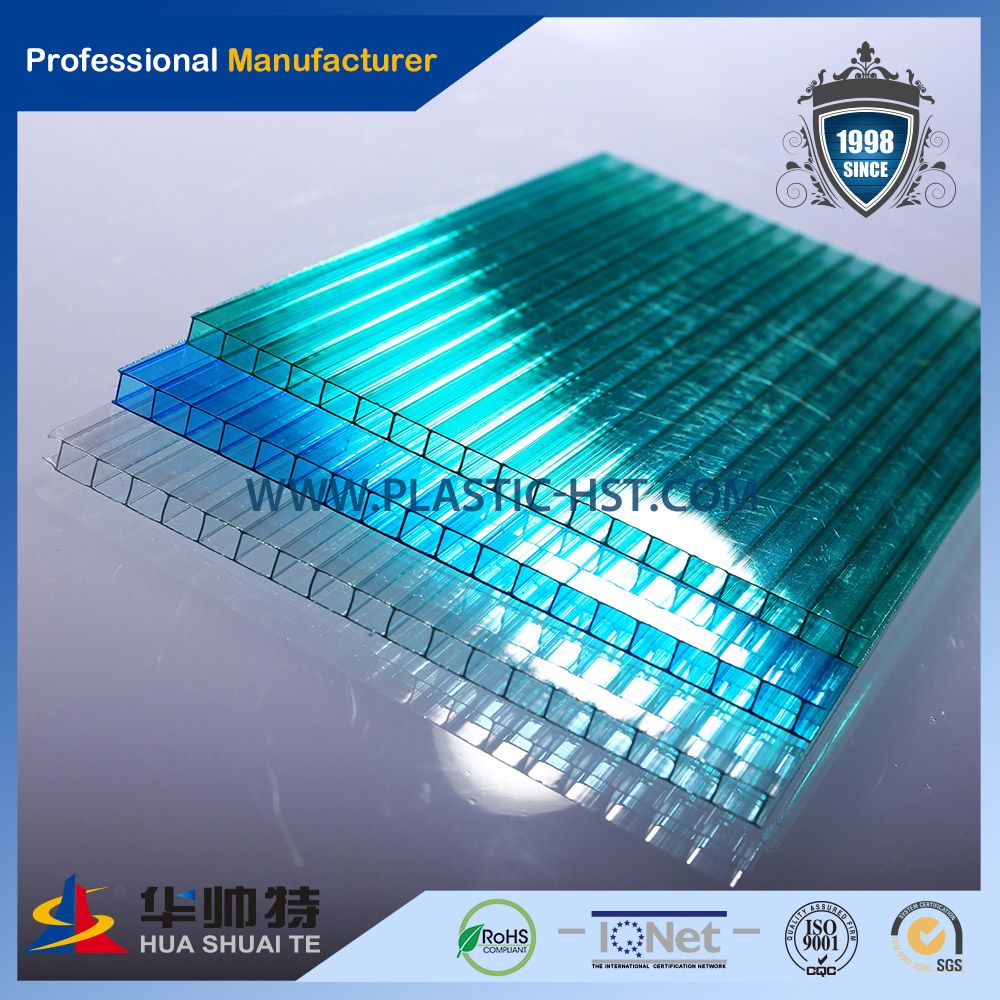

Hot Sell Transparent Polycarbonate Sheet Triple Wall PC Sheet
Company Profile
Haiyan Huashuaite Plastics Electric Appliances Co., Ltd is a professional manufature of varies polycarbonate sheet, acrylic sheet, PVC sheet, Title roofing in China. Our main production includes polycarbonate solid sheet (PC solid sheet), polycarbonate hollow sheet (PC hollow sheet), polycarbonate embossed sheet (PC embossed sheet), polycarbonate sheet, Acrylic sheet (plexiglass, perspex,pmma) and PVC sheet.
Specifications| Thickness(mm) | Structure | Weight(g/sqm) | Min.Bend Radius(mm) | K value
(W/M2K) |
| 4 |
2-layer | 850 | 700 | 4.1 |
| 5 | 1000 | 875 | 3.8 |
| 6 | 1300 | 1050 | 3.6 |
| 8 | 1500 | 1400 | 3.3 |
| 10 | 1700 | 1750 | 3 |
| 6 |
3-layer
| 1400 | 1050 | 3.4 |
| 8 | 1600 | 1400 | 3.2 |
| 10 | 2000 | 1750 | 2.7 |
| 12 | 2100 | 2100 | 2.6 |
| 14 | 2400 | 2450 | 2.4 |
polycarbonate sheet production| Item | Unit | Numerical Value |
| Thickness | mm | 4 6 8 10 |
| Length | mm | 6000 6000 6000 6000 |
| Width | mm | 2100 2100 2100 2100 |
| UV Thickness | um | 50 50 50 50 |
| Minimum Bending Radius | mm | 850 1200 1650 2000 |
| Light Transmittance | % | 82 81 79 78 |
| Impact Test | m/s | >21 |
| Fire Retardant Grade | | Grade B1 |
| Applicable Temperature | ºC | -40~120 |
| Soundproof | dB | 14 16 17 19 |
| Heat Transfer Coefficient | W/(m2K) | 37 35 32 31
|
polycarbonate sheet Application:1) Roof lighting(clear sheet) or sunshade(bronze sheet) for modern construction such as Assembly hall roof,library,auditorium,great hall,department store, hotel, stadium, school, amusement center, hospital, ect.
2) Do-it-yourself(DIY) awning,canopy,lighting for corridors,balcony,passages and subways entries,walkways.
3) greenhouse,gardening material,conservatories
4) Industrial Roofing and glazing
5) In door decoration,office partition,wall material
Features| 1. Light trasmission: up to 85% |
| 2. Impact resistance: 80 times that of glass, 15 times that of acrylic sheeting. |
| 3. Temperature resitance range: -40 to 120 Celsius Degree. |
| 4. Light weight: only 1/12 ofthe weight of glass with same thickness. |
| 5. Ultraviolet resistance: with UV protective layer. |
| 6. Flame resistance: B1 grade |
| 7. Sound and Heat proof |
polycarbonate sheet Application:1) Roof lighting(clear sheet) or sunshade(bronze sheet) for modern construction such as Assembly hall roof,library,auditorium,great hall,department store, hotel, stadium, school, amusement center, hospital, ect.
2) Do-it-yourself(DIY) awning,canopy,lighting for corridors,balcony,passages and subways entries,walkways.
3) greenhouse,gardening material,conservatories
4) Industrial Roofing and glazing
5) In door decoration,office partition,wall material
Established in 1998, Haiyan Huashuaite Plastics Electric Appliance Co., Ltd. is a leading Chinese producer of polycarbonate, PC sheet, PVC foam sheet and PVC profiles. All of our products are manufactured in line with ISO9001, ROTHS and SGS requirements and feature numerous advantages over traditional building materials including age resistance, impact resistance and durability.
Our company employs 250 staff members, including 58 technicians, and has always focused on the application of technology to improve product quality and development. Furthermore, we have 7 imported polycarbonate sheet production lines, 30 PVC profile extrusion lines from Germany and Italy. And 1 cast acrylic sheet line from England.
with quality viewed as the life of our enterprise, we utilize our team of quality inspectors and advanced apparatus to maintain the quality of our products throughout our entire production process. Moreover, our products are currently being used in major projects including Daqing Oil Fields and 2008 Beijing Olympic Games fields and gyms.
Haiyan Huashuaite Plastics Electric Appliances Co., Ltd. Continuously strives to enhance our good reputation whilst perfecting our products, management techniques, processes and level of customer service. If you are interested in any of our products, or are searching for a supplier to fill your OEM order, please contact us to discuss your requirements.
