Product Specifications
| Prod Model: |
HUASHUAITE PC Embossed Sheet |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Part Name: |
Clear Embossed PC Sheet |
| Place Of Origin: |
Zhejiang Province, China |
| Brand Name: |
Huashuaite |
| Type: |
PC Embossed Sheet |
| Color: |
All Colors |
| Maxinum:Width: |
2050mm |
| Length: |
Any Length as Per Customers' Demands |
| Package: |
PE Film on Both Sides, Tape on The Edge |
| Certification: |
ISO9001:2008, RoHS , SGS |
| Warranty: |
10 Years |
| Material: |
PC |
Product Description

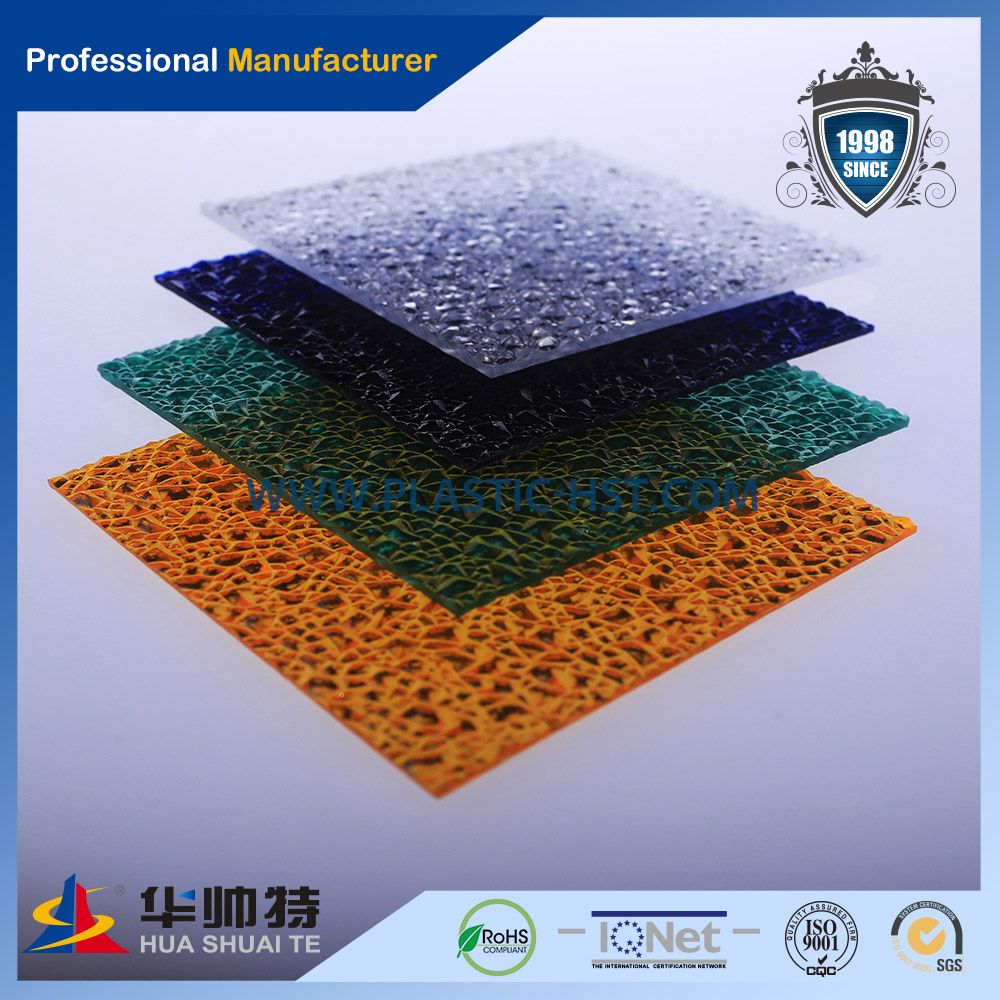

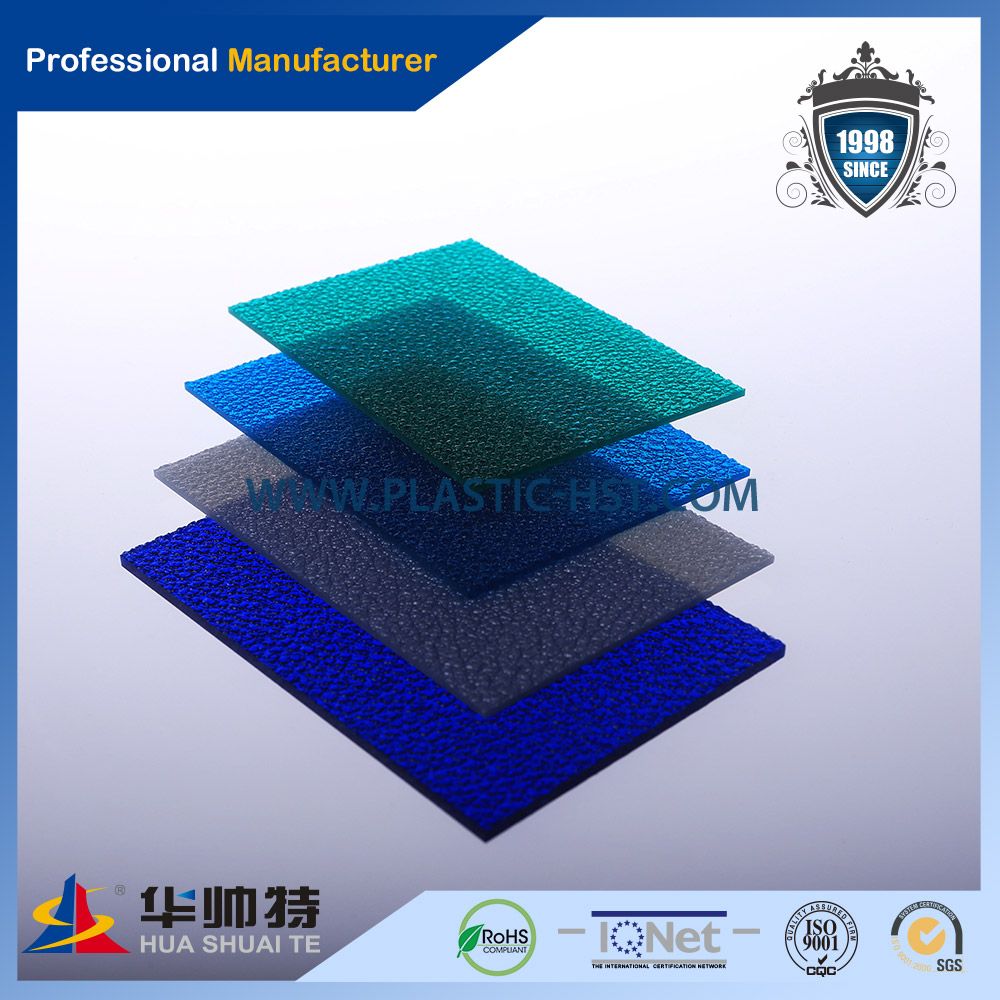

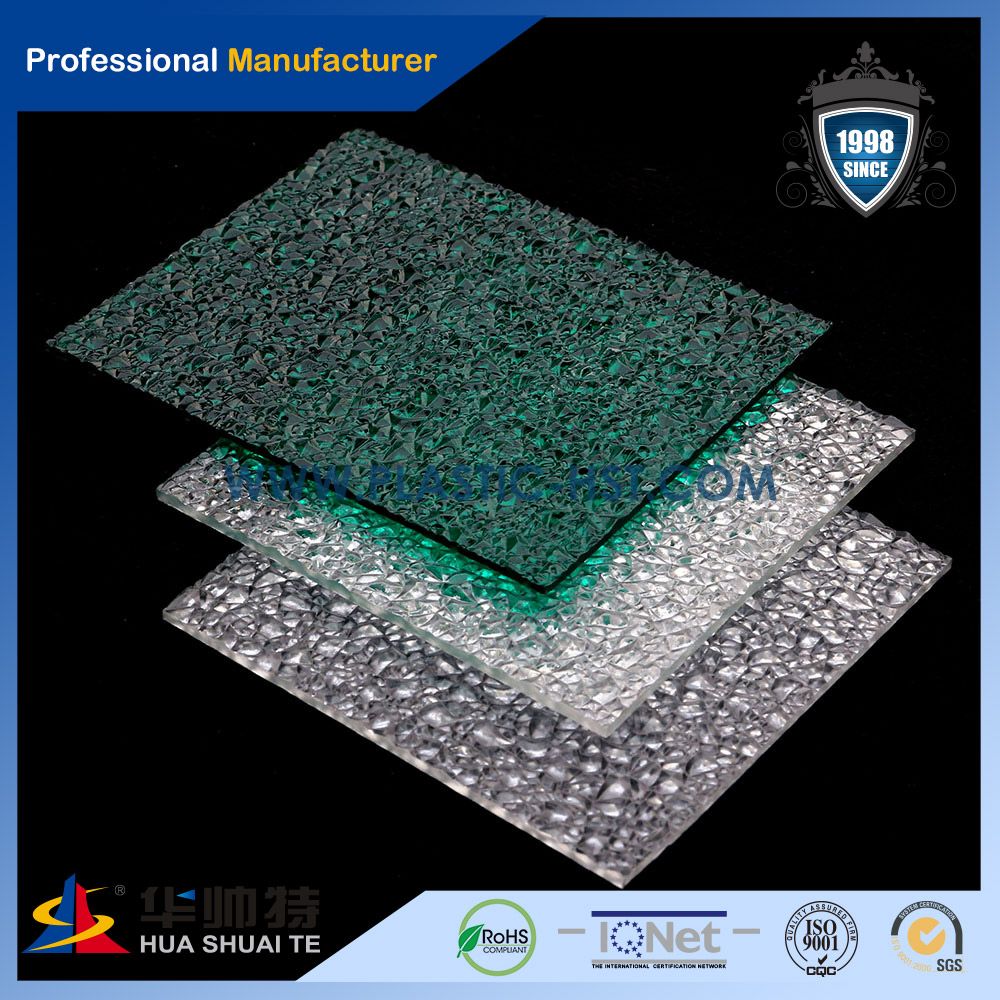

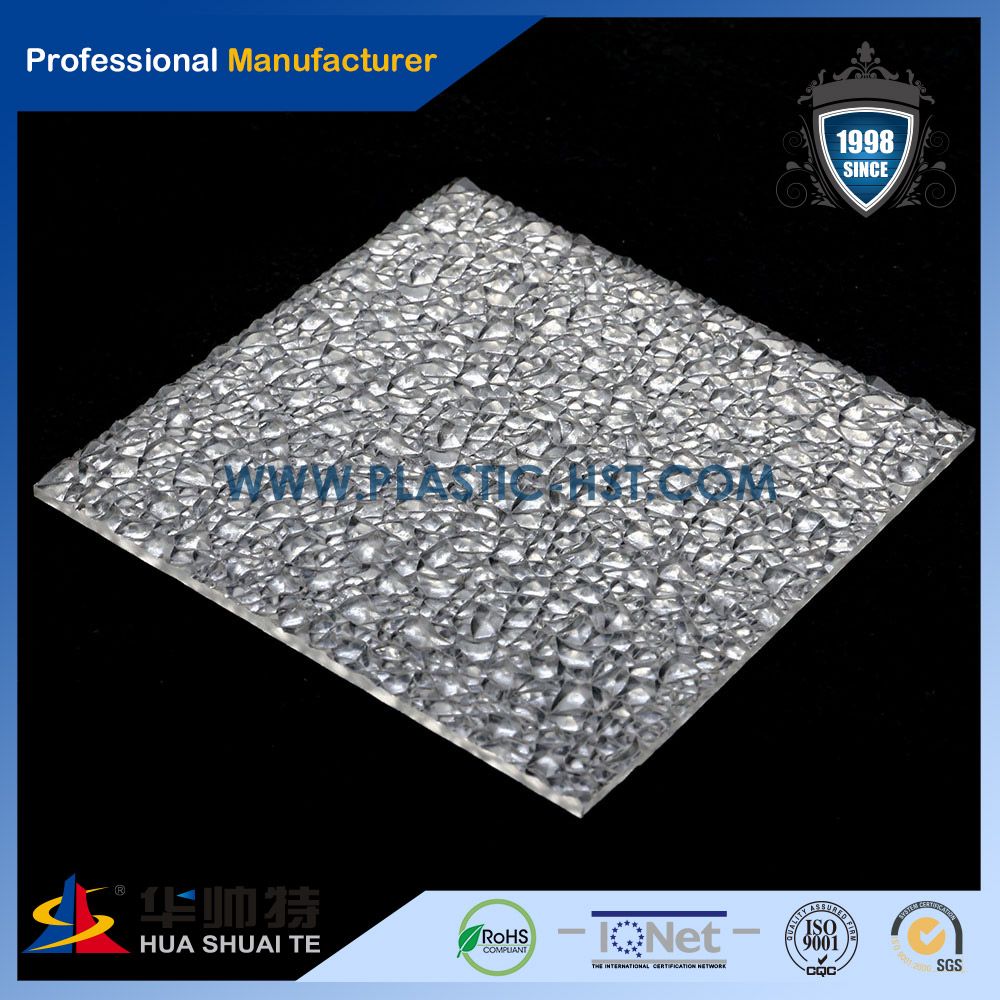

Hot Sell Crystal Corrugated Clear Embossed PC Sheet (PC-E)Specifications:
1) Thickness: 1.8mm-----10mm
2) Maximum width: 2050mm
3) Length: Any dimension
4) Specific gravity: 1.15 kg/m2*mm
5) Color: Clear, blue, green, opal, brown, blue green etc.
Features:
1) Impact strength: The impact strength of solid PC sheets is 250 times that of glass, and the impact strength of hollow PC sheets is 80 times that of glass
2) Light weight: The weight of a solid PC sheet is only about half of glass, and the weight of a hollow PC sheet is only about one twelfth at the same thickness
3) Transparency: The light transmission of a 3mm solid PC sheet is 88%, and the light transmission of a6mm hollow PC sheet is 80%
4) UV-protection: A PC sheet is co-extruded with a high-density ultra violet ray that also keeps the PC sheet from discoloring
5) Resistance to weather: A PC sheet has resistance to bad weather and maintains excellent properties in a wide temperature range from -40 to 120oC
6) Inhibiting condensation: When the outdoor temperature is 0oC and the indoor temperature is 23oC, the PC sheet will be condensation up to 80% humidity
7) Thermal insulation: The K-value of glass is 1.2 times that of solid a PC sheet and is 1.7 times that of a hollow PC sheet. PC sheets saves energy while preventing heat loss
8) Sound insulation: The hollow form and polycarbonate resin offers significant advantage to that of glass
9) Flame Resistance: Through testing by the National Center for Quality Supervision & Testing of Fire Building Materials, the material is rated as Class B1 according to QB8624-1997 standards
10) Easy installation: A PC sheet can be bent while hot or cold and can be used on curved roves and windows. The minimum radius of curvature of a PC sheet is 175 times of its thickness.
| Haiyan Huashuaite Plastics Electric Appliances Co.,Ltd |
| Acrylic Sheet Sizes |
| Thickness mm | Size m L 1.31*2.53 | Size m L1 1.35*2.55 | Size m H 1.44*2.66 | Size m H1 1.44*2.56 | Size m M 2.22*3.22 | Size m M1 2.11*3.11 | Size m Q 1.32*1.93 | Size m R 2.22*2.72 | Size m E 1.60*3.10 | Size m F 1.18*2.56 | Size m N 1.16*3.72 | Size m J 1.66*2.62 | Size m LM Frosted 1.31*2.53 |
| 2 | 1.26*2.47 | __ | __ | __ | __ | __ | 1.27*1.88 | __ | __ | 1.13*2.50 | __ | __ | __ |
| 3-5 | 1.26*2.47 | 1.30*2.50 | 1.38*2.60 | 1.38*2.50 | 2.16*3.16 | 2.05*3.05 | 1.27*1.88 | 2.16*2.66 | 1.55*3.05 | 1.13*2.50 | __ | 1.60*2.56 | 1.26*2.47 |
| 6-9 | 1.25*2.46 | 1.29*2.49 | 1.37*2.59 | 1.37*2.49 | 2.15*3.15 | 2.04*3.04 | 1.26*1.87 | 2.15*2.65 | 1.54*3.04 | 1.12*2.49 | 1.09*3.65 | 1.59*2.55 | 1.25*2.46 |
| 10 | 1.24*2.46 | 1.28*2.49 | 1.36*2.59 | 1.36*2.49 | 2.14*3.15 | 2.03*3.04 | 1.25*1.87 | 2.14*2.65 | 1.53*3.04 | 1.11*2.49 | 1.08*3.65 | 1.58*2.55 | 1.24*2.46 |
| 12 | 1.24*2.45 | 1.28*2.48 | 1.36*2.58 | 1.36*2.48 | 2.14*3.14 | 2.03*3.03 | 1.25*1.86 | 2.14*2.64 | 1.53*3.03 | 1.11*2.48 | 1.08*3.64 | 1.58*2.54 | 1.24*2.45 |
| 15 | __ | 1.27*2.47 | 1.35*2.57 | 1.35*2.47 | 2.13*3.13 | 2.02*3.02 | __ | 2.13*2.63 | 1.52*3.02 | __ | 1.07*3.63 | 1.57*2.53 | __ |
| 20 | __ | 1.26*2.46 | 1.34*2.56 | 1.34*2.46 | 2.12*3.12 | 2.01*3.01 | __ | 2.12*2.62 | 1.51*3.01 | __ | 1.06*3.62 | 1.56*2.52 | __ |
| 25 | __ | 1.24*2.44 | 1.32*2.54 | 1.32*2.44 | 2.10*3.10 | 1.99*2.99 | __ | 2.10*2.60 | 1.49*2.99 | __ | 1.04*3.60 | 1.54*2.50 | __ |
| 30 | __ | __ | 1.30*2.52 | 1.30*2.42 | 2.08*3.08 | 1.97*2.97 | __ | __ | __ | __ | __ | 1.52*2.48 | __ |
| 40 | __ | __ | 1.32*2.53 | 1.32*2.43 | __ | __ | __ | __ | __ | __ | __ | __ | __ |
| 45 | __ | __ | 1.30*2.51 | 1.30*2.41 | __ | __ | __ | __ | __ | __ | __ | __ | __ |
| The sizes above all are for actual using |
|
|
|
|
|
|
|
|
|
|
|
|
Established in 1998, Haiyan Huashuaite Plastics Electric Appliance Co., Ltd. is a leading Chinese producer of polycarbonate, PC sheet, PVC foam sheet and PVC profiles. All of our products are manufactured in line with ISO9001, ROTHS and SGS requirements and feature numerous advantages over traditional building materials including age resistance, impact resistance and durability.
Our company employs 250 staff members, including 58 technicians, and has always focused on the application of technology to improve product quality and development. Furthermore, we have 7 imported polycarbonate sheet production lines, 30 PVC profile extrusion lines from Germany and Italy. And 1 cast acrylic sheet line from England.
with quality viewed as the life of our enterprise, we utilize our team of quality inspectors and advanced apparatus to maintain the quality of our products throughout our entire production process. Moreover, our products are currently being used in major projects including Daqing Oil Fields and 2008 Beijing Olympic Games fields and gyms.
Haiyan Huashuaite Plastics Electric Appliances Co., Ltd. Continuously strives to enhance our good reputation whilst perfecting our products, management techniques, processes and level of customer service. If you are interested in any of our products, or are searching for a supplier to fill your OEM order, please contact us to discuss your requirements.
