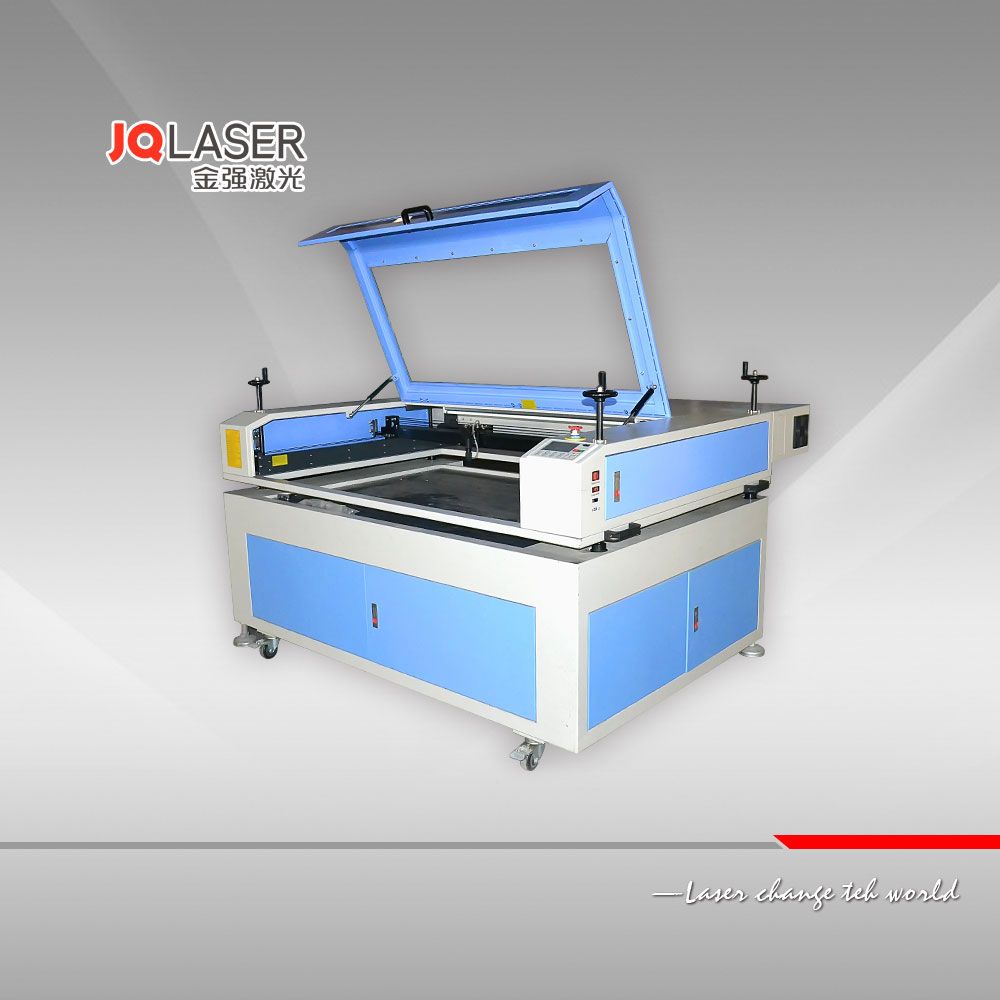

Hot Sale Laser Engraving Machine for Tombstone

Product Specifications

Prod Model:	JQ-1390
Engraving Machine Type:	Laser Engraving Machine Stone Engrave
Laser Power:	80/100/150W
Laser Type:	CO2 Laser
Laser Tube:	Beijing Reci
Cutting Speed:	0-40000mm/Min
Motor:	Stepper Motor
Cooling Type:	Water Cooling
Supported Graphic:	Plt, Ai, BMP, Dst, Dxf
Compatible Software:	Photoshop, Coreldraw, Autocad

Product Description

Machine feature

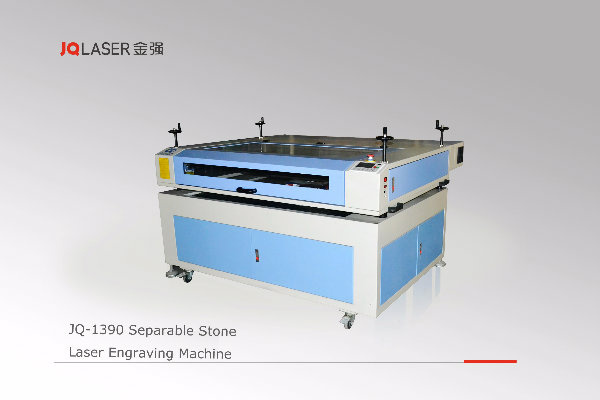

this separable machine is designed for the stone engraving. The upper part and the under part of the machine are separated. The upper part can put on large and thick marbles/stones/granites directly.

JQ-1390 parameter
Product NO	JQ-1060	Linear rail	Taiwan HIWIN
Laser power	80w/100w/150W	Motor mode	stepper motor
Laser type	CO2 laser tube,10.6um	Cooling system	Water chiller CW5200
Working area	1000mm*600mm,1300mm*900mm	table type	up-down worktable
engraving speed	0-70000mm/min	color	blue-white
Cutting speed	0-40000mm/min	Supported graphic format	PLT,AI,BMP,DXF,DST
Locating precision	≤±0.1mm	Compatible software	CORELDRAW,PHOTOSHOP,AUTOCAD
Color separation	Yes	Working voltage	220V/50HZ, 110V/60HZ
Laser output control	1-100% software setting	Working temperature	0-45ºC
laser tube	Beijing RECI	package size	1970*1720*1400mm
Optional parts	honeycomb workable,rotary attachment,red dot  pointer
applicable materials	stone, marble, acrylic, wood planks(light planks),bamboo ware. Double colored boards, paper, leather, shells, coconut shells, oxe horns, resin animal grease, ABS boards, etc.



Product details

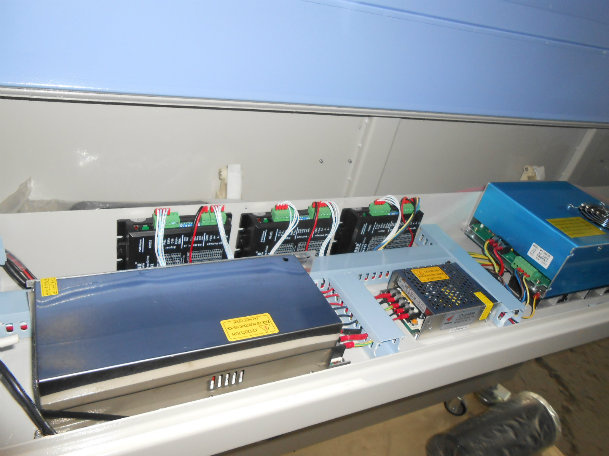

1. Imported stepper motor and drive systems
2. SUNYLASER control system
3. Foreign imports in six balanced linear guide way
4. Dual transmission of USB2.0
5. Chinese LCD, Humanity button panels
6. High quality CO2 laser tube
7. The lens of the optical system is imported form Singapore
8. High strength stainless Rail cellular integration backplane
9. Chassis integration structure
10. Support U-download data

Applicable Industries
Model Industry(construction models,aviation and navigetion models and wooden toys),advertisement,decoration,art crafts,electronics,and electric appliances,etc.
Applicable Materials
Non-metal materials such as acrylic , crystal , plastic , metal coating , painted metal , organic glass , wood planks(light planks) , marble , carton , glass , fabric , leather , bamboo ware , double-color boards , paper , shells , coconut shells , ox-horns , resin animal grease , ABS boards , lamp shade , ect.
Optional parts
1). Up and down work table( makes the machine worktable moves up and down automatically)
2). Rotary attachment. ( engrave cylinders)
3). Red light pointer (make the laser beam visible)
4). USB port ( make the machine work without a computer)

Samples:






 Package and delivery



Warranty and after sale service:

1. CE and FDA certificates, the machines are produced according to satandard.
2. Two years for whole machine except the laser tube and lens, nine moth for laser tube.
3. English software, user manual and detailed videos CD.
4. 24hours internet service by sending emails and videos, communicating online or calling. Door to door service. We have excellent engineers speaking English, they can go to your country to solve your questions of the machine that you can't solve.

About us - Jinan JinQiang Laser CNC Equipment CO., LTD

Workshop & Showroom
Workshop is the product of intense laser manufacturing center gold, bear manufacturing various types of laser equipment. Factory workshop area of 5075 square meters, the plant's existing staff of 46 people, including management staff4, the worshop has three steps, the 10 team composition, with annual production of non-metallic series 4030, 6040, 9060, 1290, 1390, 1490,; cutting 1325, 1525, 1530, 1610, 1630; metal series 1325-YAG, 1325-fiber, 1530-fiber and other conventional and non-standard laser annual output of 3,000 sets of CNC equipment manufacturing capacity.

CE, FDA, SGS, etc
Certification of JQ Machine
JQ laser machine have passed most testing and comply with the international standard. With CE, our machine sell well in Europe; there is no problem to export machine to America with FDA; don't worry about quality, we can show you SGS certificate; if you want import machine to Egypt or some strict countries, we can provide fumigation certificate.


FAQ
1. Q:Are you a factory or trading company?
A: We are a factory

2. Q:Where is your factory located? How can I visit there?
A:Our factory is located in Jinan City, Shandong Province, China, about 4 hours train from Shanghai .
All our clients, from home or abroad, are warmly welcome to visit us!

3. Q:How can I get some samples?
A: We are honored to offer you samples.

4. Q:How does your factory do regarding quality control?
A:Quality is priority. JQ people always attach great importance to quality controlling
from the very beginning to the very end.
Our products has gained CE, FDA authentication.
