Product Specifications
| Prod Model: |
YPO-270 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inner Chamber Size(W*H*D): |
600*900*500mm |
| Exterior Chamber Size(W*H*D): |
1150*1650*740mm |
| Temperature Range: |
Room Temperature 10degrees to 300degrees |
| Temperature Control Accuracy: |
+/-0.3degrees |
| Temperature Uniformity: |
+/-1degrees |
| Temperature Resolution: |
0.1degrees |
| Clean Class: |
Class100,Class1000 |
| Heat Up Time: |
30minutes |
| Power Supply: |
380V |
| Controller: |
Omron E5az Controller |
| Precision: |
High Precision |
| Certification: |
Cns |
| Demoulding: |
Automatic |
| Heating System: |
Electric |
| Function: |
High Temperature Resistance |
| Mould Life: |
300,000-1,000,000 shots |
| Automatic Grade: |
Automatic |
| Condition: |
New |
| Customized: |
Customized |
| Warranty: |
12 Months |
Product Description

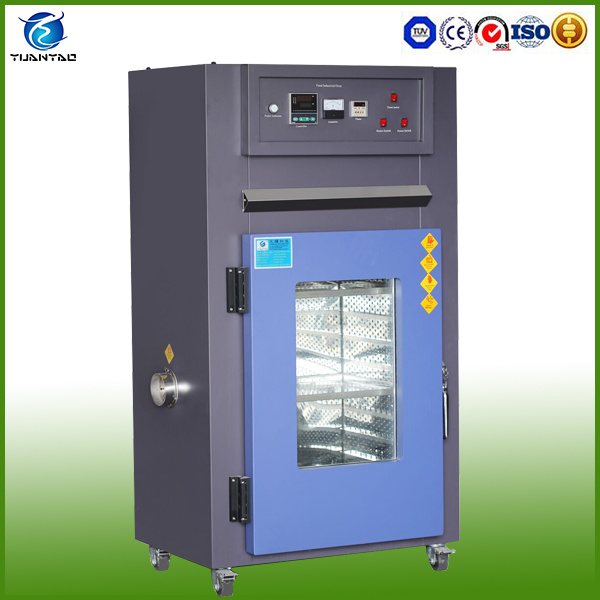

Hot Air Vacuum Industrial Electric Heating OvenBrief introduction & application:
Hot Air Vacuum Oven Tester/Industrial hot oven/Electric heating oven are widely used to test materials
performance in high temperature test condition. It is widely applied to Circuit boards, electronic
component, photoelectric device, electroplating metal, plastic chemical industry, printing industry,
processing coating, ceramic glass and transformer, inductance coil, motor coil baking, drying, aging, etc
Application:
Precise oven or cabinet dryers are mostly used for drying, baking, sterilization of non - volatile items and
heat. Treatment test for mining enterprises, schools, medical and scientific research. Especially for
simultaneously drying of different kinds of polymers in small quantities for drying materials for trial
molding. They can also be applied in electronic engineering, electroplating, and pharmacy, paint baking,
printing industries, etc. For preheating or drying related products.
Features:
1. Application in drying of the products like lithium batteriers, dynamic lithium batteriers, crystal oscillator,
etc, under vacuum conditions.
2. Doors with independent twin channel temperature detectors, and independent heating and vacuumizing.
3. Temperature range: Normal temperature ~ +200C. +200C~400C specifications made to order separately.
4. Vacuum degree: -0.095Mpa~0.1Mpa.
5. Oven wall temperature: <45C.
6. Temperature zones inlaid with high heated-air circulation and uniform heating temperature.
7, Providing a series of stable and reliable precision oven, KOV precise oven inside the box dimension is divided into eight kinds of standard specifications, can meet various requirements.
8, Forced air supply circulation system and the special outlet design to ensure perfect humidity and temperature uniformity.
9, LED digital temperature controller, easy operation and bring you happy customer experience.
10, Air-exhausting Device is optional. Other ultra high temperature oven series can reach 500 º C are available upon customized.
We assure you of our best services at all times.
| Model | YPO-072 | YPO-270 | YPO-480 | YPO-600 | YPO-720 |
| Inner chanber size W*H*D(mm) | 400*450*400 | 600*900*500 | 800*1000*600 | 1000*1000*600 | 1200*1000*600 |
| Exterior chanber size W*H*D(mm) | 750*1100*550 | 1150*1650*740 | 1300*1700*840 | 1500*1750*840 | 1850*1750*840 |
| Temperature Range | Room temperature 10ºC ´ 200ºC(300ºC) |
| Performance | Temperature control accuracy | ±0.3ºC |
|
| Temperature uniformity | ±1ºC |
| Temperature resolution | 0.1ºC |
| Clean class | Class100´class1000 |
| Heat-up time | 30minutes |
| Material | Exterior chamber material | Stainless steel plate+Powder Coated |
| Interior chamber material | SUS#304stainless steel plate |
| Filters | HEPA Filters |
| Insulation | PU & Fiberglass wool |
| System | Wind Circulation | Sirocco fan |
| Heating system | SUS#304 stainless steel high-speed heater |
| Controller | Omron E5AZ controller |
| Other components | cable port(60mm),control status indicator lights,loading shelves(2pcs for free) |
|
| Safety Devices | Overheating circuit-breaker, compressor overload protection, control system overload protection,humidifying system overheating protection, breakdow indicator light |
|
| Power supply | AC380V 60/50Hz |
| Customization | Customization of inner chamber size, temperature & humidity range etc. |
If you have any query, please feel free to contact us, thanks for your time.
