Product Specifications
| Prod Model: |
WSG-SSG0016 |
| Grade: |
High Quality |
| Shape: |
Rectangle |
| Finish: |
Silver |
| Usage: |
Amusement |
| Frame Material: |
Frameless |
Product Description
Product Description
Laminated Smart Glass/ Switchable Privacy Glass / Intelligent Glass
Switchable smart glass is a laminated glass product consisting of a PDLC smart film sandwiched between two layers of glass. The PDLC film is what allows you to change the glass from opaque to transparent.(or dim any where in between)
When electricity is applied to the PDLC smart film the liquid crystals line up, changing the glass from opaque to clear. Conversely when electricity is removed, the liquid crystals return to their normal scattered positions changing the glass back to opaque.
Power Off: LC molecules are arranged in an irregular manner, dispersing light.
Power On: LC molecules are arranged in a regular manner, allowing light to go through without obstruction.
We provide complete Switchable smart glass already with bus bar, customers just directly install to where they wanted. Switchable smart glass has longer life than Self-adhesive smart film, since the PDLC smart film is well protected by glass on both sides. Our switchable smart glass is laminated with tempered glass, finished product more security and safety.
Migo Smart Glass Feature
1) Transparent switchable smart glass
2) Anti-UV: smart glass can block over 90% ultraviolet radiation
3) Soundproof: Smart glass can decrease the noise level reach 35dB
4) Security: Smart glass will not hurt people if it were broken, because the broken glass shards still stick on the PDLC film.
5) Customized smart glass is available
Power Off: LC molecules are arranged in an irregular manner, dispersing light.
Power On: LC molecules are arranged in a regular manner, allowing light to go through without obstruction.
We provide complete Switchable smart glass already with bus bar, customers just directly install to where they wanted. Switchable smart glass has longer life than Self-adhesive smart film, since the PDLC smart film is well protected by glass on both sides. Our switchable smart glass is laminated with tempered glass, finished product more security and safety.
Migo Smart Glass Feature
1) Transparent switchable smart glass
2) Anti-UV: smart glass can block over 90% ultraviolet radiation
3) Soundproof: Smart glass can decrease the noise level reach 35dB
4) Security: Smart glass will not hurt people if it were broken, because the broken glass shards still stick on the PDLC film.
5) Customized smart glass is available
Technical Specifications
| Optical Properties | Visible Light Transmission | ON | >80% |
| OFF | <1% |
| Visual Angle | ON | 150° |
| UV Blocking | OFF/ON | >99% |
| Haze | OFF/ON | 94%/6% |
| Electrical Properties | Operating Voltage | ON | 60VAC |
| Frequencies | ON | 50 to 60Hz |
| Current | 2mA/m2 | 2mA/m2 |
| Response Time | ON==>OFF | 10ms |
| OFF==>ON | 20ms |
| Power Consumption | ON | 5W/m2/hr |
| Specification | Durable Temperature | -30°C to 100°C |
| Life Time | >50000hr |
| Thickness | 4mm+4mm, 5+5mm, 6+6mm |
APPLICATIONS
Corporate boardrooms/ meeting rooms,
Hotel windows,

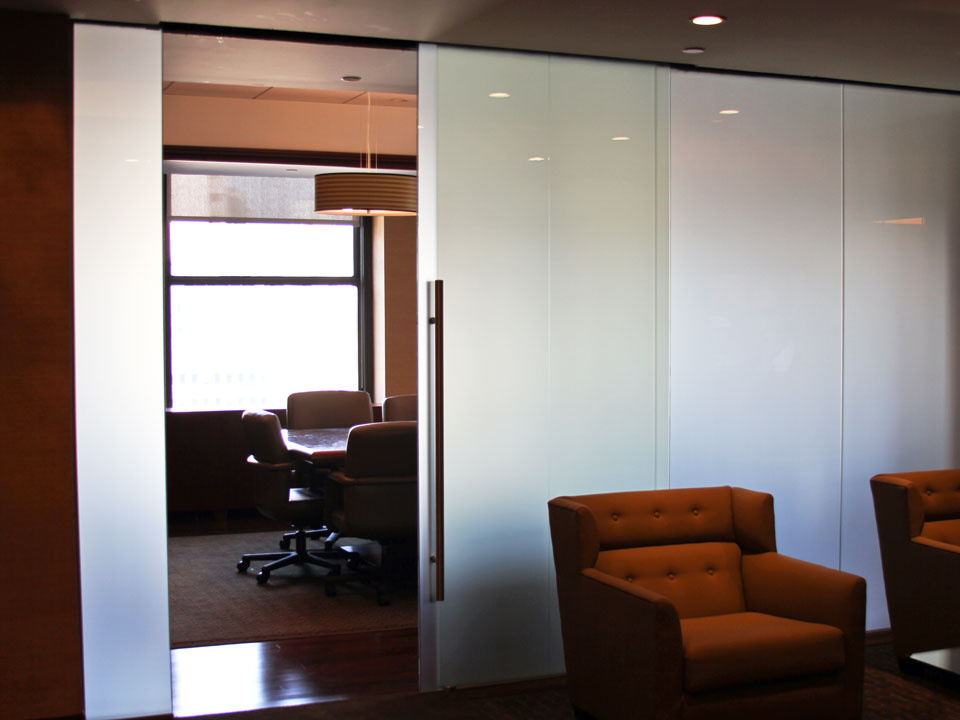

Hospitals,
Residential windows,
Dividing partitions
Shower screens, Conservatories/ sun rooms, Vision panels, Yacht, Museum showcase.
