Product Specifications
| Prod Model: |
CYK160P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Swim Over Bed: |
400mm |
| Max.Swim Over Carriage: |
160mm |
| Max.Length Of Work Piece: |
400mm |
| Max.Size Of Tool Post: |
25*25mm |
| Motor Power: |
7.5kw |
| Spindle Bore): |
195mm |
| Taper Of Spindle Bore: |
42 |
| System: |
Siemens |
| Range Of Spindle Speed: |
50-800rpm |
| Turret: |
Ecectric |
| Guide Rail: |
Horizontal Guide Rail |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Power Source: |
Electric |
| Setting Mode: |
Floor-type |
| Controlling Mode: |
CNC |
| Processing Accessory: |
Chuck CNC Lathe |
| Certification: |
SGS, CE, ISO 9001 |
| Condition: |
New |
| Tool Holder: |
4 |
Product Description
Main feature
CYK160P CNC lathe biggest feature is customized according to customer requirements to increase the spindle hole, the spindle hole can be increased to a maximum Φ160mm (special order to Φ260mm), widely used in petroleum pipelines, plumbing, gas pipelines and other large diameter cutting processing, enabling cylindrical / seal / bore multiple products / grooving / arbitrary cone / sphere and a variety of automatic cutting metric threads, and with a perfect S / T / M function to send and receive multiple signal, automatic control machining program. The CNC lathe adopts mechatronics design, with beautiful appearance, reasonable structure, versatile, easy to operate, easy to operate.
Specification| Items | Specifications |
| Max. swim over bed | Φ400mm |
| Max.swim over carriage | Φ160mm |
| Max.length of work piece | 400mm |
| Range of spindle speed | 50-800rpm |
| Spindle bore | Φ195mm |
| Taper of spindle bore | 42° |
| stations of tool carrier | 4 |
| Max.size of tool post | 25mm×25mm |
| Min.setting unit of motor | (Z) 0.001mm
(X) 0.001mm |
| Moving speed of post | (Z) 6 m/min
(X) 4 m/min |
| Repeatability | (Z) 0.015mm
(X) 0.012mm |
| Motor power | 7.5KW |
| Packing size (mm) | 1900 mm*1200 mm*1950mm |
| Net weight | 1500/1700kg |

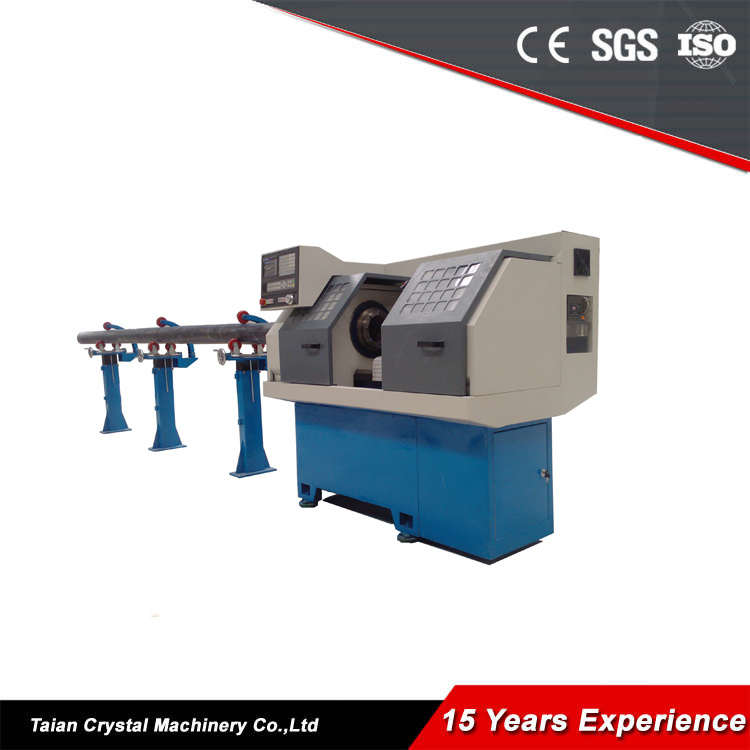

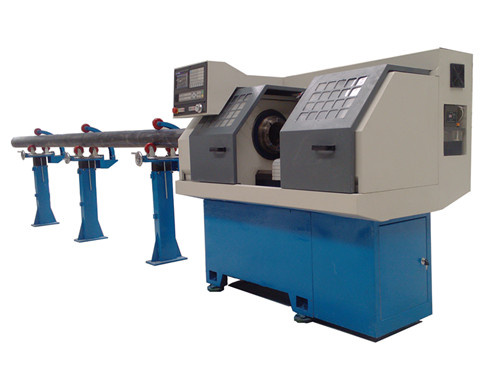

Product display

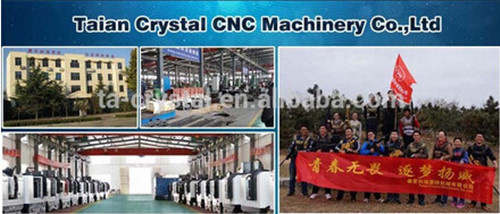

Company informationTaian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC LATHE, CNC MILLING, CNC MACHINE CENTER . With 5,000sqm workshops and offices, we have more than 15 years experiences in cnc machine research and production.Our machines have been exported more than 40 countries.we welcome all customers and friends to come to our company!
Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC machining Center, CNC Lathe Machine, Wheel Lathe machine With 5, 000sqm workshops and offices, we have more than 15 years experiences in CNC machine research and production. Our machines have been exported more than 40 countries. We welcome all customers and friends to come to our company!
Our team have great experience on manufacturing and exporting. Our service department has experienced technicians that can offer you answers to your technical questions, and in many cases, solve your problem effectively over the phone.
We are dedicated to provide customers with the best, highly value added machines. We have earned a strong reputation in design and manufacturing of a wide variety of CNC machine tools. We continuously improve the performance level of our machines, strengthen our quality control system, and offer worldwide support services. Our dedication to the global marketplace will create a new era of CNC machine tools.
Furthermore, we are serious about quality, customer input, and reacting to market demands. Our fully equipped quality control department performs the final inspection of the machine and in process inspection of parts. Our quality control personnel are well trained to conduct rigorous inspections by using precision, sophisticated instruments. We deeply believe that quality is the life of our company and customer service is the power that drives our company forward. We are also looking for cooperation with professional dealers in the world. This would make us to create a new opportunity in certain area and offer top service quality as we have in China.
