Horizontal Cryogenic Liquid Natural Gas Cylinder 499L-3.45MPa

Horizontal Cryogenic Liquid Natural Gas Cylinder 499L-3.45MPa
Price: US $ 4250-4650/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Money Gram

Product Specifications


Prod Model: DPW650-499-3.45
Empty Vessel Net Weight: 485 Kg
Pressure Level: Medium Pressure (',1.6MPa≤p<10.0MPa)
Condition: New
Storage Medium: LNG

Product Description

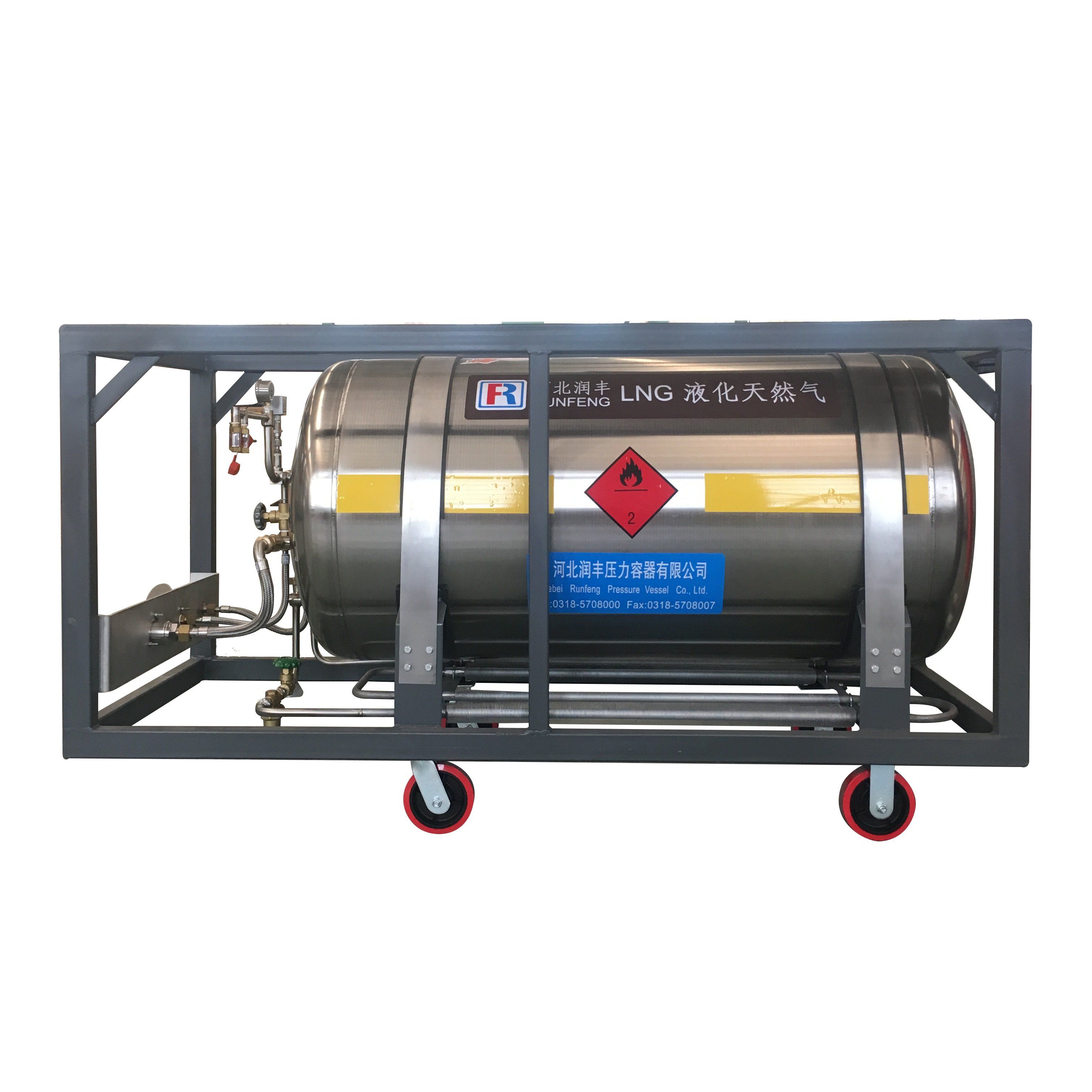

Horizontal  Cryogenic Liquid Gas Cylinder

Product Description
Horizontal liquid cylinder is multi-layer heat insulated removable cryogenic liquid vessel, to store, transport the liquefied oxygen, argon, nitrogen, carbon dioxide. It can be applied to the plant of gas supply, smarller pipeline concentrates gas supply.

 Welded Insulated Cylinder (Horizontal)

ITEM

MP Series

Model

DPW-410-1.59

DPW-499-1.59

Dimension(O.D. × Height )        mm

(Frame)2120×762×1070

Nominal Volume                         L

410

499

Effective Volume                        L

377

459

Empty Vessel Weight              (Kg)

346

365

Service Pressure                     Mpa

1.59

Setting Pressure of Safety Device Mpa

Filling LNG, first class safety valve setting pressure:1.9, second class valve pressure:2.41
Filling LO2/LN2/LAr,,safety valve setting pressure :1.9, Burst pressure of bursting disc:2.4

Filling Medium

LNG



LNG

LO2

LN2

LAr2



Max. Filling Weight                 kg

160



196

478

334

585



Standard Volume                   Nm3

225



276

335

266

323



Normal Evaporation Rate      %/d

LN2≤1.82

LN2≤1.7

Liquid Level Gauge

Capacitive

Surface Treatment

Polish

Application

Used for the glass industry, oxygen enriched combustion, metal cutting and welding, hospital medical, fishing truck using,gas replacement for vessels and pipelines, medical refrigerants, gas protection for stainless steel thin sheet metal cutting, gas protection for metal welding and processing, also used for city public facilities and civilian domestic gas and coal to gas boiler combustion.




 Welded Insulated Cylinder (Horizontal)

ITEM

MP Series

Model

DPW-499-2.5

Dimension(O.D. × Height )               mm

(Frame)2120×762×1070

Nominal Volume                               L

499

Effective Volume                              L

459

Empty Vessel Weight                      (Kg)

430

Service Pressure                             Mpa

2.5

Setting Pressure of Safety Device   Mpa

Filling LNG, 1 class safety valve setting pressure :2.86, 2 class valve pressure:4.15
Filling LO2/LN2/LAr,,safety valve setting pressure:2.86, Burst pressure of bursting disc:3.6

Filling Medium

LNG,LO2 , LN2 ,LAr, LCO2

Max. Filling Weight                          kg

196   478   334   585   460

Standard Volume                            Nm3

276   335   266  323  250

Normal Evaporation Rate               %/d

LN2≤1.7

Liquid Level Gauge

Capacitive

Surface Treatment

Polish

Application

Used for metal welding and cutting,gas replacement for vessels and pipelines,medical refrigerants,gas protection for midium-thickness stainless steel sheet metal cutting,gas protection for metal welding and processing,also used for city public facilities and civilian domestic gas ,coal to gas boiler combustion,refrigerant business and mine cracking equipment.






 Welded Insulated Cylinder (Horizontal)

ITEM

MP series

Model

DPW-410-3.45

DPW-499-3.45

Dimension(O.D. × Height )      mm

(Frame)2120×762×1070

Nominal Volume                         L

410

499

Effective Volume                        L

377

459

Empty Vessel Weight            (Kg)



485

Service Pressure                   Mpa

3.45

Setting Pressure of Safety Device
Mpa

Filling LNG, 1 class safety valve setting pressure :4.15,
2 class valve pressure:4.5
Filling LO2/LN2/LAr2/LCO2,safety valve setting pressure:4.15, Burst pressure of bursting disc:5.17

Filling Medium

LNG



LNG

LO2

LN2

LAr2



Max. Filling Weight                   kg

160



196

478

334

585



Standard Volume                  Nm3

225



276

335

266

323



Normal Evaporation Rate       %/d

LN2≤1.82

LN2≤1.7

Liquid Level Gauge



Capacitive

Surface Treatment



Polish

Application

Used for metal welding and cutting,gas replacement for vessels and pipelines,medical refrigerants,gas protection for midium-thickness stainless steel sheet metal cutting,gas protection for metal welding and processing,also used for city public facilities and civilian domestic gas ,coal to gas boiler combustion,refrigerant business and mine cracking equipment.

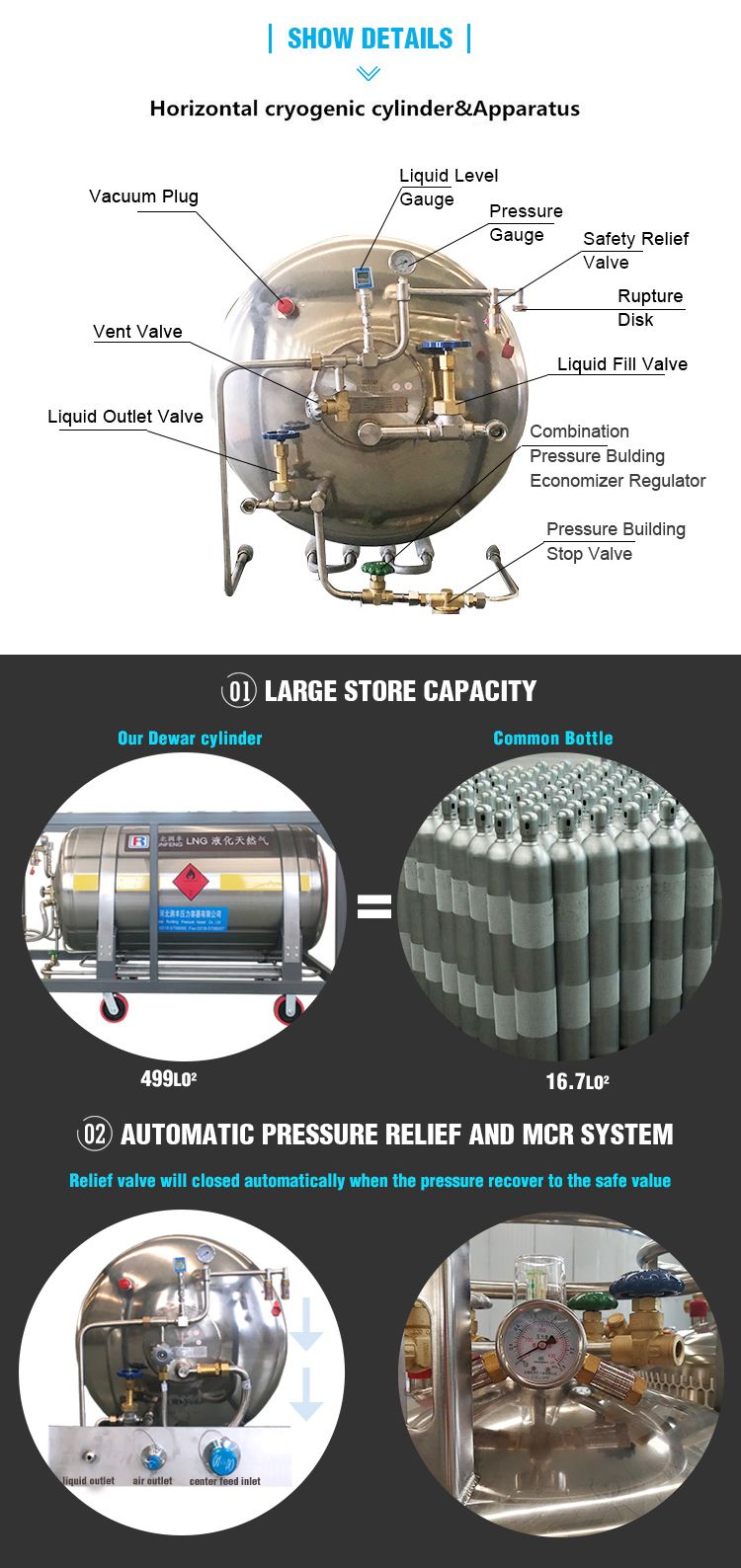

SHOW DETAILS




PRODUCTION PROCESS

PRODUCT APPLICATION




Company Information

Our focus is cryogenic pressure vessels, dewar, LNG station equipments, industry gas equipment system products, Runfeng is famous for design and manufacture of highly engineered cryogenic equipment used from the beginning to the end in the liquid gas supply chain.our domestic operation located in china and our products are most welcomed in Russia and Southeast Asia countries. Our tagline is become your lifelong trustworthy and honest supplier





FAQ

1. Pressure in the container is low.

    Recommended Activity: 1) Refer to the instruction manual and use according to
                                               the recommended maximumgas withdrawal rate and
                                               supercharging capacity

                                           2) Open pressure building regulator or pressure building valve

2. The cylinder is filled but no pressure display

   Recommended Activity:  1)Change the pressure gauge

                                           2)change the rupture disk

                                           3)Repair or replace the valve

3. The bottom of container covered with  spiral frost

  Recommended Activity:  It is normal

4. The top of container covered with frost

   Recommended Activity:1)Check the leakage of the liquid level gauge connection, replace                                                           the seal washer, re-install and do air tight test after the pressure
                                              is empty.

                                         2) Tighten joint and do air tight test
