Holylaser CO2 Nometal Laser Marking Machine (HSCO2-60W)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW,others |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Product Specifications
| Prod Model: |
HSCO2-60W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Marking Scope: |
70*70,110*110,175*175,300*300(Optional) |
| Marking Speed: |
7000mm/S |
| Cooling: |
Air Cooling&Water Cooling |
| Size For The Machine: |
920*1050*1160mm |
| Marking Style: |
Plane/3D Rotary |
| Type: |
Electrical Etching Machine |
| Object: |
Plastic |
Product Description

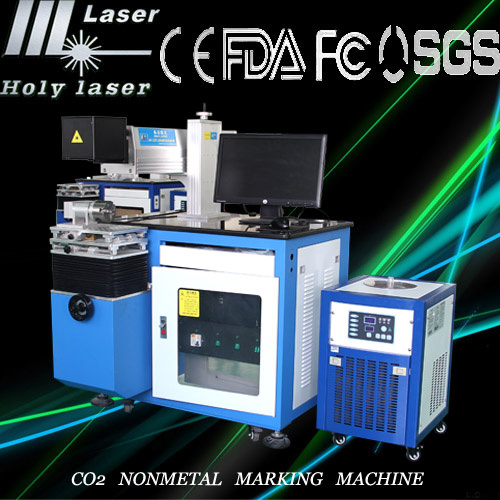

CO2 Nometal Marking Machine HSCO2-60W
Description for CO2 Nometal Marking Machine HSCO2-60W :
CO2 laser marking machine is a gas laser machine whose
frequency band wave length of infrared light is 10.64nm, CO2
gas is filled in the discharge tube as the medium to produce laser,
when high voltage is added to the electrode, it will produce glow
discharge in the discharge tube and then the gas molecule will
discharge laser, after the energy of laser is strengthened it will
form the laser beam to produce.Then the computer controlled resonance mirror can change the path of the
laser beam so that automatic marking can be accomplished.
Applicable Industry
CO2 laser marking machine can mark a variety of non-metal materials. Widely Used in clothing accessories, medicine packaging, building ceramics, beverage packaging, rubber products, shell nameplates, craft gifts, electronic components, leather and other industries.
Applicable Materials
Nonmetal laser marking machine can mark on
Wood, bamboo, jade, marble, orangic glass, crystal, plastic products, garment, paper, leather, textile, rubber, ceramic, glass and other nonmetal materialsMachine Feature:1.All laser source coherent is imported from USA .
Low power consumption, cost effective and long lifespan,
convenient to maintenance.
2.Stable laser output and good beam quality
3.Support DXF, BMP, PCX, JPG, common vector and bitmap
graphics, date marking supporting, serial number, bar code, letter, 2D code, incrementing serial No., automatic jump codes, etc.
4.Cooling way: Two kind of cooling: Low power with
air cooling, high power with water cooling.
5.Rotary clamps for engraving: Can engrave not only
sheets, but also roll materials and cylinders such as pencil
case, flute, bottle and so onSamples Marking by the Machine:
Factory Profile:
1.Supported by the Yiwu City government
2.Cooperate with the Zhejiang University, update for technology
3.We are the manufacturer, our price are more competitive.
4.With 13 years history on researching and producing all kind of laser machine
5.Our company welcomes AGENTS all over the world
Technical Parameter:
Marking scope: 70*70, 110*110, 175*175, 300*300mm
Response time 0.8ms
Extender lens optional
Laser wavelength 10.64nm
Output power 30W/55W/100W/150w
Min. Line width 0.1mm
Marking speed ≤ 7000mm/s
Repeatability precision ± 0.01mm
Marking depth ≤ 5mm
Mini. Character 0.01mm
Pulse frequency 20khz
Weight 100kg
Marking style plane
Cooling: Water coolingCertificate and Our Factory Center:
After-sale service:1.One year guarantee period for product quality.
(man made damaged is negotiable).
2.Lifelong maintenance and spare parts supply.
3.Free design of fixtures as customers required.
4.Free training for machines installation and operation of the staffs.
5.Free samples marking of customer provided.
Warmly welcome you visit our factory!
Warmly welcome you contact us directly for more information!
|
marking scope |
70*70,110mm*110mm, 300mm*300mm |
|
Cooling Style |
Water Cooling |
|
Net Weight |
100kg |
|
Response Time/Extender Lens |
0.8ms/Optional |
|
Marking Style/Laser Wavelength |
2d, 3D/ 10.6nm |
|
Marking Linear Speed |
≤ 7000mm/S |
|
Frequency of Pulse |
20kHz-80kHz |
|
Repeat Precision |
± 0.001mm |
Zhejiang Holy Laser Technoloy Co., Ltd, is a factory Located in YiWu City, ZheJiang Province. We specialize in: 3D laser machine, Large size glass engraving machine, Laser marking machine, Laser cutting machine, etc.
We are here because we are qualified for serving you by the bellow advantages:
1, We can supply machine in 7-10days once you confrim the order.
2, We supply complete service: Machine, design, crystal and LED base factory info. Design for free, technology support for all liftime, training for free.
3, We have our own factory garden that more than 1600squre meter. Wihch suport by government in yiwu economic development zone.
4, All our productions with CE, FCC, FDA, SGS, TUV certification s. Cause suitable for all city in the world.
5, We also have our son desiner team which have more than 15 years experience. Can supply you 2D or 3D desing with your special photo or supply beautiful design in tock.
You are always welcome to visit our factory in any time, , you are here not just our customer, most important is we are friends.
