Product Specifications
| Prod Model: |
CSW03-A3L |
| Markets: |
North America,South America,Eastern Europe,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
A3 Landscape(Customized Sizes Are Available) |
| Power Source: |
AC |
| Electric Current Type: |
DC |
| Input Voltage: |
12V |
| Emitting Color: |
White |
| Life: |
50,000hrs to 100,000hrs |
| Type: |
Ultra Slim Light Box |
| Usage: |
Advertising |
| Material: |
Acrylic |
| Shape: |
Rectangle |
| Suitable For: |
Indoor |
| Installation: |
Wall-Mounted |
| Pringting Carrier: |
Inkjet Film |
| Style: |
Modern |
| Certification: |
UL |
Product Description

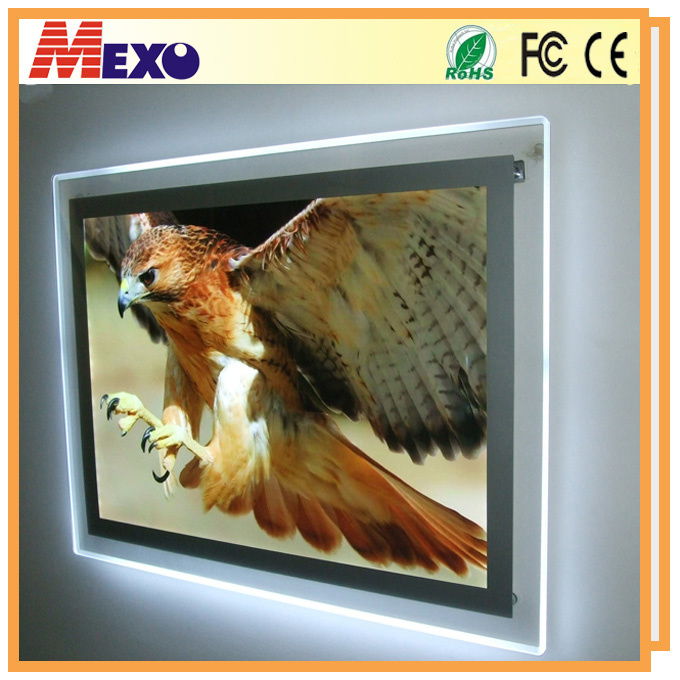

Wall-Mounted Magnetic Open LED Crystal Advertising Light Box, super slim, minimum 6mm only, wall mounted, magnetic open, easy to install and change posters. Widely used for advertisement display, menu board, house decoration.
Feature
LED super slim single sided magnetic open light box
Detailed product description
Model: CSW03-A3L
Type: Single-side
Change picture: Magnetic open, easy for changing pictures
LGP: New optic quality acrylic sheet, with latest CNC engraving DOT matrix
Cover: 2-3mm quality acrylic sheet
Back board: Plastic board
Thickness: 8mm
Size: A4, and can be customized
Frame color: Silver, black and can be customized
Light source: High brightness pure white SMD LED lights strip
Light power: Input: AC Voltage 110-240V, output: DC Voltage 12V adapter
Low carbon: Low heat, no noise, safe and energy saving
Power consumption: Depend on the size
Brightness: 5000-17000LUX
Uniformity: Built-in LGP edge-lit, in addtion to reflecting film and diffusion barrier designed, uniform lighting
Environmentally friendly: No mercury, environmental protection, materials can be recycled
Energy-saving: LED light is energy-saving 80% than the fluorescent light
Installation: Mount on the wall
Picture type: UV light picture, album light picture
Applications: Indoor
Advantage:
1. The lightbox adopts side-guide lighting design, using newest optic quality acrylic panel, which distributes light evenly
2. SMD LED lights as light source, high brightness and low power consumption.
3. LGP is adopted CNC engraving technology, which longer life span and distributes lighting evenly.
4. Use high quality LED light source with effective protection on image which avoid yellowing with age and getting longer life span.
| Category | Crystal Acrylic LED Light Panel |
| Item No. | CLP01-A1 | CLP01-A2 | CLP01-A3 | CLP01-A4 | CLP01-A5 |
| Display Proposal | Horizontal |
| Picture Size (mm) | 840*594 | 594*420 | 420*297 | 297*210 | 210*148 |
| Visual Size (mm) | 835*589 | 589*415 | 415*292 | 292*205 | 205*143 |
| Frame Size (mm) | 955*709 | 689*515 | 505*382 | 377*290 | 280*218 |
| Thickness (mm) | 7 | 7 | 7 | 7 | 7 |
| Packing Size (mm) | 1000*770*90 | 730*560*90 | 570*460*90 | 430*340*90 | 330*268*90 |
| Gross Weight (kg) | 11 | 5.3 | 3.1 | 2 | 1 |
| Cubic Weight (kg) | 14 | 7.5 | 5 | 2.5 | 2 |
| Lighting Proposal | Double Long Edge | Double Long Edge | Double Short Edge | Single Long Edge | Single Short Edge |
| Power Source | Input AC ~110-240V, Output 12V Power Adaptor |
