Product Specifications
| Prod Model: |
JX11B-6S,JX14B-6S,JX17B-6S,JX19B-6S,JX19B-6SL,JX24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Green |
| Processing Object: |
Metal |
| Molding Style: |
Forging |
Product Description

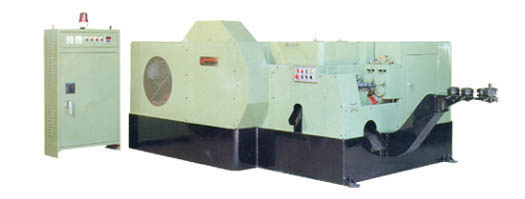

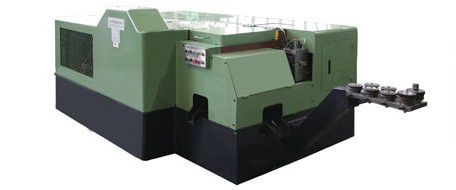

Nuts making machine, it can maily make the nuts, and different type nuts. It can finish the products in one time. So it is energy saving and high productivity and easy use.
Our machine in China can be say the leading machine. And best price.
Production items:
Extra thick nut, flanged nut, motorcycle link pin, oil plug screw, hex socket lockup nut, squire nut, weld nut, cap nut, blind nut, chain roller, expansion anchor, bicycle and motorcycle shaped spare parts, and so on.
We have exported these machines to India, and we have service center in India, so we can provide you the best after-sale service.
For anything of the machine, please feel free to contact me.
Crystal
Hope to cooperate with you.
For any questions,pls feel free to contact me
For the details of the machine, please check the form.
JX series mainly produce 3die 3 blow, 4 die 4 blow, 5 die 5 blow, 6 die 6 blow multi station heading machine, boltmaker machine including thread rolling unit and tapping machine. The machine has high dfficiency and consequently used to produce various fasteners, nonstandard products for automobile, motorcycle, bicycle and basically machinery work piece. Also produce nonstandard-machine in accordance with special requirement
| Model | JX11
B-6S | JX11
B-6S-L | JX14
B-6S | JX14
B-6S-L50 | JX14B-
6S-T50 | JX14B-
7S-L50 | JX17B-
6S | JX17B-
6S-L50 | JX19
B-6S | JX19B-
6SL-50 | JX24B-
6SL-70 |
| Forging Station | 6 | 6 | 6 | 6 | 6 | 7 | 6 | 6 | 6 | 6 | 6 |
| Max. forging Dia. (mm) | 8-12 | 8-12 | 12-15 | 12-15 | 12-15 | 12-15 | 13-17 | 13-17 | 20 | 20 | 25 |
| Max. cut off dia. (mm) | 11 | 11 | 15 | 15 | 15 | 15 | 17 | 17 | 19 | 19 | 24 |
| product dia. | M4-M6 | M4-M6 | M6-M8 | M6-M8 | M6-M8 | M6-M8 | M8-M10 | M8-M10 | M10-M12 | M10-M12 | M12-M16 |
| Max. forging length (mm) | 13 | 25 | 16 | 45 | 30 | 45 | 45 | 45 | 25 | 50 | 70 |
| Die pitch (mm) | 50 | 50 | 60 | 60 | 60 | 60 | 70 | 70 | 80 | 80 | 100 |
| Main slide stroke (mm) | 50 | 64 | 60 | 160 | 60 | 160 | 160 | 160 | 100 | 162 | 200 |
| output (pcs/min) | 120-240 | 120-240 | 85-170 | 70-100 | 70-100 | 70-100 | 85-165 | 70-100 | 100 | 85 | 85 |
| main motor | 15HP | 15HP | 20HP | 40HP | 40HP | 40HP | 40HP | 40HP | 40HP | 50HP | 74HP |
| appr. weight (kgs) | 4000 | 4500 | 7500 | 8500 | 7500 | 9000 | 10000 | 10000 | 13000 | 15000 | 20000 |
