Product Specifications
| Prod Model: |
flc1490 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
| Condition: |
New |
| Automation: |
Automatic |
| Type For Cutting Machine: |
Laser Cutting Machine |
| Application: |
Machinery & Hardware, Textiles |
| Laser Power: |
90W/100W/130W/150W |
| Working Area: |
1400*900mm |
| Max Cutting Speed: |
30, 000mm/Min |
| Max Engraving Speed: |
64, 000mm/Min |
Product Description

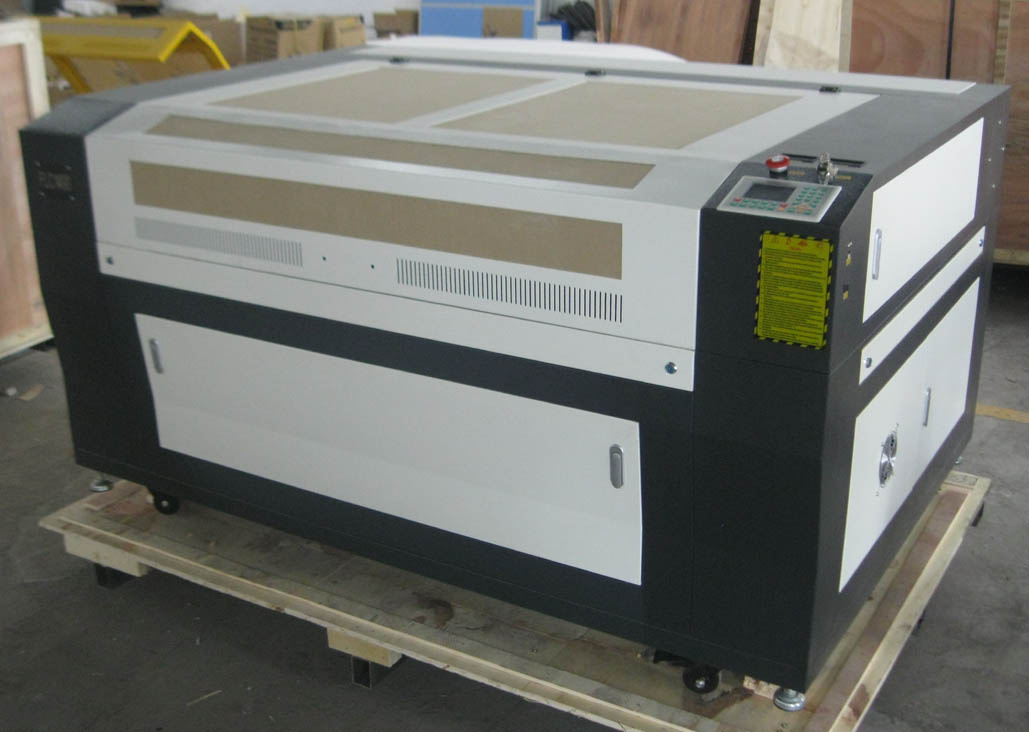

High Speed CO2 Laser Cutting Machine for Acrylic, Wood, Leather (FLC1490)
China leading manufacturer for laser cutting machine

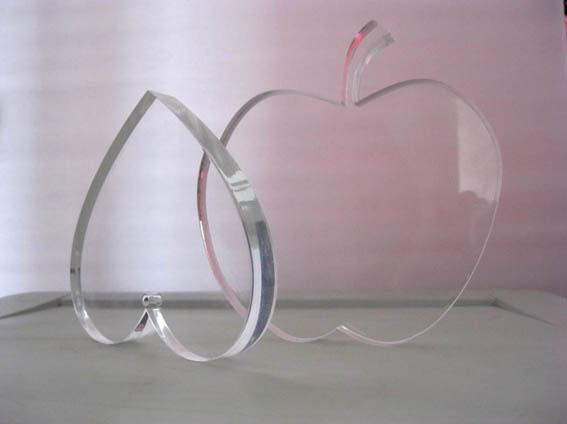

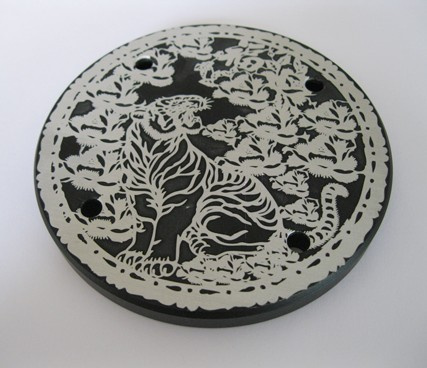

Applicable Industries: Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc. Applicable Materials: Non-metal materials such as double color boards, acrylic, glass, wood planks, bamboo, rubber, plastic, garments, paper, leather, marble, granite, tiles and etc...
Special Features:1) Materials can extend through the front and rear doors to allow for a larger work product.
2) Following LED Work light to help see products during laser processing.
3) Red-Dot pointer to help you see the expected laser beam position.
4) AutoFocus touch sensor to easily set the right height for best engraving and cutting.
5) Parts tray for removing small parts or scrap from under the workbed.
6) Fully enclosed laser case yields a class I (user friendly) laser product.
|
Model |
FLC1490 |
|
Laser-type |
10.6um CO2 glass laser tube w/ water-cooling |
|
Laser power |
90W/100W/130W/150W |
|
Working area |
1400 x900mm |
|
Max Engraving speed: |
0-64, 000mm/min |
|
Max cutting speed |
0-30, 000mm/min |
|
Laser output control |
1-100% software setting |
|
Location precision |
Less than 0.01mm |
|
Highest scanning precision |
2500DPI |
|
Operating temperature |
0 - 45 |
|
Operating humidity |
5- 95% non-condensing |
|
Minimum shaping character |
English 1.0 x 1.0mm |
|
Graphic format supported |
HPGL, JPEG, BMP, PLT, DST, DXF, and AI ... |
|
Driving system |
Stepper(Optional: Servo) |
|
Cooling mode |
Water-cooling and protection system |
|
Auxiliary equipments |
Exhaust-fans, air-exhaust pipe, air pump, water pump |
|
Controller |
DSP |
|
Compatible Software |
CorelDraw, AutoCAD, Photoshop, TAJIMA |
|
Slope Engraving |
Can be easily designed within the "Grade Engrave" function. |
|
Color separation |
Uses color property to set function, speed, and laser power |
Flying Technology Development Limited. Was established in 2008. We are well known for our superior quality and service in the field of engineering and manufacturing of Laser Equipment and CNC Router that includes: Laser Engraving and Cutting Machine, CNC Router, CNC plasma cutting machine, Acryling Bending machine, Cutting Plotter, and so on.
Our company is the modern enterprise in combination with resarching, producing and selling, have excellent engineers, technical experts, etc. Each product has its enterprise standard. All of them have the strict quality testing departnment detection, complete with product standards. The product passed the European Union CE authentication and American FDA certificate, the products are sold in eighty countries. Most of the m- aterials which the product use for imported steel and electrical devices, true material anticipates, worth of the money. The employee of our company is very rigorous, serious and responsible. The product from design to production, every link excellence, plus factory's strict inspection so that making the product has excellent quality and minimum malfunction probalility.
Our company is famous for high quality and better after-sale service as the competitive price. Our products are widely used in the following industry, such as Woodworking, Advertising, Artmaking, Model, Electric, CAD/CAM Industry Model, Clothing, Package Printing, Marking, Laser Sealing and so on.
We are searching the distributors around the world. Hope we can cooperate for the world market.
